Multi-Purpose Metal Working Pliers

(1 review) Write a Review
UPC:
679352006628
MPN:
PG634
Minimum Purchase:
1 unit
$11.61 - $25.00

Description

Strong Hand Tools® Multi-Purpose Pliers (Select Clamp Size From Options Above)

Part # SHT-PG622 SHT-PG634 SHT-PG114 SHT-PG134
Over All Length 6" (150mm) 8-1/2" (216mm) 11" (280mm) 13" (330mm)
Throat Depth 2" (50mm) 3" (76mm) 3-1/2" (89mm) 5-1/2" (140mm)
Opening 2-1/2" (64mm) 4" (100mm) 4" (100mm) 4" (100mm)
Thread Pattern M8 M8 3/8"-16 3/8"-16
Weight 0.5 lbs (0.2kg) 1.0 lbs (0.5kg) 3.0 lbs (1.4kg) 3.6 lbs (1.6kg)

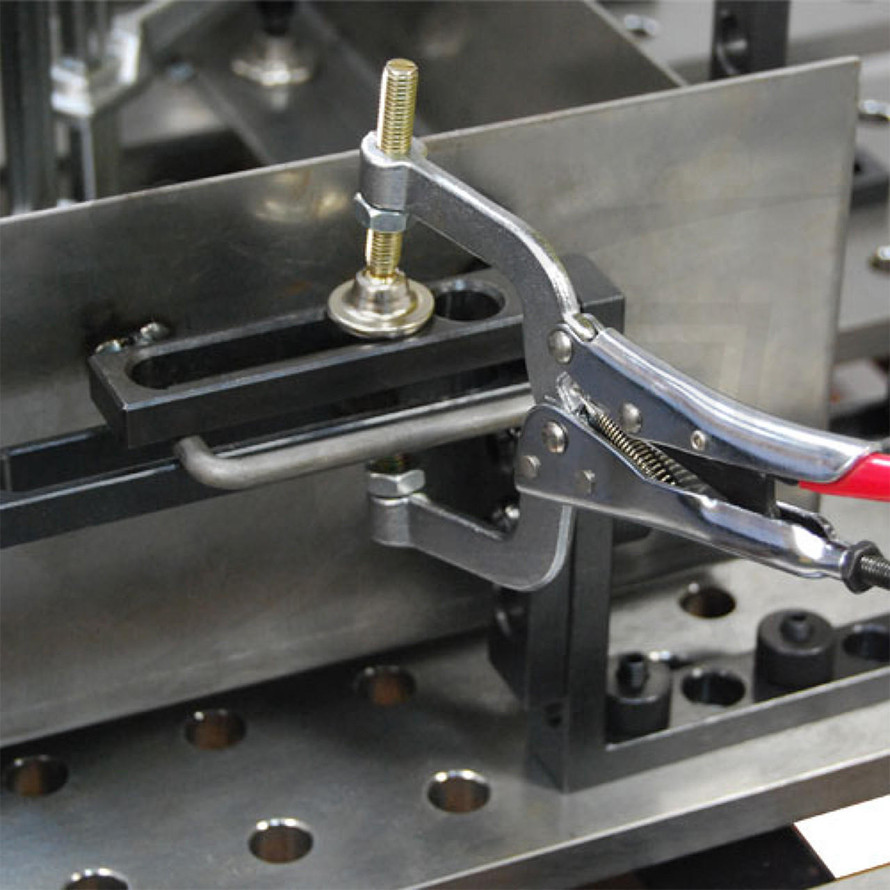

Multi-Purpose Pliers with swivel and fixed head spindles for flexibility in clamping.

One swivel pad spindle and a fixed head spindle for flexible clamping. Threaded jaw holes allow addition of accessories.

View AllClose

Specifications

View AllClose

1 Review

  • 4

    I bought these to clamp shear plates to truck…

    Posted by Brian H. on Jul 8th 2021

    I bought these to clamp shear plates to truck frames to transfer holes. I replaced the cheesy little screw with a 3.5 inch spacer I made in my lathe. I had to grind the surfaces where the jam nuts meet the clamp arms to register square which is a manufacturer defect IMHO. The point of pivot is not Ideal for me, The fixed arm would be best with about another inch of reach deep. If the depth on either isn't just center the pads don't meet just right, as long as you can keep the arms parallel you are ok. Just like all strong hand grips the adjustment screw is touchy. This tool fills a need for me that nothing else can. The depth of the throat lets you get adequate clamping force while still getting far enough in to be on a true flat. 18r's are worthless for the operation I use them for, not enough force with those.
