Silicone Purge Plug Kits – 1" to 10" (Select Size From Options Above)

High-temperature silicone purge plug kits for TIG welding tube and pipe, available in sizes from 1" (25.4mm) to 10" (254mm).
TIG Aesthetics Silicone Purge Plugs are designed to provide controlled argon shielding inside tubing and pipe during TIG welding. Made from high-quality, heat-resistant silicone, these plugs help contain shielding gas around the weld area to protect the inside of the weld from atmospheric contamination.

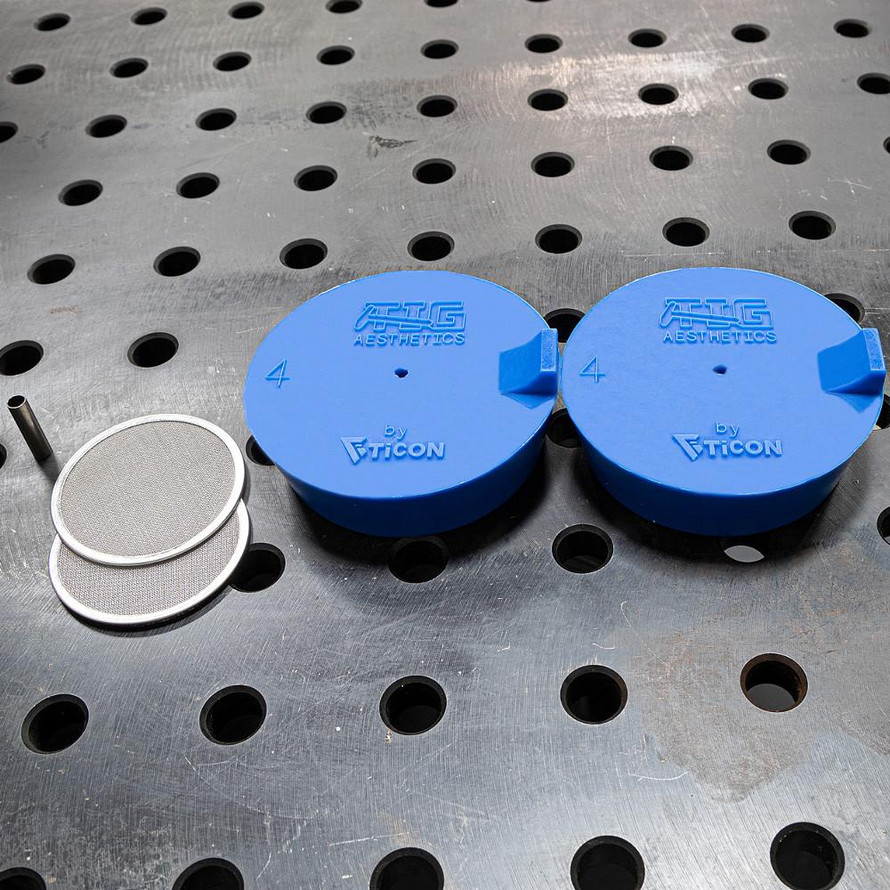

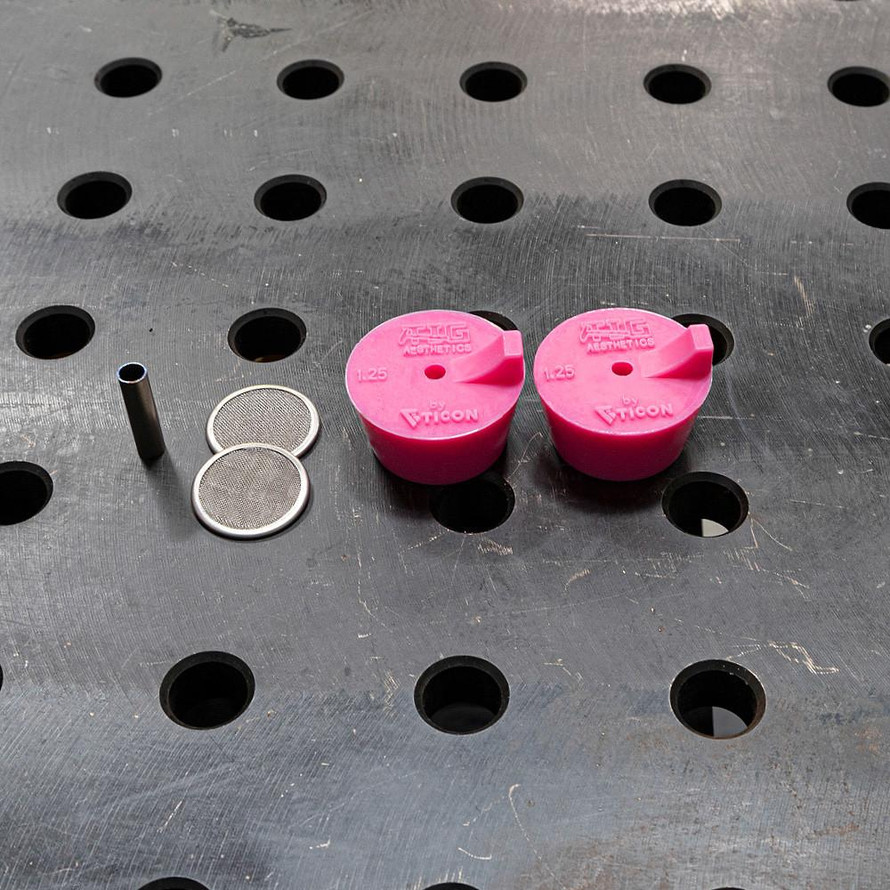

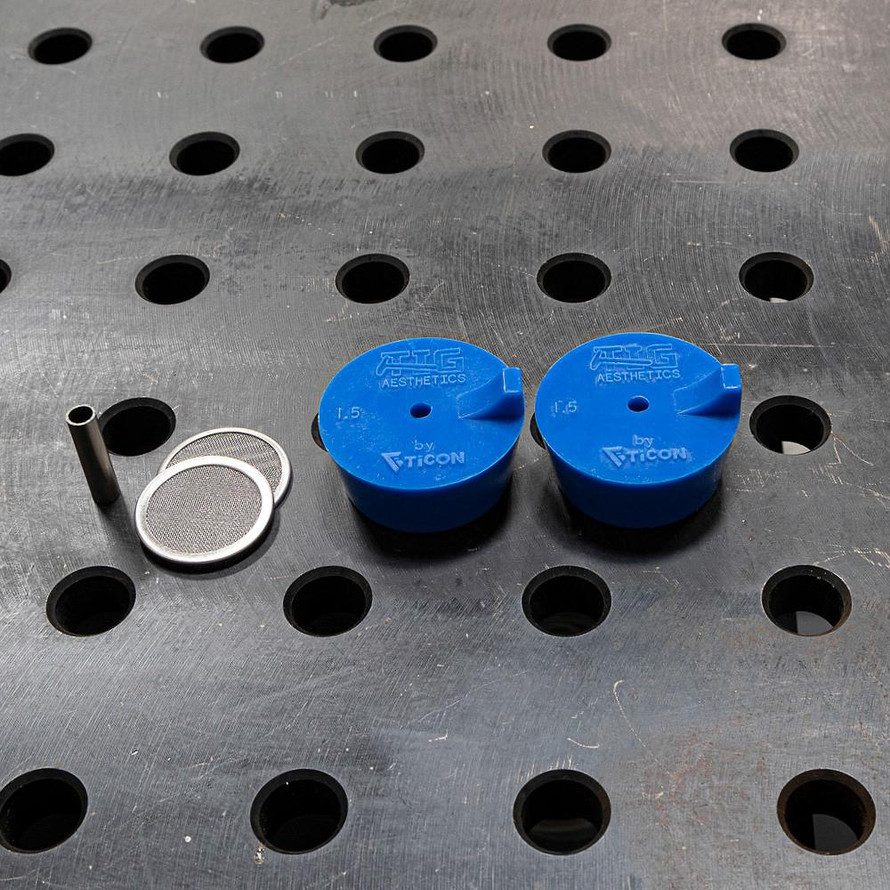

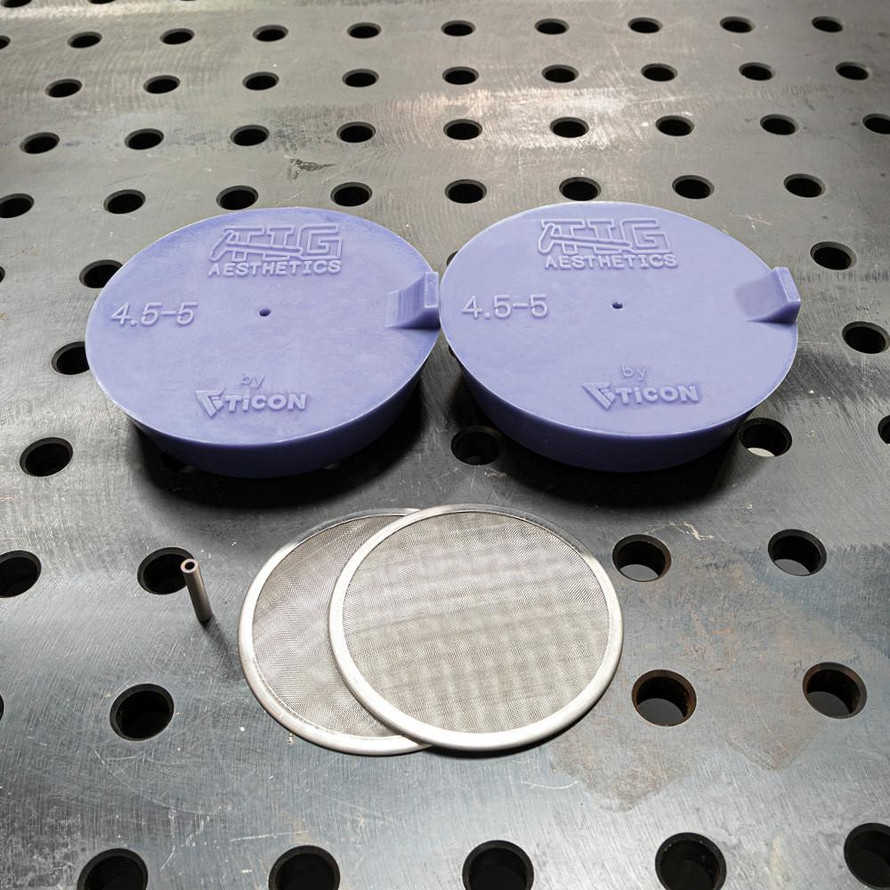

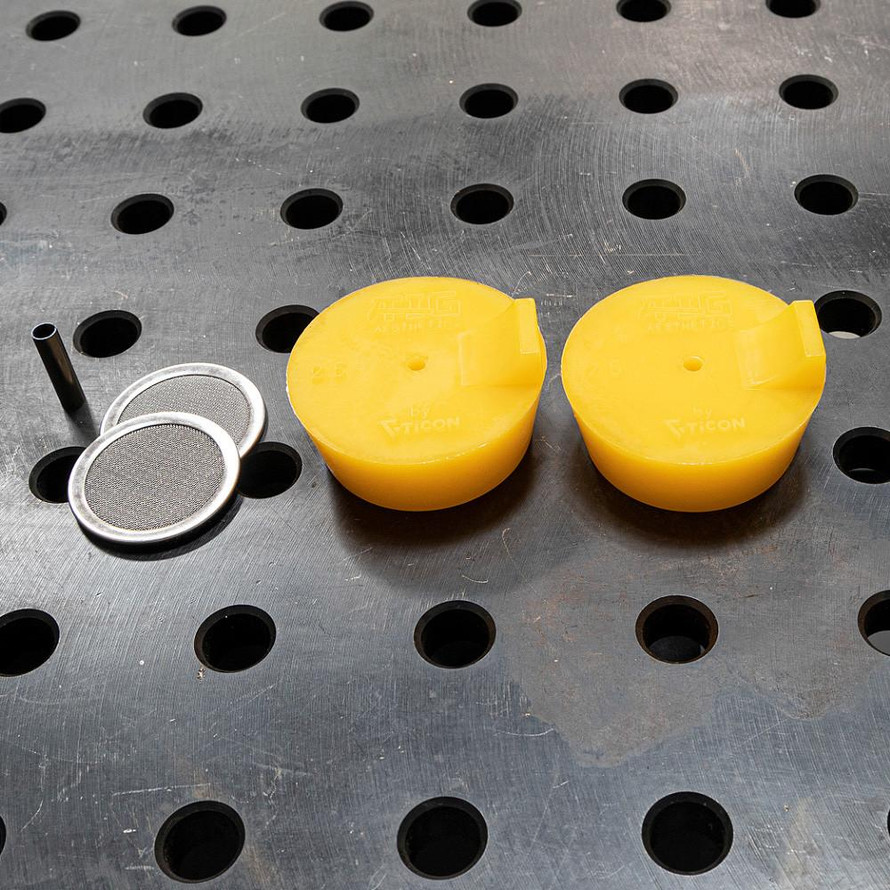

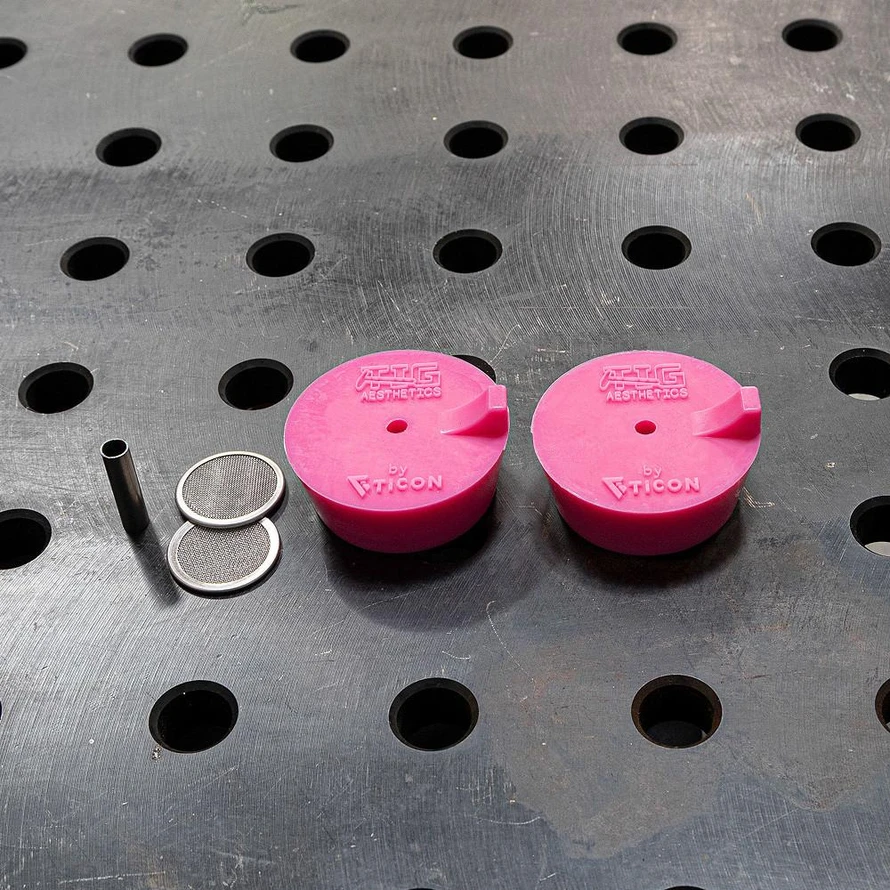

Each 2-pack purge plug kit features high-temperature silicone construction, a multi-layer stainless steel gas flow diffuser, and a thin-wall titanium gas inlet component. The diffuser helps reduce turbulence inside the tube or pipe, supporting more efficient argon distribution and consistent internal shielding gas coverage.

Available in 13 selectable sizes from 1" through 10", these purge plug kits are suitable for a variety of tube and pipe fabrication applications. Select the appropriate size from the options above.

Important Ordering Information: Each option is sold as a 2-pack kit of the selected size. Select your required size before adding the product to your cart.

Key Features

• High-Temperature Silicone: Designed for TIG welding applications where the purge plugs may be positioned as close as 1" (25.4mm) from the weld joint under suitable conditions.
• 2-Pack Kit: Includes two silicone purge plugs in the selected size.
• 13 Available Sizes: Choose from 1", 1.25", 1.5", 1.75", 2", 2.5", 3", 3.5", 4", 5", 6", 8", and 10".
• Multi-Layer Stainless Steel Diffuser: Helps distribute argon while reducing turbulence inside the tube or pipe.
• Improved Argon Efficiency: Helps contain shielding gas within the area being purged instead of requiring the entire pipe or tube assembly to be filled.
• Thin-Wall Titanium Gas Inlet: Features a lightweight titanium inlet component with a 0.5mm wall thickness.
• Color-Coded Options: Selected plug sizes use different colors to help identify the correct components.
• Reusable Silicone Construction: Suitable for repeated use when properly maintained and free from damage.
• Tube & Pipe Applications: Designed for compatible tubing and pipe configurations requiring internal shielding gas protection.
• TIG Welding Applications: Useful for stainless steel, titanium, and other materials requiring weld root protection.

Available Purge Plug Sizes & Part Numbers

Arc-Zone offers 13 TIG Aesthetics Silicone Purge Plug Kit options, covering selected sizes from 1" to 10". Each part number corresponds to a specific size selection.

Size Selection: Choose the required size from the product options above. The available sizes correspond to Arc-Zone's listed kit variants.

Important: Nominal pipe sizes and tubing dimensions are not always interchangeable. Verify the inside diameter of your workpiece and the manufacturer's recommended plug fitment before ordering.

What's Included?

Each TIG Aesthetics Silicone Purge Plug Kit contains the components for a two-plug back-purging arrangement.

Please Note: Each selected option is a 2-pack kit. Argon cylinders, regulators, oxygen monitors, and additional gas supply equipment are not included unless otherwise specified.

Why Back Purging Matters

When TIG welding stainless steel, titanium, and other materials sensitive to atmospheric contamination, shielding gas protection is important on both sides of the weld.

While the TIG torch provides shielding gas to the outside of the weld, the inside of tubing and pipe may still be exposed to oxygen during welding.

Without proper internal shielding, the weld root can develop oxidation, discoloration, and contamination that may affect weld quality.

Back purging introduces argon or another appropriate shielding gas into the inside of the tube or pipe to help displace oxygen around the weld joint.

TIG Aesthetics Silicone Purge Plugs help contain shielding gas within a smaller section of the workpiece, reducing the volume that must be purged compared with filling an entire pipe or tubing assembly.

Multi-Layer Stainless Steel Gas Diffuser

These silicone purge plug kits feature a multi-layer stainless steel diffuser designed to improve shielding gas distribution inside the workpiece.

When argon enters a tube or pipe without proper diffusion, turbulent gas flow can mix with the surrounding atmosphere and reduce purge efficiency.

The stainless steel diffuser helps reduce this turbulence and distribute shielding gas more evenly throughout the contained purge area.

This design supports more efficient argon usage and helps establish consistent internal shielding conditions.

High-Temperature Silicone Construction

TIG Aesthetics Purge Plugs are made from high-temperature silicone designed for use near TIG welding operations.

Under suitable operating conditions, the plugs can be positioned as close as 1" (25.4mm) from the weld joint.

Positioning the plugs closer to the weld can help reduce the amount of internal space that needs to be filled with argon.

Heat Exposure Note: Actual working distance depends on welding amperage, material thickness, welding duration, and heat input. Avoid direct arc or flame exposure and inspect the plugs for damage before reuse.

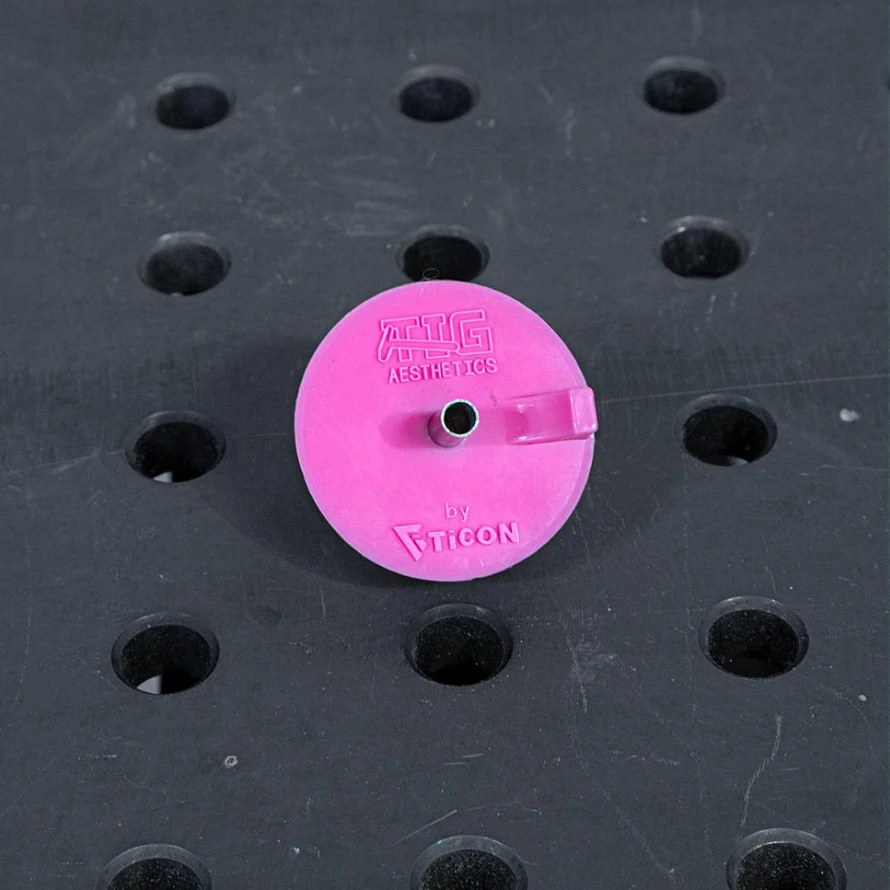

Thin-Wall Titanium Gas Inlet

The purge system includes a lightweight titanium gas inlet tube with a 0.5mm wall thickness.

This thin-wall inlet component provides a connection point for introducing shielding gas into the purging area.

Working with the stainless steel diffuser, the inlet allows argon to enter the workpiece in a controlled manner while minimizing unnecessary turbulence.

Choosing the Correct Purge Plug Size

Proper fitment is essential for effective back purging. TIG Aesthetics offers several size options to accommodate different tube and pipe configurations.

Before ordering, follow these general guidelines:

• Identify Your Workpiece: Determine whether you are welding tubing or nominal pipe.
• Verify the Actual Dimensions: Check the inside diameter and wall thickness of your tube or pipe.
• Review the Size Options: Match the required fitment to the available kit sizes.
• Confirm the Part Number: Use the size chart to identify the corresponding Arc-Zone SKU.
• Select the Correct Variant: Choose your required kit size from the options above.

Important: Tube outside diameter, nominal pipe size, and actual pipe inside diameter are different measurements. Do not assume that two products with the same nominal size will have identical internal dimensions.

Common Applications

• Stainless steel TIG tube welding
• Titanium tube and pipe fabrication
• Automotive exhaust fabrication
• Custom exhaust headers and manifolds
• Turbocharger tubing fabrication
• Sanitary and process piping
• Industrial pipe welding
• Large-diameter tube fabrication
• Precision TIG welding applications
• Weld root oxidation control
• Internal shielding gas protection
• Fabrication requiring controlled argon back purging

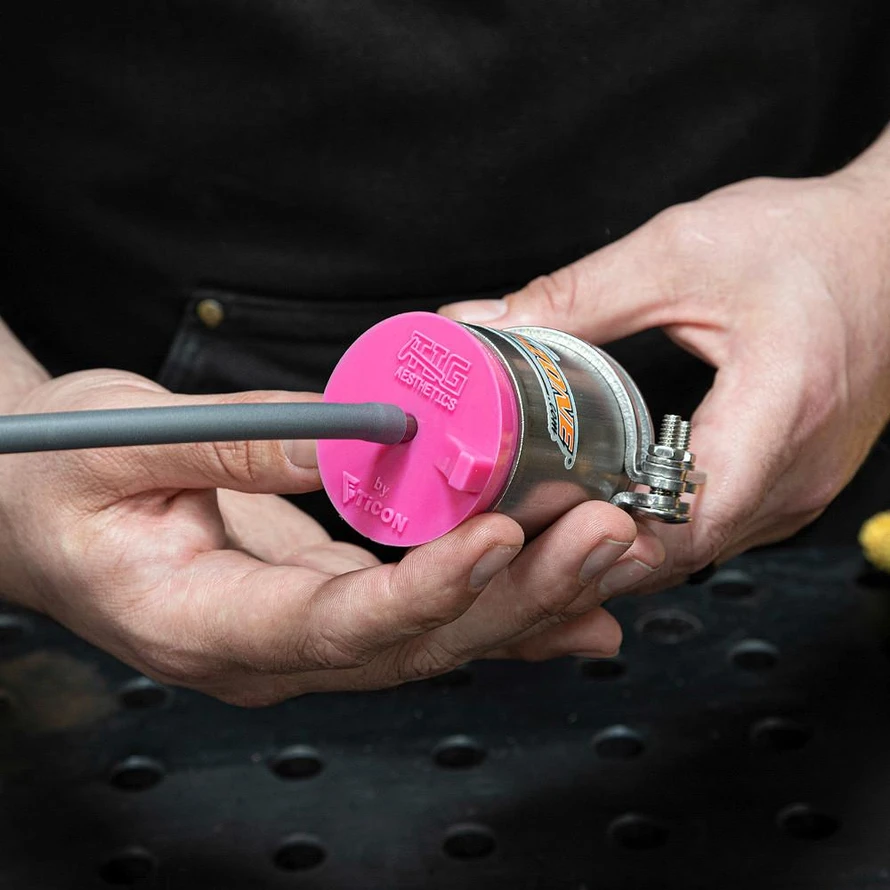

Basic Back-Purging Setup

1. Select the Correct Plug Size: Choose the TIG Aesthetics purge plug kit that fits your tube or pipe.
2. Prepare the Workpiece: Clean the weld joint and surrounding surfaces.
3. Position the Plugs: Install the two silicone plugs on opposite sides of the weld joint to create the purge area.
4. Connect the Shielding Gas: Introduce argon through the appropriate inlet and diffuser.
5. Provide a Gas Outlet: Ensure the setup allows gas to escape safely without pressure buildup.
6. Purge the Workpiece: Allow sufficient time for oxygen displacement and verify the purge conditions required by your welding procedure.
7. Begin Welding: Maintain the required internal shielding gas coverage throughout welding and the applicable cooling period.

Safety Note: Never completely seal a purge chamber without a suitable vent path. Follow manufacturer instructions and applicable welding procedures for gas flow, venting, and oxygen control.

Frequently Asked Questions

What are TIG Aesthetics Silicone Purge Plugs?
They are high-temperature silicone plugs designed to help contain shielding gas inside tubing and pipe during TIG welding, protecting the internal weld area from atmospheric contamination.

How many purge plugs come in each kit?
Each kit includes 2 silicone purge plugs in the selected size.

What sizes does Arc-Zone offer?
Arc-Zone offers 13 sizes: 1", 1.25", 1.5", 1.75", 2", 2.5", 3", 3.5", 4", 5", 6", 8", and 10".

Does Arc-Zone carry 8" and 10" purge plug kits?

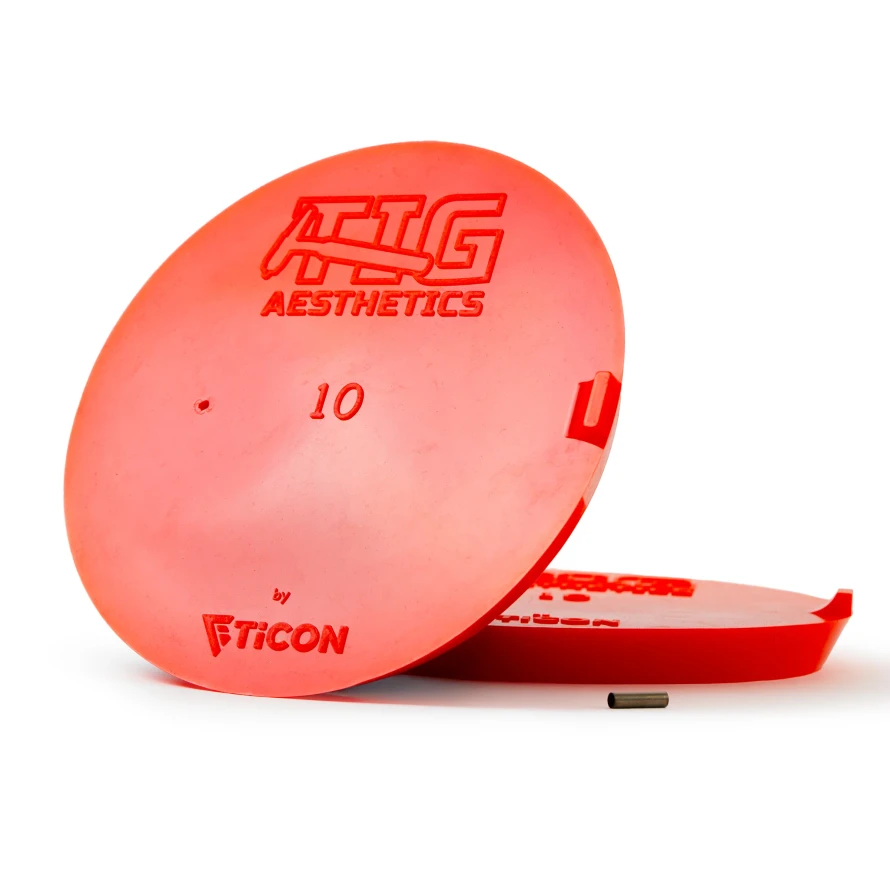

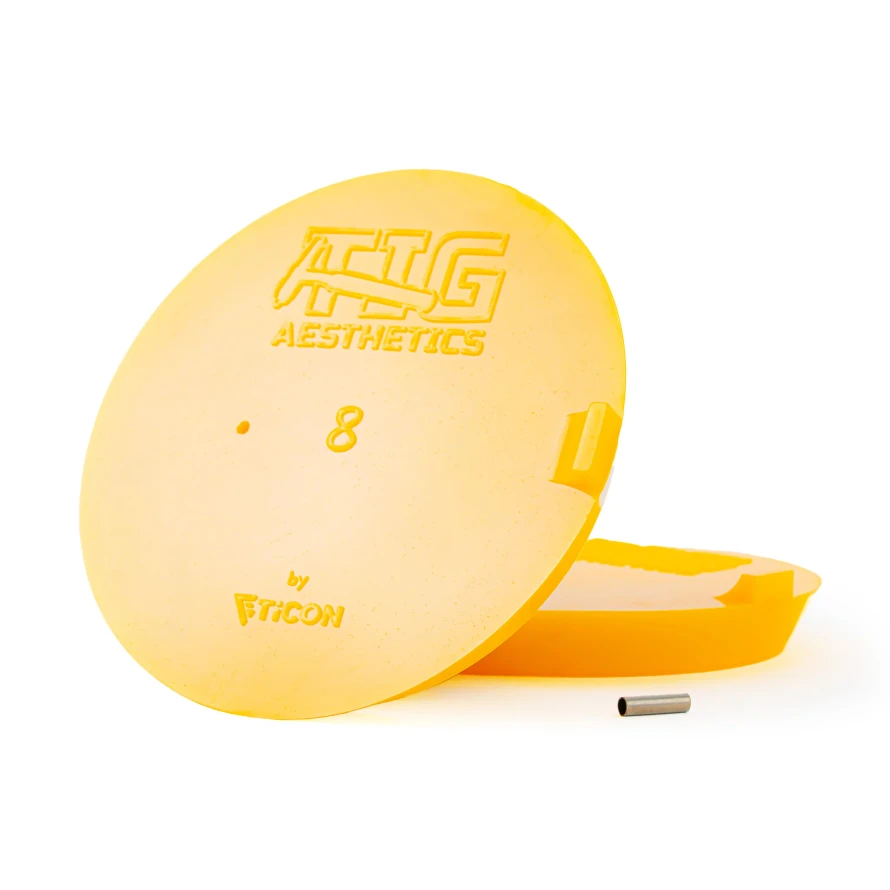

Yes. The 8" (203.2mm) kit is part number TIC-903-71205-0000, and the 10" (254mm) kit is part number TIC-903-71260-0000.

Do the purge plugs include stainless steel gas diffusers?
Yes. These kits feature a multi-layer stainless steel diffuser designed to help distribute shielding gas and reduce turbulence inside the workpiece.

Is a titanium gas inlet included?
Yes. The purge system includes a thin-wall titanium gas inlet component with a 0.5mm wall thickness.

How close can the silicone purge plugs be positioned to the weld?
The manufacturer states that the plugs can be positioned as close as 1" (25.4mm) from the weld joint under suitable conditions. Always account for actual heat exposure during welding.

Why use a stainless steel gas diffuser?
The diffuser helps minimize turbulence and promotes more even argon distribution throughout the contained purge area.

Can these be used for stainless steel TIG welding?
Yes. They are suitable for compatible stainless steel tubing and pipe applications requiring internal shielding gas protection.

Can these purge plugs be used for titanium welding?
Yes. They can be used in compatible titanium fabrication applications where internal shielding gas is required. Follow the appropriate welding and purging procedures.

Are TIG Aesthetics Silicone Purge Plugs reusable?
Yes. The plugs can be reused when properly maintained and inspected. Replace any plug that shows cracking, deformation, excessive heat damage, or other deterioration.

How do I choose the correct size?
Match the selected purge plug to the actual dimensions of your tubing or pipe. Check the manufacturer's fitment recommendations and verify the workpiece inside diameter before ordering.

Is nominal pipe size the same as tube diameter?
No. Nominal pipe size and tube outside diameter are different measurement systems. Always confirm the correct fitment for your workpiece.

Can these plugs help reduce argon consumption?
By containing shielding gas in a smaller section of the tube or pipe, the purge plugs can reduce the volume that needs to be purged compared with filling an entire open assembly. Actual gas consumption depends on the setup and welding procedure.

Do these plugs eliminate the need for an oxygen monitor?
No. If the welding procedure requires verification of oxygen concentration, use an appropriate purge oxygen monitor.

Are the purge plugs sold individually?
No. Each selected option is sold as a 2-pack kit.

Does the kit include an argon regulator or gas cylinder?
No. This listing is for the selected purge plug kit and its specified components. Argon supply equipment is sold separately.
