Description

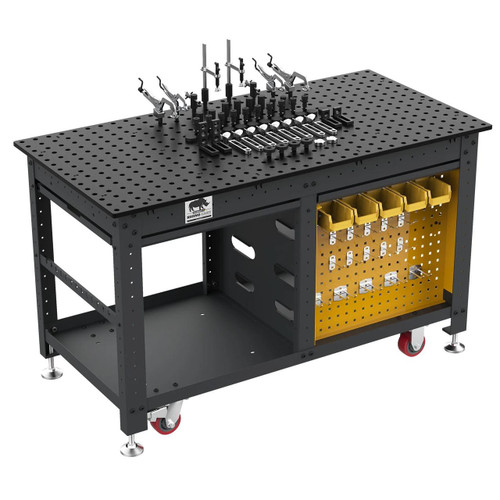

RhinoCart™ Mobile Fixturing Station, 60" x 30" with 66 Piece Fixturing Kit
*Free Shipping* within The Contiguous United States. For International Shipments, Customer Pays All Shipping, Taxes, and Fees.
*For Residential deliveries, freight companies charge $75 for lift gate and scheduling services.
*SHT-TD5-6030Q-K3 has replaced SHT-TD5-6030Q-K1*
| Part # | SHT-TD5-6030Q-K3 |
|---|---|
| Holes Diameter | 5/8" (16mm) |
| Grid Pattern | 2" (50.8mm) x 2" (50.8mm) |
| Tabletop Size | 60" (1,524mm) x 30" (762mm) |
| Tabletop Thickness | 5/8" (16mm) |
| Table Height | 36" (914mm) - 40" (1,016mm) |
| Static Loading Capacity | 1,500 lbs (680kg) |
| Package Weight | 681 lbs (309kg) |
Features:
- 5/8 in steel plate reversible tabletop with nitrided black oxide protective finish for wear, rust, and weld spatter resistance.

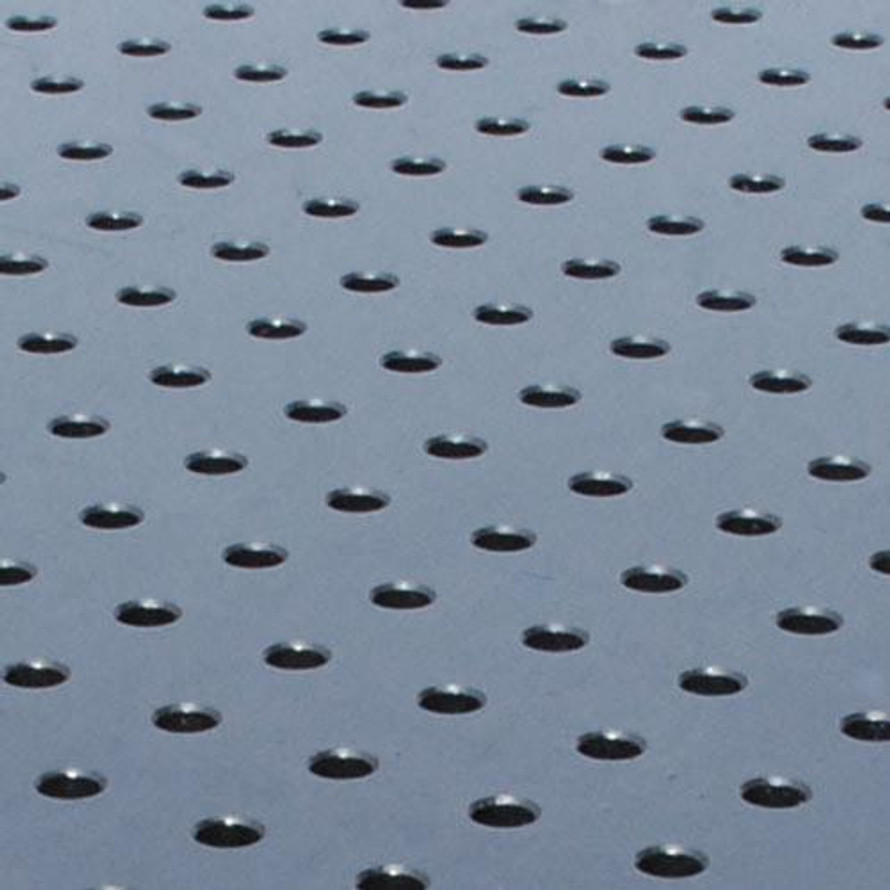

- Accurately position parts in CNC machined 5/8" dia. holes in 2" x 2" spacing pattern.

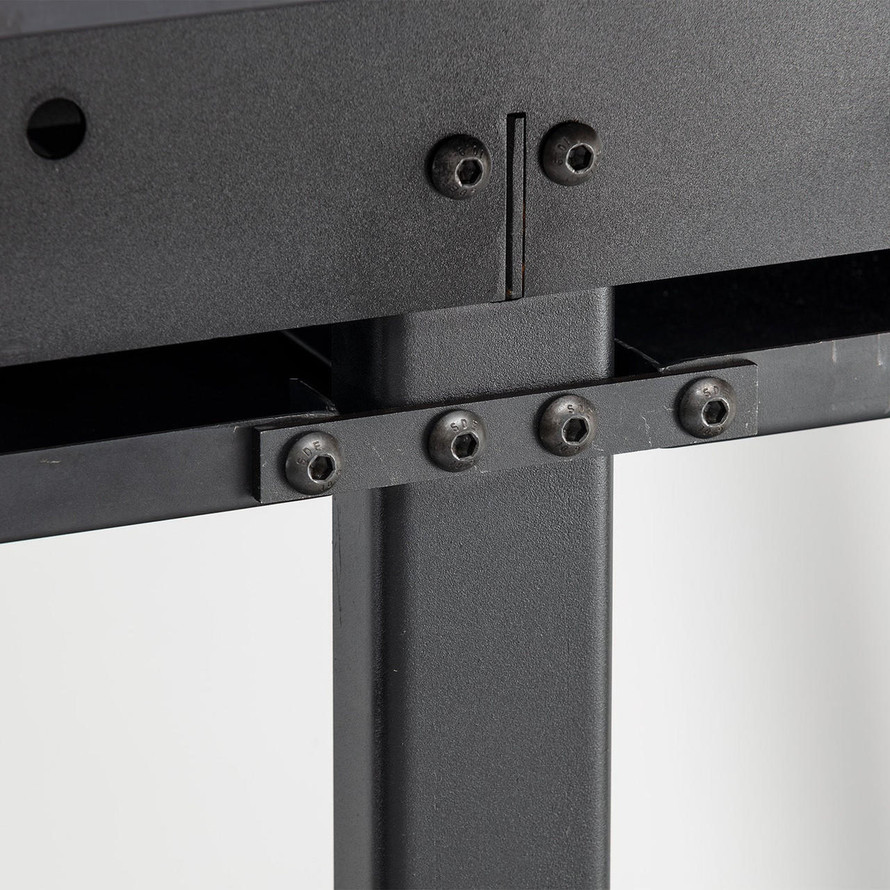

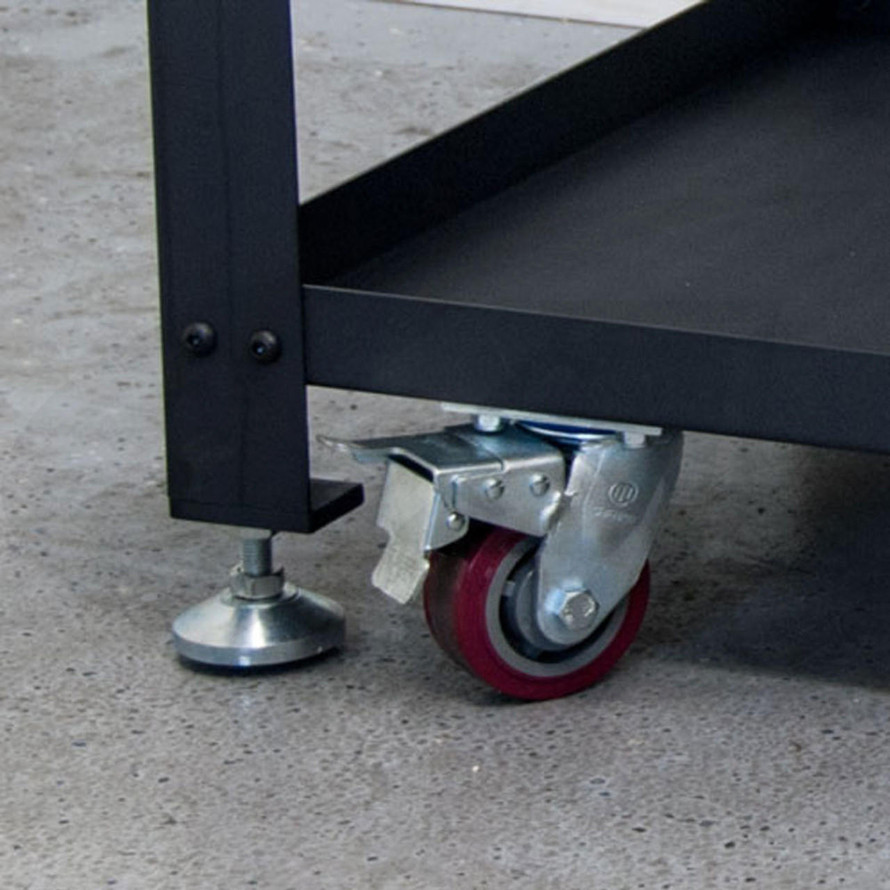

- Steel legs are equipped with four locking casters and leveling feet for mobile or stationary use.
- Shelves, racks, and a pegboard panel allow you to store, organize, and keep clamps and accessories within reach.

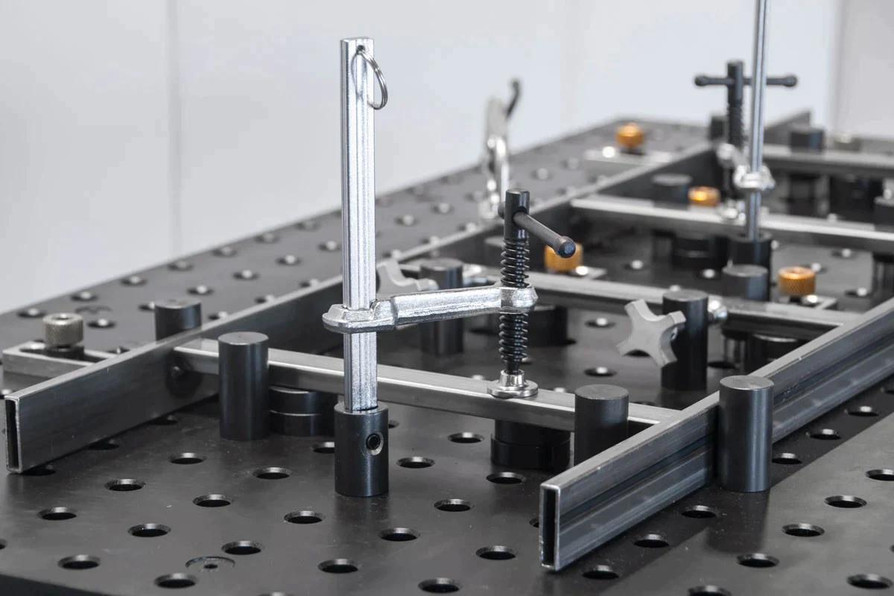

- Fully compatible with all BuildPro accessories and clamps.

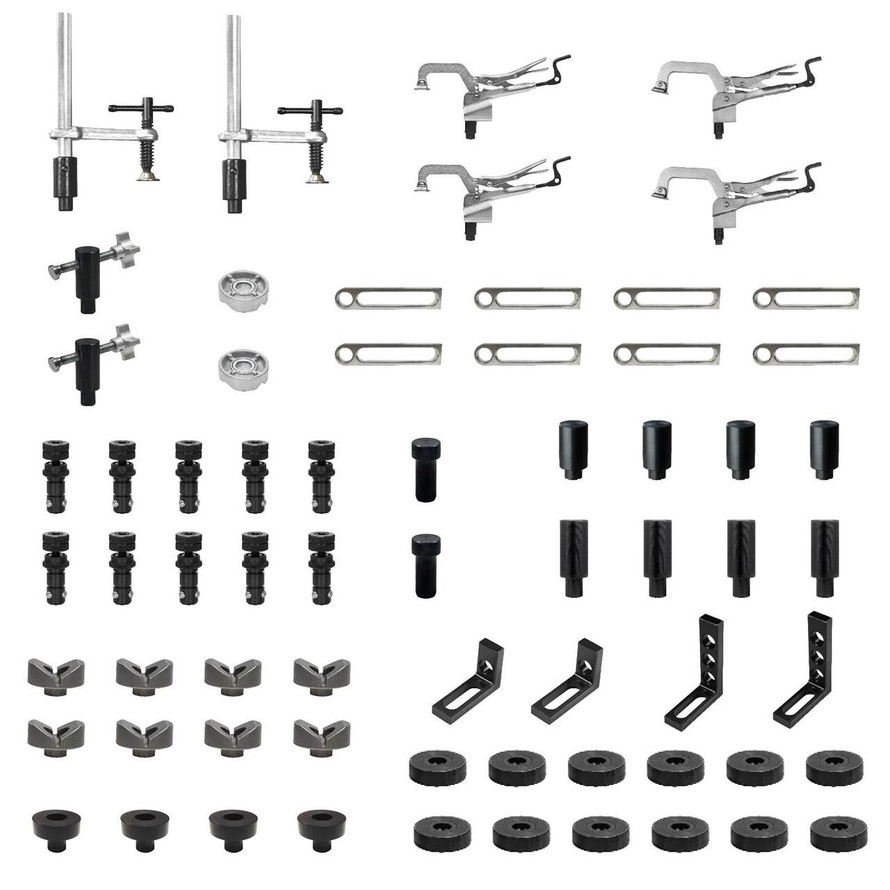

Kit Includes:
- 10 Adjustable Lock Bolt: SHT-T55057
- 2 Locating Pin: SHT-T54201
- 2 Inserta Pliers (2.3" Capacity): SHT-PTT522K
- 2 Inserta Pliers (4" Capacity): SHT-PTT634K
- 2 Inserta Clamp: SHT-UDN5150
- 2 Inserta Clamp Top V-Pads: SHT-T54217
- 2 Side Clamp: SHT-TCX5210
- 4 Locate Stop (2"): SHT-T54205
- 4 Locate Stop (1.5"): SHT-T54203
- 8 V-Block: SHT-T54216
- 4 V-Block Spacer: SHT-T54211
- 8 D-Stop Bar: SHT-T50632-01
- 12 Magnetic Rest Spacer: SHT-T50737
- 2 Right Angle Bracket (2"): SHT-T50304
- 2 Right Angle Bracket (4"): SHT-T50305
Popular Accessories (Sold Separately):
Specifications
View AllCloseVideos
View AllClose
Additional Information
|
Accessory Type:
|
Tables w/ Legs
|
|
Table Brand:
|
BuildPro
|
|
Table Hole Dia.:
|
5/8"
|
|
Table Finish:
|
Nitride
|
|
Table Size:
|
5'x 2.5'
|
