Description

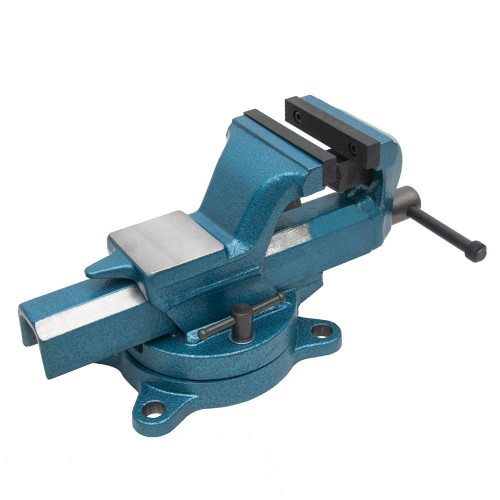

Direct Mounted 360° Table Vise
Bulletproof vise designed with swivel base and patterned to bolt directly to BuildPro, Rhino Cart, and many other grid pattern welding tables using the 5/8" diameter holes.
The vise also includes four Socket Shoulder Screws (SHT-T831610) for secure mounting and fast removal.
When it comes to long-lasting, durable tools, the Forged Vise is the tool to have. Made of 90,000 PSI Tensile Strength Forged Steel, this Forged Vise is as tough as you can get. Featuring a large, machined anvil surface and powder coated for a durable finish, the Forge Vise, a 4” Bench Vise, sits atop a swivel base with the ability to maneuver 360°.
| Part # | SHT-TXV5-4 |
|---|---|
| Jaw Width | 4" (102mm) |
| Jaw Opening | 5" (127mm) |
| Pipe Capacity | 0.5" - 2" (13mm - 51mm) |
| Throat Depth | 2.9" (74mm) |
| Clamping Force | 5,000 lbs. |
| Handle Diameter | 0.435" (11.0mm) |
| Handle Length | 7.125" (181mm) |
| Max Torque | 118 ft/lb |
| Weight | 22 lbs. (10kg) |
Specifications
View AllCloseAdditional Information
|
Accessory Type:
|
Misc
|
|
Table Brand:
|
Alpha 5/8
|
|
Table Brand:
|
BuildPro
|
|
Table Hole Dia.:
|
5/8"
|
