Rollout Plates for Pipe Welding – 1" to 8" Pipe (Select Roller Configuration Above)

Adjustable pipe rollout plates for rotating, positioning, and supporting pipe during welding and fabrication.
Rollout Plates provide a practical way to support and rotate pipe directly on a welding or fabrication table. Designed for pipe sizes from 1" to 8", these compact roller fixtures help welders reposition round workpieces without repeatedly lifting or manually handling the pipe.

Each rollout plate uses 2" (50mm) diameter rollers mounted on individually adjustable arms. Two roller positions allow the setup to accommodate different pipe diameters while maintaining support during rotation.

Choose from two configurations: the compact RLP050 with two rollers, or the larger RLP110 with four rollers and an integrated 300-amp grounding connection.

Both models can be secured to a compatible perforated welding table or clamped to a suitable work surface.

Select your preferred roller configuration from the options above.

Key Features

• 1" to 8" Pipe Capacity: Designed to support and rotate a range of pipe sizes during welding and fabrication.
• Smooth Pipe Rotation: Roller-supported design allows pipe to turn while positioned on the welding table.
• Adjustable Roller Positions: Each roller pair offers narrow and wide positions for different pipe diameters.
• 2" Diameter Rollers: Heavy-duty rollers support pipe during positioning and rotation.
• Two Available Configurations: Choose between a compact two-roller model and a larger four-roller model.
• Table-Mounted Design: Secure the fixture using appropriate mounting hardware or compatible table clamps.
• Compact RLP050: Single roller pair mounted on a smaller base for applications requiring a compact fixture.
• Extended RLP110: Two roller pairs mounted on a longer plate provide support at two locations along the pipe.
• 300-Amp Grounding Tab: The RLP110 includes a conductive grounding tab rated for up to 300 amps.
• Flexible Setup: Multiple rollout plates can be positioned in line to accommodate different workpiece lengths.
• Welding & Fabrication Applications: Suitable for pipe welding, assembly, fit-up, and positioning tasks.

Available Rollout Plate Configurations

Strong Hand Tools offers two rollout plate configurations designed for different pipe support requirements.

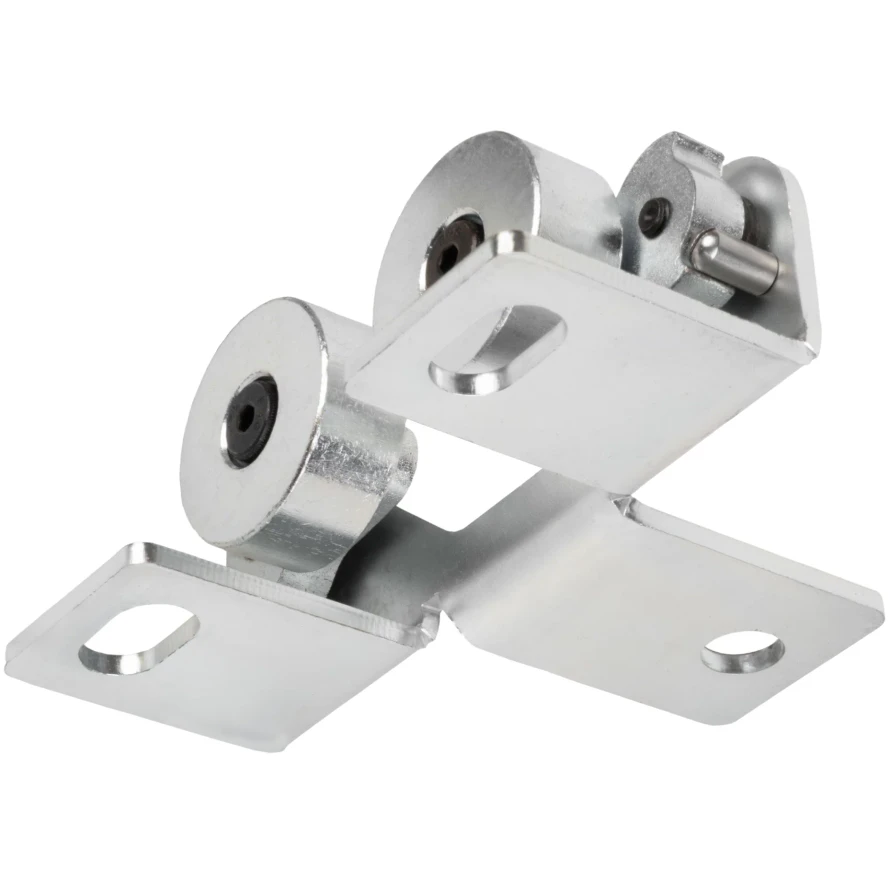

SHT-RLP050 – Two-Roller Rollout Plate
The RLP050 features one pair of adjustable rollers on a compact mounting base. Its smaller footprint makes it useful for supporting and rotating pipe where table space is limited.

The base includes slotted mounting feet and a mounting tab, allowing the plate to be secured to a compatible welding table.

Important: The RLP050 does not include a conductive grounding tab.

SHT-RLP110 – Four-Roller Rollout Plate with Grounding Tab
The RLP110 features two pairs of adjustable rollers, one at each end of a longer mounting plate. This configuration supports the pipe at two locations along the plate.

The RLP110 also includes a conductive grounding tab rated for up to 300 amps, allowing the welding work return connection to be made through the designated grounding point.

Important: The 300-amp grounding tab is included only with the RLP110 model.

Rotate Pipe Without Repeated Lifting

Rotating pipe by hand can interrupt the welding process, especially when the workpiece needs to be repositioned several times around its circumference.

Strong Hand Tools Rollout Plates support pipe on rotating rollers, allowing the workpiece to turn while resting on the fixture.

This arrangement can simplify pipe positioning during weld preparation, tack welding, fit-up, and fabrication.

For longer workpieces, multiple rollout plates can be positioned in line to provide additional support as needed.

Adjustable Roller Positions

Each rollout plate features roller arms that can be set in two positions: narrow or wide.

The narrow position accommodates smaller pipe diameters, while the wider position provides an alternative support arrangement for larger pipe.

Each roller is mounted on its own arm, allowing the roller configuration to be adjusted according to the workpiece.

Before welding, confirm that the pipe is properly seated on the rollers and that the rollout plate is securely mounted to the work surface.

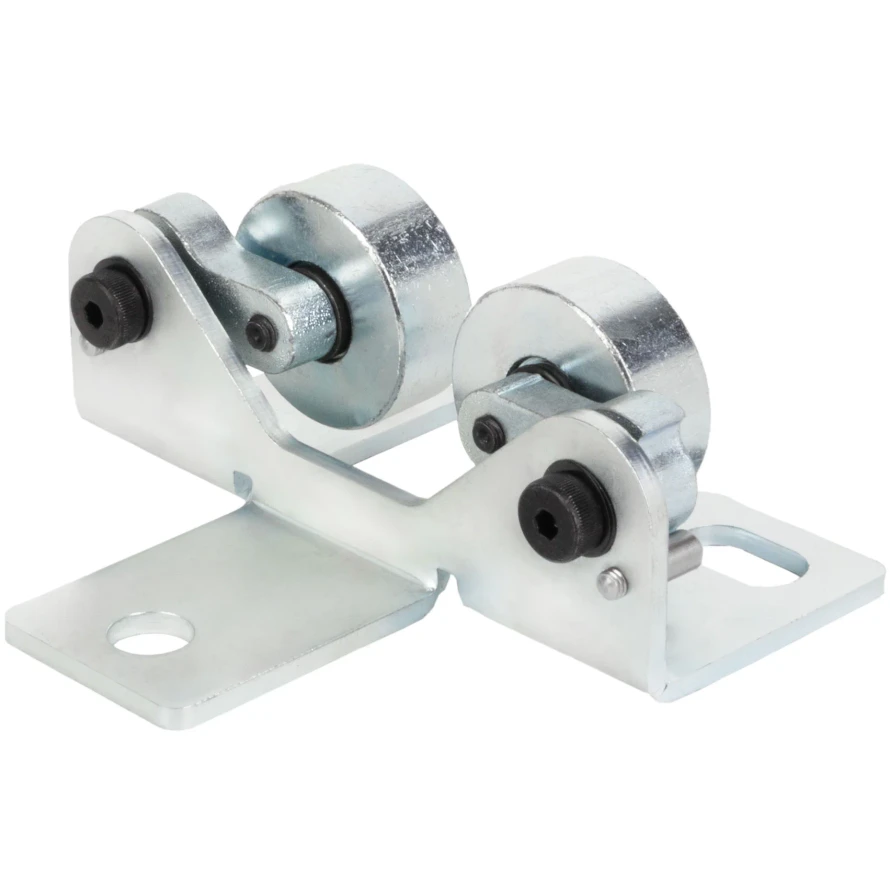

RLP050 – Compact Two-Roller Design

The SHT-RLP050 uses a single pair of 2" rollers mounted on a compact base.

The smaller design makes it a practical option for shorter workpieces, supplementary pipe support, and applications where table space is limited.

Its mounting arrangement includes two slotted feet and a center mounting tab.

The RLP050 may also be positioned in line with another compatible rollout plate when additional workpiece support is required.

RLP110 – Four Rollers with 300-Amp Grounding Tab

The SHT-RLP110 features four rollers arranged in two pairs on a longer mounting plate.

This configuration provides two support locations along the workpiece while maintaining the ability to rotate the pipe.

The RLP110 includes a conductive grounding tab rated for up to 300 amps. The tab attaches to the side of the plate near one of the roller pairs using the supplied mounting screws.

The designated grounding tab allows the welding work return clamp to be connected directly to the fixture.

Grounding Note: The RLP110 is the only model in this listing that includes the conductive grounding tab. Always follow the welding equipment manufacturer's work return connection instructions and do not exceed the tab's 300-amp rating.

Mounting to Your Welding Table

Both rollout plate models can be mounted to a compatible perforated welding table or secured using suitable clamps.

RLP050 Mounting:
The compact base features two slotted mounting feet and a center mounting tab for securing the plate.

RLP110 Mounting:
The longer mounting plate features seven mounting holes for positioning and securing the fixture to a compatible work surface.

When using a welding table without mounting holes, either rollout plate can be secured with appropriate clamps.

Please Note: Bolts and clamps used to secure the rollout plates to the welding table are not included.

Using Multiple Rollout Plates

For pipe or tubing that requires additional support, two or more rollout plates can be positioned along the workpiece.

For example, the compact RLP050 can be placed in line with an RLP110 to create a multi-point pipe support arrangement.

The distance between fixtures can be adjusted to suit the workpiece length and the support requirements of the job.

Make sure all supports are properly aligned and secured before rotating or welding the pipe.

What's Included?

SHT-RLP050 – Two-Roller Configuration:

• 1 Strong Hand Tools RLP050 Rollout Plate
• 2 Installed Pipe Support Rollers
• Integrated mounting base with slotted feet and center tab

SHT-RLP110 – Four-Roller Configuration:

• 1 Strong Hand Tools RLP110 Rollout Plate
• 4 Installed Pipe Support Rollers
• 1 Conductive Grounding Tab (300-Amp Rating)
• 2 M5 x 8 Mounting Screws for the Grounding Tab

Not Included: Welding table, pipe, mounting bolts, mounting clamps, welding cables, and additional fixturing accessories.

Common Applications

• Pipe TIG welding
• Pipe MIG welding
• Pipe fit-up and assembly
• Tube and pipe fabrication
• Rotating round workpieces
• Weld preparation and tack welding
• Fabrication table pipe positioning
• Industrial pipe welding
• Metal fabrication workshops
• Custom pipe assemblies
• Welding workstation fixturing
• General pipe handling and positioning

Basic Setup Instructions

1. Choose the Correct Model: Select the two-roller RLP050 or four-roller RLP110 configuration.
2. Secure the Plate: Bolt or clamp the rollout plate to a suitable welding table.
3. Set the Roller Positions: Adjust the roller arms to the narrow or wide position according to the pipe diameter.
4. Position the Pipe: Carefully place the workpiece on the rollers and confirm it is properly supported.
5. Add Support if Needed: Position additional rollout plates in line for longer workpieces.
6. Connect the Work Return: When using the RLP110 grounding tab, connect the welding work return according to the equipment manufacturer's instructions.
7. Begin Welding: Rotate the workpiece as needed while maintaining proper support and control.

Safety Note: Secure the rollout plate before use. Keep hands clear of moving rollers and pinch points, and prevent unsupported pipe from rolling or falling from the fixture. Follow the manufacturer's instructions and applicable welding safety procedures.

Frequently Asked Questions

What are Strong Hand Tools Rollout Plates?
They are pipe-support fixtures with rotating rollers that allow pipe to turn while positioned on a welding or fabrication table.

What pipe sizes do these rollout plates accommodate?
Both models are designed for 1" to 8" pipe.

What is the difference between the RLP050 and RLP110?
The RLP050 has two rollers mounted on a compact base. The RLP110 has four rollers mounted on a longer plate and includes a 300-amp conductive grounding tab.

Does the RLP050 include a grounding tab?
No. The RLP050 does not include the conductive grounding tab.

Which rollout plate includes the grounding connection?
The RLP110 includes a conductive grounding tab rated for up to 300 amps.

What is the maximum current rating of the RLP110 grounding tab?
The manufacturer's specified maximum current rating is 300 amps.

Can I adjust the rollers for different pipe sizes?
Yes. Both models offer two roller positions, narrow and wide, to accommodate different pipe diameters.

How large are the rollers?
Both models use 2" (50mm) diameter rollers.

Can I use these rollout plates on a welding table without fixturing holes?
Yes. Strong Hand Tools specifies that either plate can be clamped to a suitable welding table.

Are mounting bolts or clamps included?
No. Mounting bolts and clamps must be supplied separately.

Can I combine an RLP050 and RLP110?
Yes. The manufacturer shows the RLP050 positioned in line with the RLP110 as an additional pipe support arrangement.

Can these rollout plates be used for TIG welding?
Yes. They can support and position compatible pipe workpieces during TIG welding and other pipe fabrication operations.

What is included with the RLP050?
One compact RLP050 rollout plate with two rollers and its integrated mounting base.

What is included with the RLP110?
One RLP110 rollout plate with four rollers, one conductive grounding tab, and two mounting screws for the tab.

Are these sold as a pair?
No. Each selected option includes one rollout plate in the chosen configuration.

What are the Arc-Zone part numbers?
The two-roller model is SHT-RLP050. The four-roller model with grounding tab is SHT-RLP110.
