Scissor Lift Sawhorse – Adjustable Height, 5/8" Fixturing System (Select Size & Kit Option Above)

Heavy-duty, height-adjustable welding sawhorse with a 5/8" fixturing tabletop, hand-crank lift, and optional 12-piece clamping kit.
The Scissor Lift Sawhorse combines the versatility of a welding fixturing table with the convenience of an adjustable-height scissor lift. Designed for welding, fabrication, assembly, and material positioning, this mobile work support allows you to raise or lower your workpiece to a more comfortable working height.

The Scissor Lift Sawhorse features a 5/8" (16mm) thick nitrided steel tabletop with 5/8" fixturing holes on a 2" grid, making it compatible with Strong Hand Tools' 5/8" clamping and fixturing system.

Adjust the working height using the removable hand crank, or use a compatible cordless drill with a 3/4" (19mm) socket for powered adjustment. Four locking polyurethane casters allow the sawhorse to be moved around the shop, while four adjustable leveling feet provide additional stability when positioned for work.

Available in 48" x 8" and 60" x 10" tabletop sizes, with the option to add a 12-piece clamping kit. Select the configuration that best fits your workspace and fabrication needs.

Key Features

• Adjustable Working Height: Raise or lower the tabletop to suit your workpiece and welding application.
• Two Tabletop Sizes: Available in 48" x 8" and 60" x 10" configurations.
• Up to 595 lb. Capacity: The 60" model supports up to 595 lbs. (270kg), while the 48" model supports up to 375 lbs. (170kg).
• Hand-Crank Scissor Lift: Manually adjust the platform height using the removable crank handle.
• Optional Drill Operation: A 3/4" (19mm) hex drive allows height adjustment using a compatible cordless drill and socket.
• 5/8" Fixturing System: Precision-spaced 5/8" diameter holes on 2" centers accept compatible Strong Hand Tools clamps and fixturing accessories.
• Heavy-Duty Steel Tabletop: 5/8" thick 45 steel plate with a nitrided and oxidized surface.
• Wear-Resistant Surface: Nitrided tabletop helps resist wear and corrosion.
• Mobile Design: Four locking 3" polyurethane casters allow the sawhorse to move around suitable shop floor surfaces.
• Adjustable Leveling Feet: Four screw-down, rubber-padded leveling feet help stabilize the unit during use.
• Heavy-Duty Steel Frame: Powder-coated Q235 steel construction provides a rigid lifting structure.
• Optional 12-Piece Clamping Kit: Choose a configuration that includes Inserta Clamps, Inserta Pliers, stops, V-blocks, and a storage pouch.
• Ships Assembled: The sawhorse arrives assembled with the tabletop, casters, and leveling feet installed. The crank handle is packed separately for installation.

Compare the 48" and 60" Scissor Lift Sawhorses

Both models feature the same 5/8" fixturing system, removable crank handle, drill-compatible drive, locking casters, and adjustable leveling feet. The primary differences are the tabletop dimensions, lifting range, weight capacity, and overall size.

Adjustable Height for Welding and Fabrication

A fixed-height workbench does not always provide the best working position for every fabrication project. The Strong Hand Tools Scissor Lift Sawhorse allows you to raise or lower the workpiece to a height that better suits the job.

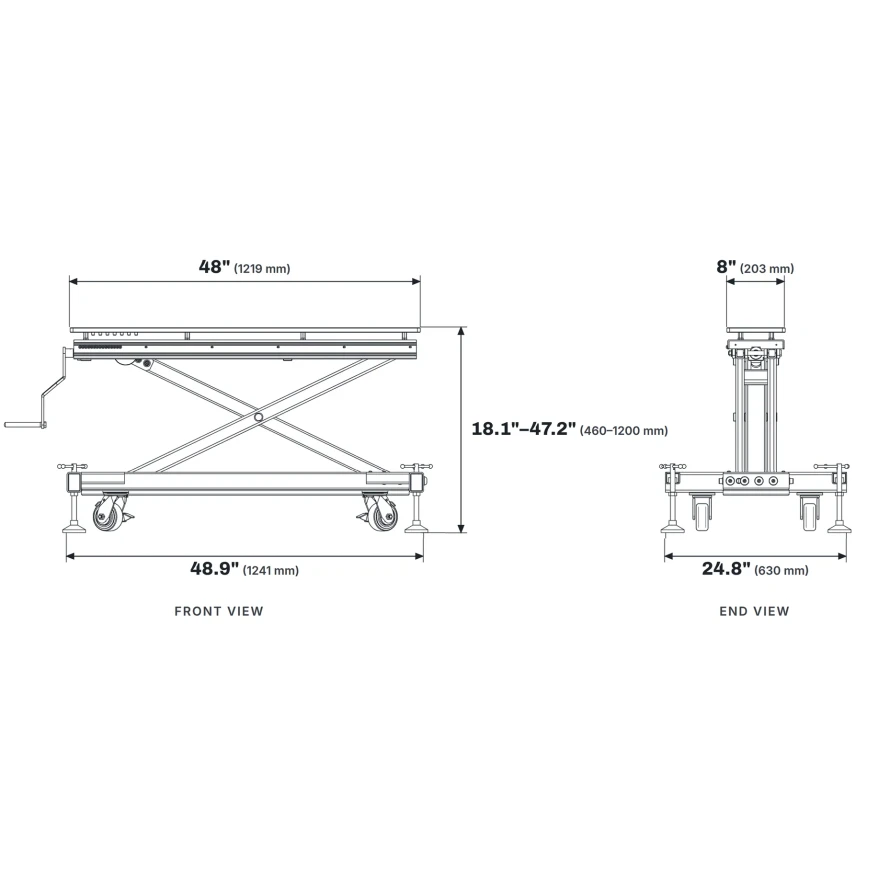

The 48" x 8" model adjusts from 18.1" to 47.2", while the 60" x 10" model adjusts from 19.3" to 53.1".

This height adjustment is useful when working with long materials, structural components, welded assemblies, and projects that require changes in working position.

The scissor lift provides stable vertical adjustment using a mechanical crank system without requiring a hydraulic pump.

Hand-Crank or Cordless Drill Operation

The Scissor Lift Sawhorse features a removable hand crank for manual height adjustment.

For faster adjustments, the handle can be removed to expose a 3/4" (19mm) hex drive shaft that accepts a compatible socket and cordless drill.

Two Ways to Adjust Height:

• Manual Hand Crank: Rotate the included crank handle to raise or lower the tabletop.
• Cordless Drill: Remove the crank handle and use a compatible cordless drill with a 3/4" socket to operate the lift mechanism.

Note: The removable hand crank is included. The cordless drill and 3/4" socket are not included.

5/8" Fixturing Tabletop

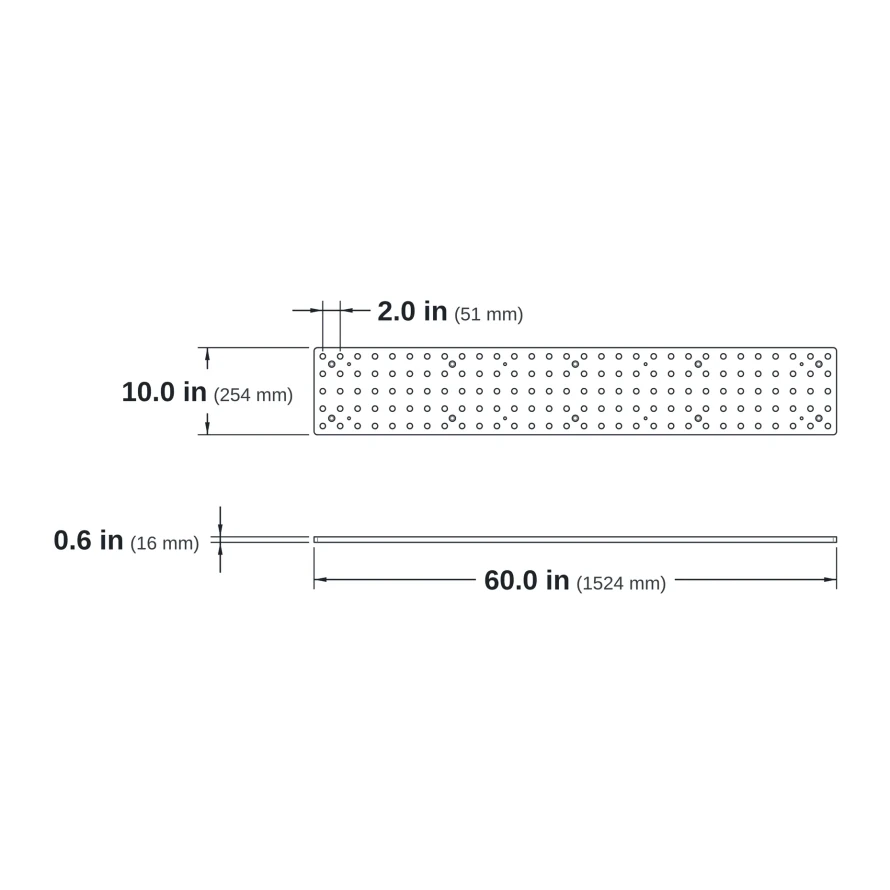

The sawhorse features a 5/8" (16mm) thick steel tabletop with precision-spaced 5/8" diameter holes on a 2" grid.

This fixturing pattern allows the sawhorse to work with compatible Strong Hand Tools 5/8" fixturing accessories, including clamps, stops, V-blocks, and other positioning tools.

The 48" model features 96 fixturing holes, while the 60" model includes 150 fixturing holes.

This system provides flexibility for securing workpieces and positioning materials during welding, fabrication, and assembly.

Nitrided Steel Tabletop

The tabletop is manufactured from 45 steel, equivalent to AISI 1045, with a nitrided and oxidized surface treatment.

This treatment helps improve surface hardness and resistance to wear and corrosion in demanding shop environments.

The manufacturer specifies a tabletop flatness finish of 0.012" (0.3mm) after surface treatment.

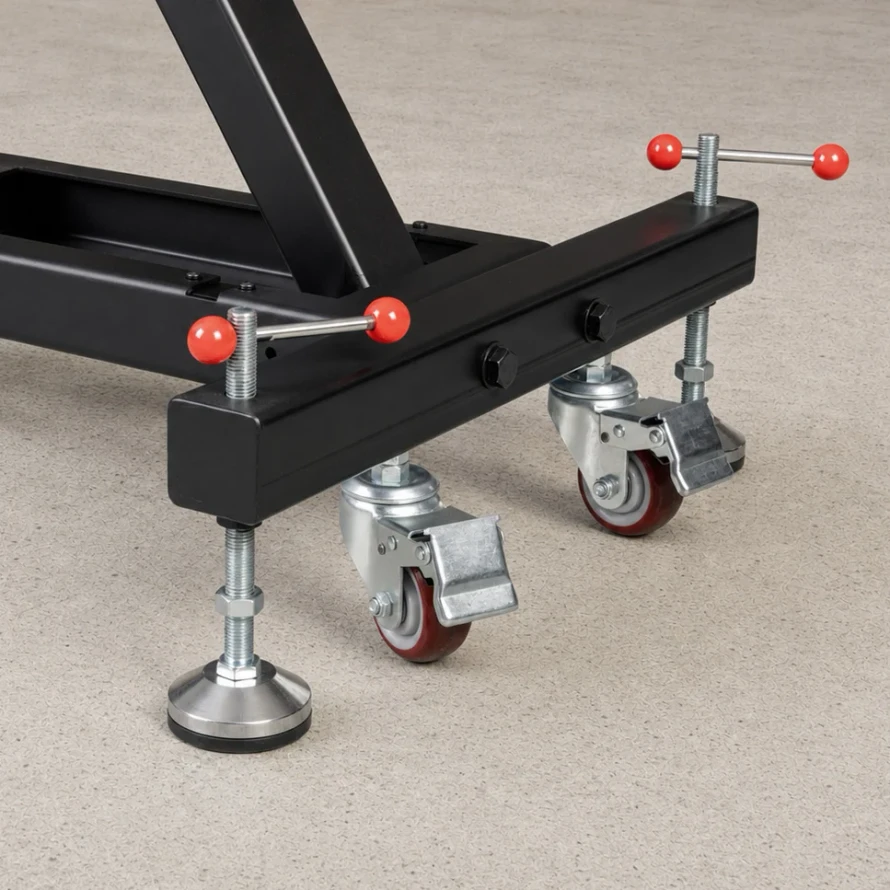

Mobile Design with Locking Casters

Four 3" locking polyurethane casters allow the Scissor Lift Sawhorse to be moved around the fabrication shop.

Once positioned, the casters can be locked and the four rubber-padded leveling feet lowered to provide additional stability.

Mobility Features:

• Four 3" polyurethane casters
• Foot-operated caster brakes
• Four screw-down leveling feet
• Rubber-padded leveling feet
• Powder-coated steel base

Always position the sawhorse on a suitable, level surface and secure the casters and leveling feet before loading or using the work surface.

Optional 12-Piece Clamping Kit

For additional fixturing versatility, select either the SHT-TSC4808-K1 or SHT-TSC6010-K1 configuration.

These options include the Strong Hand Tools TSB-A Scout Series 12-Piece Clamping Kit, designed for use with the sawhorse's 5/8" fixturing system.

The kit provides essential clamping and positioning tools for securing workpieces during fabrication.

12-Piece Clamping Kit Contents

Clamping Kit Details:

• Inserta Clamps: T-handle clamps with a 6.5" holding capacity and 300 lb. clamping force.
• Inserta Pliers: 3.3" capacity pliers designed to fit compatible 5/8" fixturing holes.
• Round Stops: 1" diameter positioning stops for aligning and locating workpieces.
• Aluminum V-Blocks: 120-degree V-blocks for positioning round stock and tubing.
• Storage Pouch: 12" x 8" nylon zippered pouch for storing the clamping accessories.

Important: The 12-piece count refers to the clamping and positioning tools. The storage pouch is an additional included accessory.

Clamping Kit Availability: Included only with the -K1 configurations. It is not included with SHT-TSC4808 or SHT-TSC6010.

What's Included?

Each Scissor Lift Sawhorse includes the following components:

• 1 Scissor Lift Sawhorse in the selected tabletop size
• 1 Installed 5/8" steel fixturing tabletop
• 1 Mechanical scissor lift assembly
• 1 Removable hand crank
• 4 Locking polyurethane casters
• 4 Adjustable leveling feet
• 12-piece TSB-A Clamping Kit with storage pouch, if the selected SKU ends in -K1

Note: Standard models do not include clamps or fixturing accessories. A cordless drill and the required 3/4" socket are sold separately.

Shipping & Packaging Information

The Scissor Lift Sawhorse ships assembled in a protective plywood crate with a built-in pallet.

The tabletop, casters, and leveling feet are installed before shipment. The removable hand crank is packed separately inside the crate.

Shipping Note: The manufacturer-listed crated weights and dimensions are for the base sawhorse models. Shipping weight and packaging may vary when the optional clamping kit is included.

Common Applications

• Welding and fabrication shops
• Height-adjustable workpiece positioning
• Steel fabrication
• Structural component assembly
• Tube and pipe fabrication
• Long workpiece support
• Metal fabrication and fixturing
• Machine shop assembly
• Industrial maintenance and repair
• Prototype fabrication
• Manufacturing workstations
• General welding table applications

Safe Operation

• Do not exceed the rated load capacity for the selected model.
• Keep the workpiece properly supported and positioned on the tabletop.
• Operate the sawhorse on a stable, level surface.
• Lock the casters and lower the leveling feet before using the work surface.
• Keep hands clear of moving scissor lift components.
• Do not use the sawhorse to lift personnel.
• Follow the manufacturer's instructions when using a cordless drill for height adjustment.
• Use only compatible fixturing clamps and accessories.

Frequently Asked Questions

What is the Strong Hand Tools Scissor Lift Sawhorse?
It is a height-adjustable welding sawhorse featuring a mechanical scissor lift and a 5/8" fixturing tabletop. It is designed to support and position workpieces during welding, fabrication, and assembly.

What sizes are available?
Choose between a 48" x 8" tabletop and a 60" x 10" tabletop.

What is the weight capacity of each model?
The 48" model supports up to 375 lbs. (170kg). The 60" model supports up to 595 lbs. (270kg).

How high does the sawhorse lift?
The 48" model adjusts from 18.1" to 47.2". The 60" model adjusts from 19.3" to 53.1".

How do I raise and lower the tabletop?
Use the included removable hand crank to operate the mechanical scissor lift. A compatible cordless drill can also be used with the appropriate 3/4" socket.

Can I use a cordless drill instead of the hand crank?
Yes. The sawhorse features a 3/4" (19mm) hex drive for operation with a compatible cordless drill and socket.

Does the sawhorse use hydraulic lifting?
No. The height adjustment is operated by a mechanical scissor lift using a hand crank or compatible drill drive.

What size are the fixturing holes?
The tabletop features 5/8" (15.88mm) diameter holes on a 2" (50.8mm) grid.

How many fixturing holes are on each tabletop?
The 48" tabletop has 96 holes, while the 60" tabletop has 150 holes.

Will Strong Hand Tools 5/8" clamps work with this sawhorse?
Yes. The tabletop is designed for compatible Strong Hand Tools 5/8" fixturing clamps and accessories.

What is the tabletop made from?
The tabletop is manufactured from 5/8" thick 45 steel with a nitrided and oxidized surface treatment.

What is the benefit of the nitrided tabletop?
The nitrided surface treatment improves resistance to wear and corrosion, helping protect the tabletop during regular shop use.

Does the sawhorse have wheels?
Yes. Each model includes four locking 3" polyurethane casters for mobility.

Does it have leveling feet?
Yes. Four screw-down rubber-padded leveling feet help stabilize the sawhorse once it is positioned.

What is included with the -K1 configurations?
The SHT-TSC4808-K1 and SHT-TSC6010-K1 configurations include the sawhorse and a TSB-A 12-piece clamping kit with a storage pouch.

What is included in the 12-piece clamping kit?
The kit includes 2 Inserta Clamps, 2 Inserta Pliers, 4 round stops, and 4 aluminum V-blocks, plus a nylon storage pouch.

Are clamps included with the standard sawhorse?
No. The standard SHT-TSC4808 and SHT-TSC6010 configurations do not include the 12-piece clamping kit.

Does the sawhorse arrive assembled?
Yes. The sawhorse ships assembled with the tabletop, casters, and leveling feet installed. The removable crank handle is packed separately for installation.

How is the sawhorse packaged for shipping?
The sawhorse ships in a protective plywood crate on a built-in pallet. Manufacturer-listed crated weights are approximately 280 lbs. for the 48" model and 400 lbs. for the 60" model.

Can the sawhorse be used for welding and fabrication?
Yes. The adjustable work surface and 5/8" fixturing system make it suitable for compatible welding, fabrication, assembly, and workpiece positioning applications.
