Description
BuildPro™ Table Mount C-Clamp (Choose Clamp Size From Options Above)
| Part # | SHT-PTT634K | SHT-PTT934K | SHT-PTT956K |
|---|---|---|---|
| Throat Depth | 3" (76.2mm) | 3-3/8" (85.7mm) | 6-1/8" (155.5mm) |
| Handle Length | 6" (152mm) | 10-1/2" (266.7mm) | 10-1/2" (266.7mm) |
| Opening Size | 4" (101.6mm) | 4" (101.6mm) | 4-3/4" (120.6mm) |
| Weight | 0.9lbs (0.4kg) | 0.9lbs (0.4kg) | 1.6lbs (0.7kg) |

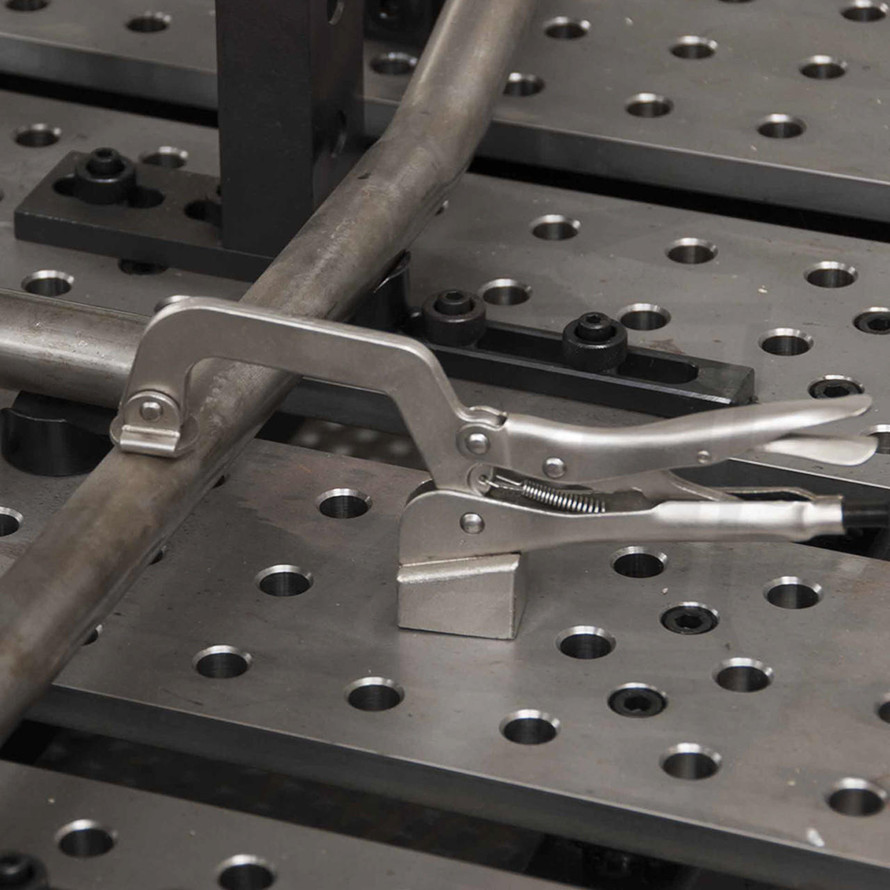

Insert the Table Mount C-Clamp into any hole on the tabletop for fast push-down clamping. The Clamp instantly locks into place, ready for use.
Mount on the Right Angle Brackets, Riser Blocks, or Clamping Squares for push down clamping at an elevated height for taller workpieces.
The patented rear crank handle allows clamp pressure adjustment while the clamp is in position. Use the crank handle to pre-set the clamp opening in repetitious clamping applications.
Specifications
View AllCloseAdditional Information
|
Accessory Type:
|
Clamps
|
|
Table Brand:
|
Alpha 5/8
|
|
Table Brand:
|
BuildPro
|
|
Table Hole Dia.:
|
5/8"
|
