Mobile Welding & Fixturing Table, 5/8" System (Select your tabletop size, finish, and clamping kit option from the options above.)

Mobile welding workstation with a precision fixturing tabletop, aluminum frame, locking casters, and built-in tool storage.
The Tech Cart puts your welding work surface and essential fixturing tools together in one rolling workstation. Designed for welding, metal fabrication, assembly, and shop organization, this cart provides a convenient way to bring your worktable and accessories directly to the job.

Choose between a 24" x 18" or 36" x 24" steel tabletop, each equipped with 5/8" fixturing holes on a 2" grid. Both sizes are available with either a 10mm manganese phosphate tabletop or an upgraded 12mm nitrided tabletop.

The Tech Cart features a 6061 aluminum extrusion frame, four locking swivel casters, and yellow steel pegboard panels at both ends for keeping your frequently used tools within reach.

For additional fixturing capability, select a configuration that includes the Strong Hand Tools TSB-A 12-Piece Clamping Kit.

Key Features

• Mobile Welding Workstation: Combines a fixturing tabletop and tool storage on a rolling cart.
• Two Tabletop Sizes: Choose from 24" x 18" or 36" x 24" working surfaces.
• Two Steel Tabletop Finishes: Available in 10mm manganese phosphate or 12mm nitrided steel.
• 5/8" Fixturing System: Compatible with appropriate Strong Hand Tools 5/8" clamps, stops, and positioning accessories.
• Precision Hole Pattern: 5/8" diameter holes on 2" centers provide convenient fixturing locations.
• Double-Sided Tabletop: Steel tabletop can be removed, flipped, and reinstalled using the locating bushings.
• 36.5" Working Height: Provides a consistent work surface height on both cart sizes.
• 6061 Aluminum Frame: Heavy-duty 40 x 40mm extrusion construction supports the workstation.
• Four Locking Swivel Casters: Allow the cart to be repositioned and secured on suitable shop floors.
• Dual Tool Storage Pegboards: Yellow steel pegboards at both ends provide accessible tool storage.
• Four Pegboard Hooks Included: Two double hooks and two single hooks for organizing compatible accessories.
• Optional 12-Piece Clamping Kit: Add Inserta Clamps, Inserta Pliers, stops, and V-blocks for expanded workholding capability.

Choose Your Tech Cart Configuration

The Strong Hand Tools Tech Cart is available in two sizes, with two tabletop finishes and an optional clamping kit.

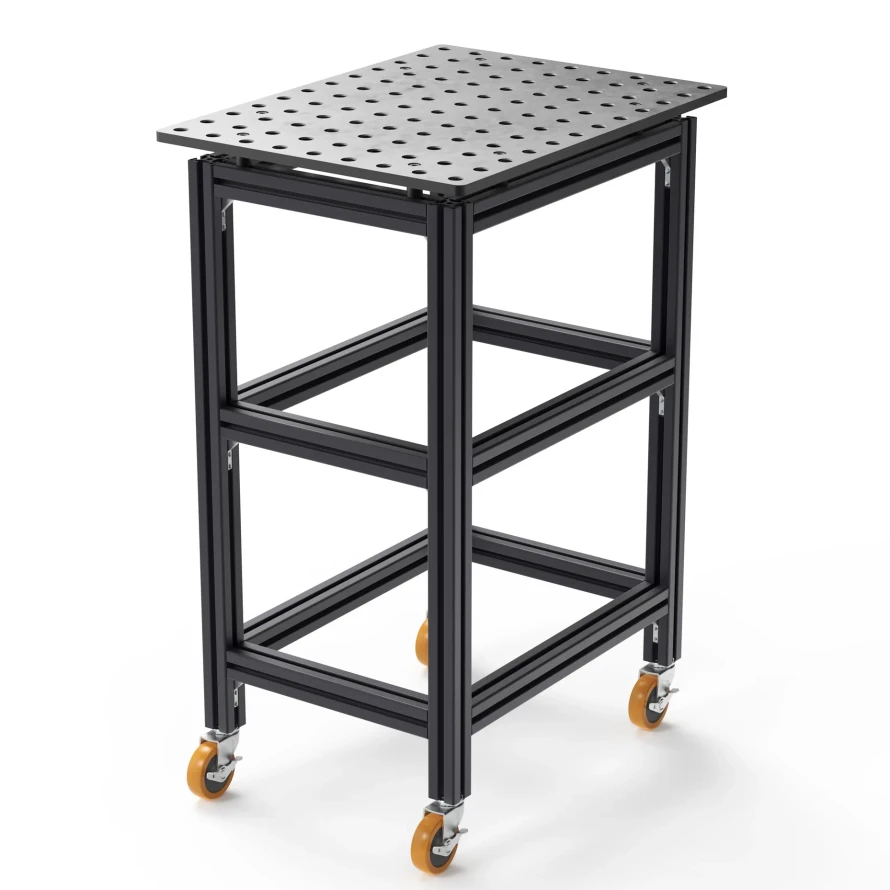

24" x 18" Tech Cart
The compact Tech Cart provides a practical fixturing surface for smaller welding projects, component assembly, repair work, and shops where available floor space is limited.

Its tabletop includes 108 fixturing holes arranged in a 12 x 9 pattern.

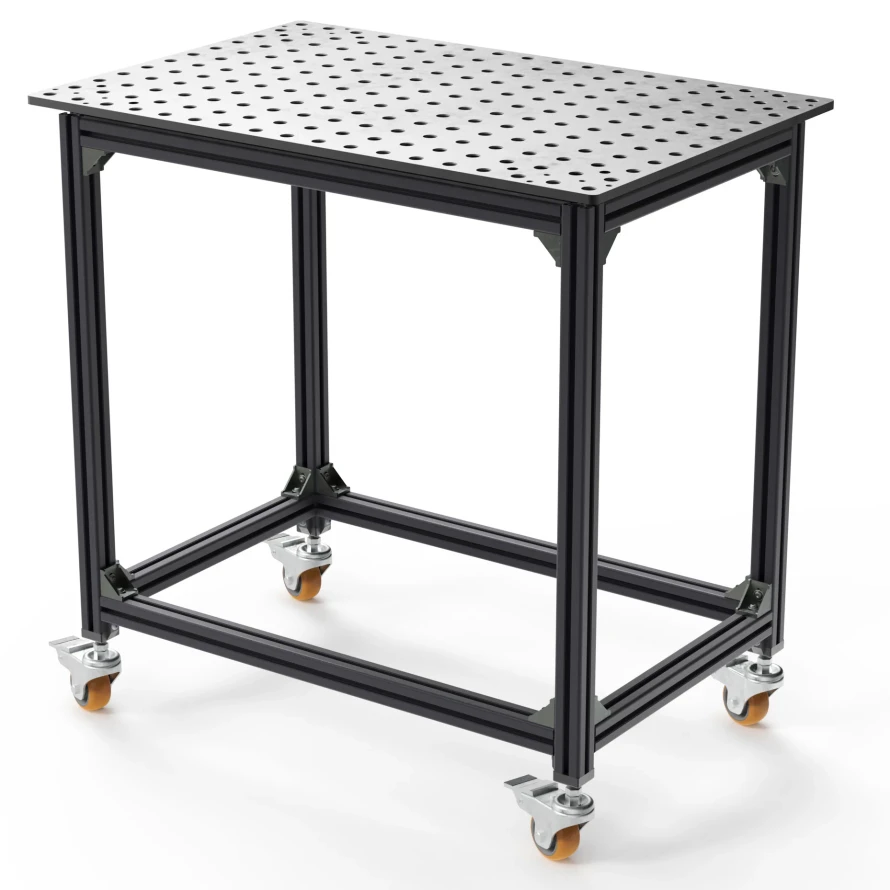

36" x 24" Tech Cart
The larger Tech Cart provides additional workspace for fabrication projects, larger assemblies, and applications requiring more fixturing positions.

Its tabletop includes 216 fixturing holes arranged in an 18 x 12 pattern.

Both models maintain the same 36.5" working height and use the Strong Hand Tools 5/8" fixturing system.

Two Tabletop Finishes

10mm Manganese Phosphate Steel Tabletop

The standard tabletop features a 0.39" (10mm) steel plate with a manganese phosphate surface finish.

This provides a substantial steel fixturing surface for everyday welding, fabrication, and workpiece positioning applications.

The manganese phosphate treatment provides a protective finish for the steel surface.

12mm Nitrided Steel Tabletop

The upgraded tabletop features a 0.47" (12mm) steel plate with a nitrided surface treatment.

Nitriding improves surface hardness and resistance to wear, making this option useful for demanding fabrication applications where clamps, fixtures, and workpieces are frequently repositioned.

Choosing a Finish: Select the 10mm manganese phosphate tabletop for general welding and fabrication, or the thicker 12mm nitrided tabletop when additional surface wear resistance is desired.

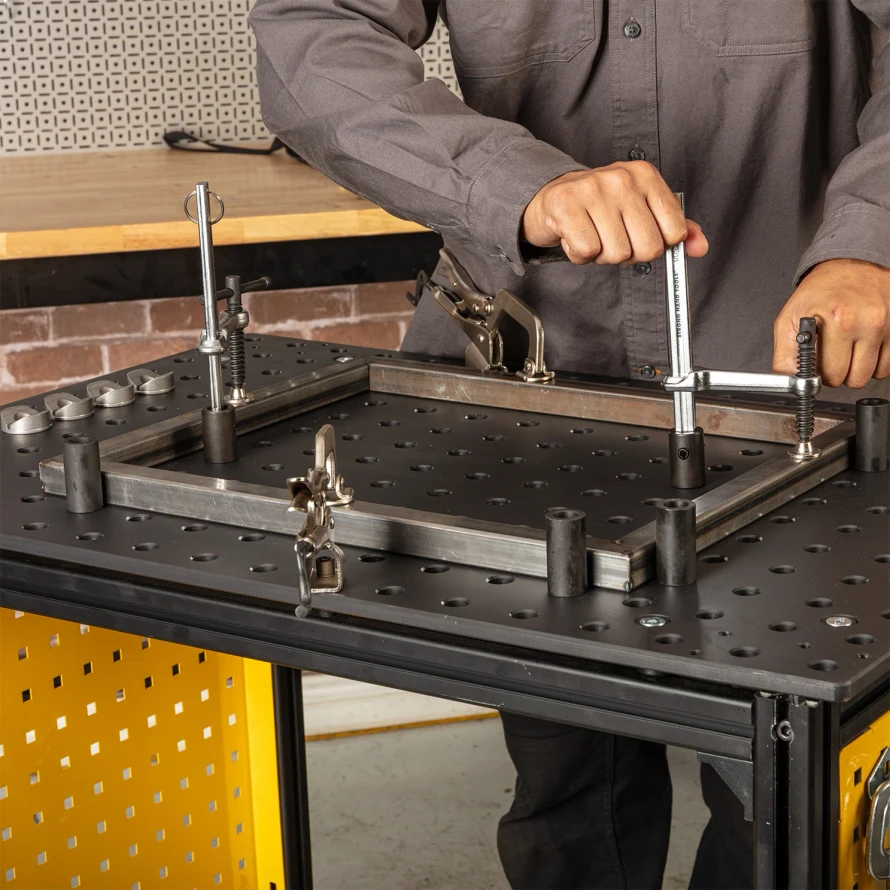

5/8" Fixturing System

The Tech Cart uses the Strong Hand Tools 5/8" fixturing system, with precision-spaced holes across the steel tabletop.

The holes allow compatible workholding components to be inserted and positioned directly on the work surface.

Compatible fixturing tools include:

• Inserta Clamps
• Inserta Pliers
• Round Stops
• Locating Stops
• V-Blocks
• Compatible 5/8" Positioning Accessories
• Other appropriate Strong Hand Tools 5/8" fixturing components

This modular system allows the workstation to be configured for different workpiece shapes, dimensions, and fabrication requirements.

Compatibility Note: Verify the specific accessory and tabletop requirements before ordering. Not all 16mm and 5/8" fixturing systems are interchangeable.

Reversible Steel Tabletop

The Tech Cart features a double-sided steel tabletop secured to the aluminum frame using eight flat-head mounting screws and locating bushings.

The tabletop can be removed, flipped, and reinstalled to use the opposite side.

Locating bushings help position the tabletop correctly when it is returned to the cart frame.

This reversible design provides additional flexibility for maintaining the working surface over time.

Important: Remove all workpieces and accessories before removing or reversing the tabletop. Follow the manufacturer's instructions and use appropriate assistance when handling the heavy steel plate.

Mobile Aluminum Frame

The Tech Cart uses a frame constructed from 40 x 40mm 6061 aluminum extrusion, secured with corner brackets.

This provides a rigid workstation structure while keeping the frame material different from the steel tabletop.

Four 3" swivel casters with brakes allow the workstation to be moved around the shop and secured at the desired working location.

Move the cart to your welding station, position it where needed, and engage the caster brakes before beginning work.

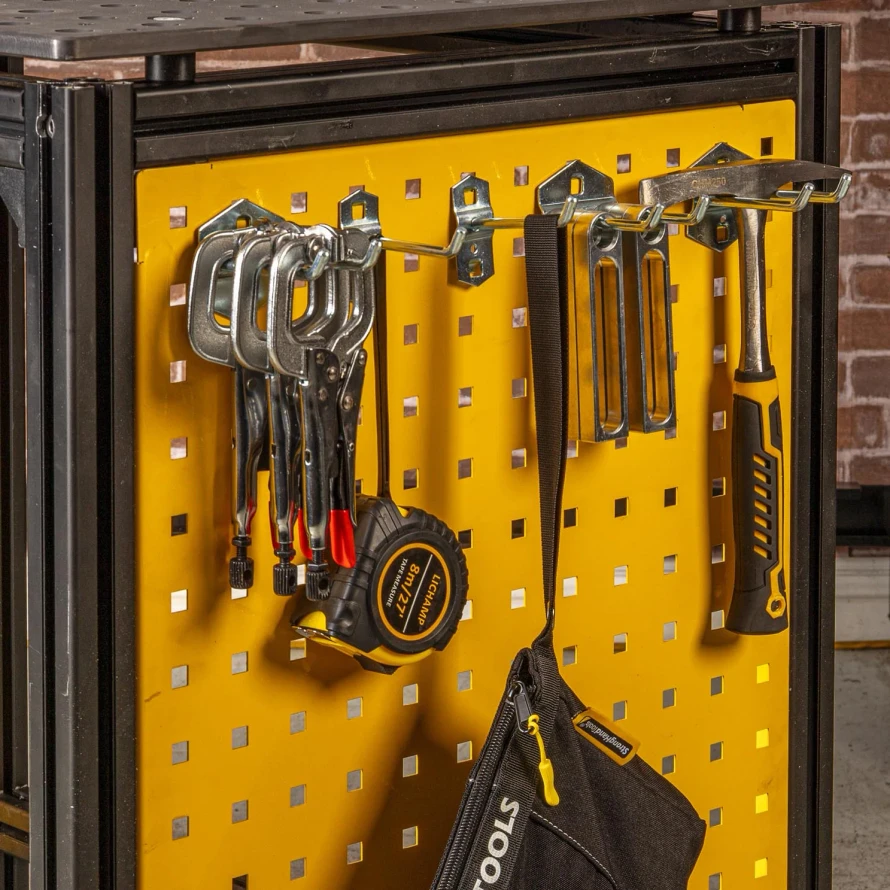

Built-In Yellow Pegboard Storage

Keeping welding tools and fixturing accessories organized helps reduce the time spent searching for the next clamp or positioning tool.

Each Tech Cart includes two yellow powder-coated steel pegboard panels, one at each short end of the workstation.

The pegboards provide accessible storage for compatible tools and accessories without requiring a separate wall-mounted storage system.

Four pegboard hooks are included:

• 2 Double Pegboard Hooks
• 2 Single Pegboard Hooks

The hooks can be repositioned to accommodate different tool arrangements and storage needs.

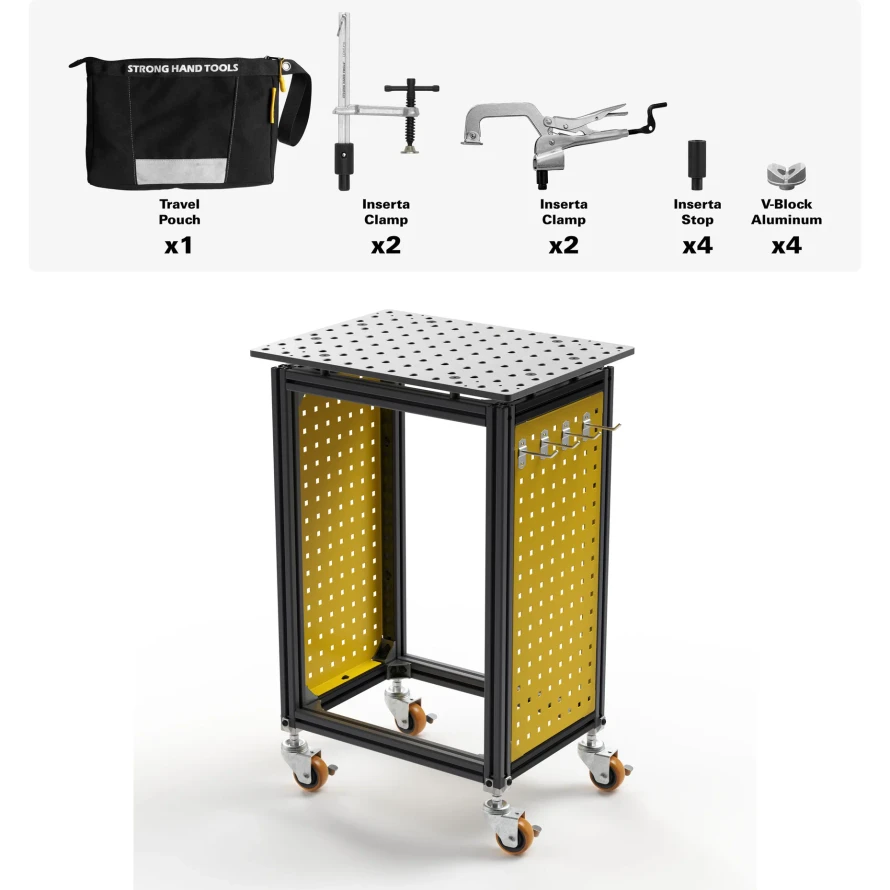

Optional 12-Piece Clamping Kit

For customers looking to expand their workholding capabilities, the Tech Cart is available with the Strong Hand Tools TSB-A 12-Piece Clamping Kit.

This kit provides a practical assortment of clamps, pliers, stops, and V-blocks designed for the 5/8" tabletop system.

The optional clamping kit includes:

Kit Contents: Twelve fixturing tools plus one nylon storage pouch.

Important: The TSB-A Clamping Kit is included only when selecting the configuration with the 12-piece kit. Cart-only configurations do not include the clamps, pliers, stops, or V-blocks.

Inserta Clamps and Pliers

The optional TSB-A kit includes two Inserta Clamps and two Inserta Pliers for securing workpieces directly to the compatible tabletop.

The Inserta Clamps feature a T-handle design with a 6.5" holding capacity and 300 lb. clamping force.

The Inserta Pliers provide an additional workholding option with a 3.3" capacity.

These components can be arranged in compatible fixturing holes to support different welding and assembly setups.

Stops and V-Blocks

The optional clamping kit also includes four round stops and four aluminum V-blocks.

Round Stops: Help establish repeatable workpiece positioning points on the tabletop.

Aluminum V-Blocks: Feature a 120-degree V-shape for supporting compatible tubing, pipe, and other round stock.

These accessories are useful when assembling frames, positioning tubular components, or aligning parts prior to welding.

What's Included?

All Tech Cart Configurations Include:

• 1 Strong Hand Tools Tech Cart Aluminum Frame
• 1 Steel Fixturing Tabletop in the Selected Size and Finish
• 8 Tabletop Mounting Sets with M8 Flat-Head Screws, Locating Bushings, and Washers
• 4 Swivel Casters with Brakes
• 2 Yellow Steel Pegboard Panels
• 2 Double Pegboard Hooks
• 2 Single Pegboard Hooks

Configurations with the 12-Piece Clamping Kit Also Include:

• 2 UDN5150 Inserta Clamps
• 2 PTT634K Inserta Pliers
• 4 T54205 Round Stops
• 4 T54216 Aluminum V-Blocks
• 1 TSB366-P Nylon Storage Pouch

Not Included: Welding machine, TIG or MIG torch, workpieces, and additional fixturing accessories not specifically identified above.

Common Applications

• TIG welding and fabrication
• MIG welding and fabrication
• Mobile welding workstations
• Metal component assembly
• Small and medium fabrication projects
• Precision workpiece fixturing
• Tube and pipe fabrication
• Prototype development
• Industrial maintenance and repair
• Welding clamp and accessory organization
• Manufacturing workstations
• Garage and fabrication shop setups

Frequently Asked Questions

What is the Strong Hand Tools Tech Cart?
The Tech Cart is a mobile welding workstation combining a steel fixturing tabletop, aluminum frame, locking casters, and built-in pegboard storage.

What tabletop sizes are available?
The Tech Cart is available with a 24" x 18" or 36" x 24" tabletop.

What tabletop finishes can I choose?
Choose between 10mm manganese phosphate steel or 12mm nitrided steel.

What is the working height?
Both Tech Cart sizes have a working height of 36.5" (927mm).

What size are the fixturing holes?
The steel tabletop uses 5/8" diameter holes on a 2" grid.

How many fixturing holes are included?
The 24" x 18" tabletop has 108 holes. The 36" x 24" tabletop has 216 holes.

Is the Tech Cart frame made from steel?
No. The frame is constructed from 6061 aluminum extrusion. The tabletop is steel.

Can the tabletop be flipped over?
Yes. The tabletop is double-sided and can be removed, flipped, and reinstalled using the supplied mounting hardware and locating bushings.

Does the Tech Cart include wheels?
Yes. Both models include four 3" swivel casters with brakes.

Are pegboards included?
Yes. Each Tech Cart includes two yellow steel pegboard panels, one at each short end.

How many pegboard hooks are included?
Each cart includes four hooks: two double hooks and two single hooks.

What is the difference between the two tabletop finishes?
The manganese phosphate option uses a 10mm steel plate with a protective phosphate finish. The nitrided option uses a thicker 12mm plate with a surface treatment designed to improve wear resistance.

Is the 12-piece clamping kit included?
Only when selecting the configuration with the optional clamping kit. Standard cart-only options do not include the kit.

What comes in the optional clamping kit?
The TSB-A kit includes 2 Inserta Clamps, 2 Inserta Pliers, 4 round stops, and 4 aluminum V-blocks, plus a nylon storage pouch.

Can I purchase the clamping kit separately?
Yes. The Strong Hand Tools TSB-A 12-Piece Clamping Kit is also available as a separate accessory.

Can I use other Strong Hand Tools clamps with this tabletop?
Yes. The tabletop is designed for compatible Strong Hand Tools 5/8" fixturing accessories.

Does the Tech Cart come fully assembled?
The steel tabletop ships separately from the frame with its mounting hardware. Complete frame assembly requirements should be confirmed with the manufacturer.

What is the maximum load capacity?
The manufacturer has not published a confirmed rated load capacity for the current Tech Cart models. Contact Arc-Zone for assistance with application-specific loading requirements.

How do I select the correct Tech Cart?
Choose the tabletop size that fits your workspace, select either the manganese phosphate or nitrided finish, and decide whether to include the optional clamping kit.

Are welding equipment and additional accessories included?
No. Welding machines, welding torches, workpieces, and accessories not specifically identified in the selected configuration are sold separately.
