Description
CK-150V FX

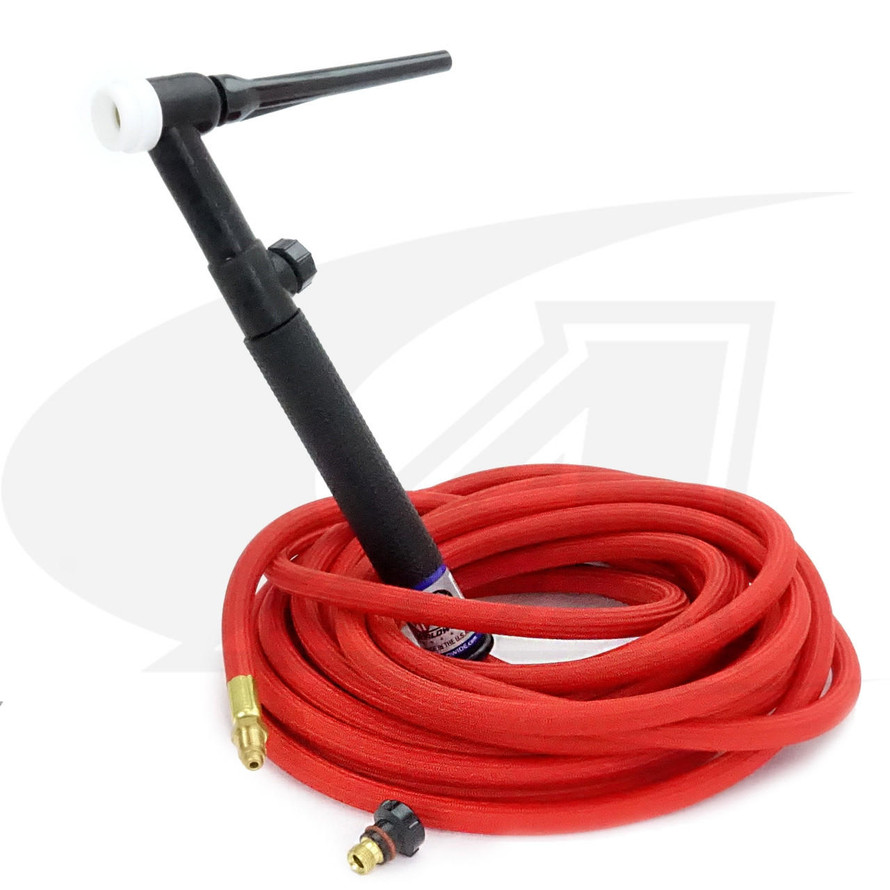

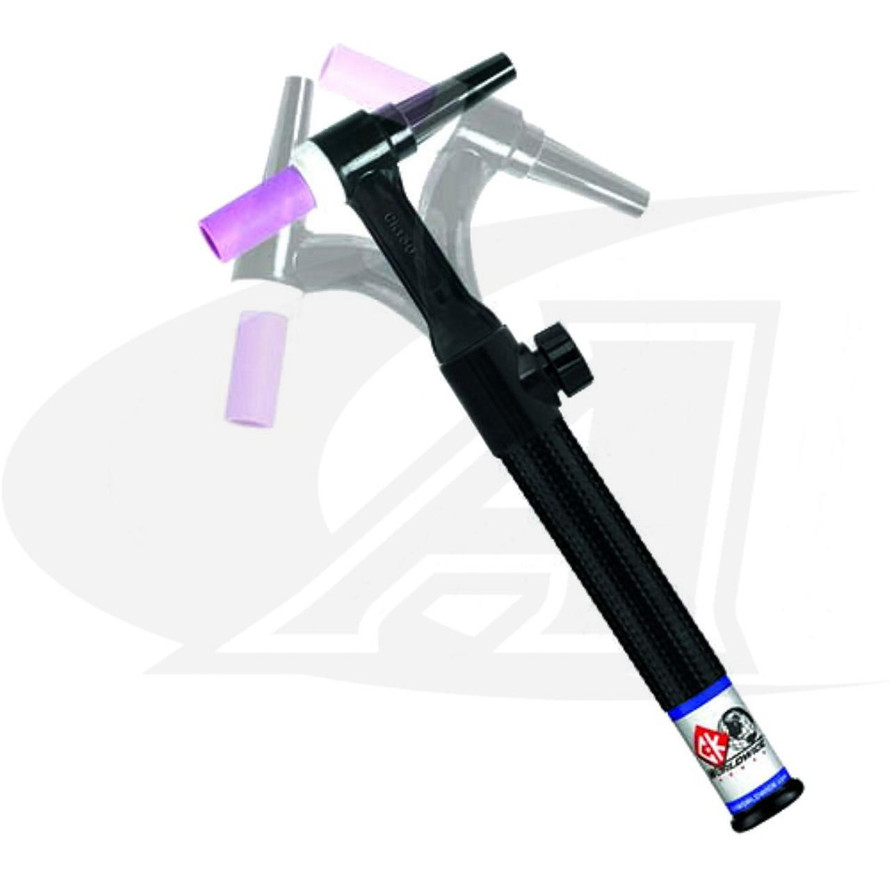

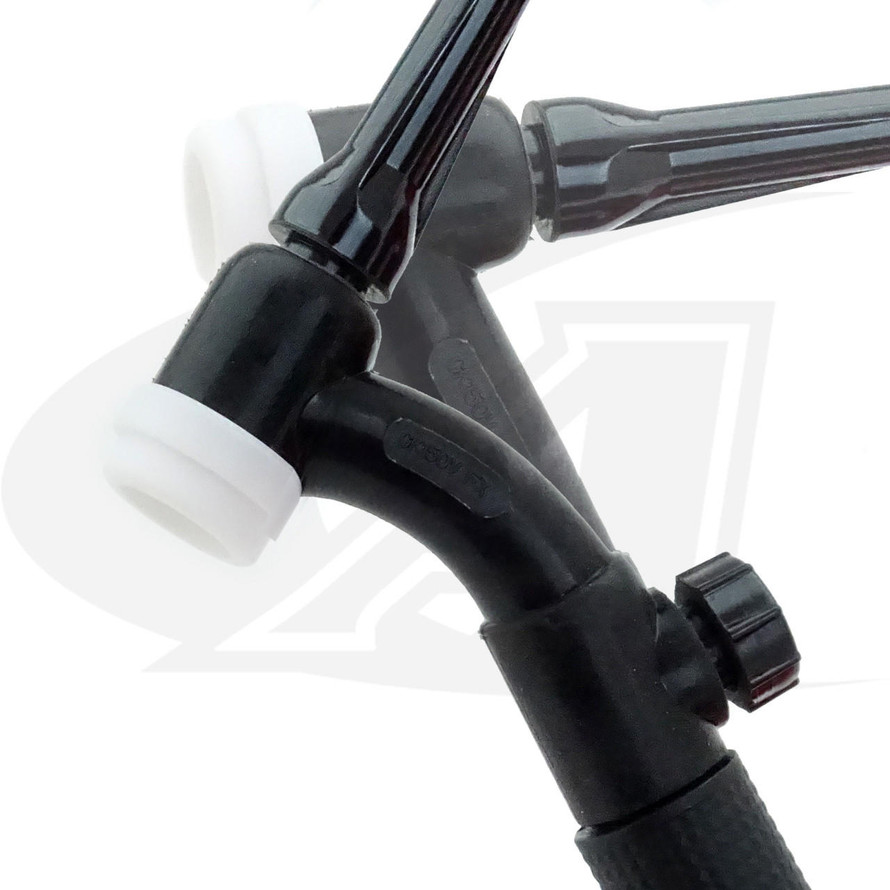

3 Series Compact design 150 Amp Air-Cooled TIG Torch Body with Flexible 70° Head and Gas Valve for general purpose welding. The CK-150V FX series is a well-balanced, lightweight torch body.
Complete torch packages include One-Piece SuperFlex Power Cable.
Torch uses standard 3-Series (17/18/26 series) front end parts and has a 3/8"-24RH Male power connection which uses standard 150A air-cooled power cables: CK-1512PCSF, CK-1525PCSF, CK-1550PCSF, 57Y01R, 57Y03R, or 57Y03R-L50.
| Specifications: | CK-150V FX | |||
|---|---|---|---|---|
| Amperage | 150 Amp ACHF or DCSP @100% Duty Cycle | |||
| Air-Cooled body | 70o head | |||
| Electrode capacity | .020" (.5mm) -- 5/32" (4.0mm) | |||
| Head size | 3 Series | |||
| Torch body weight | 5 oz. (141g) | |||
| Torch length | 9.25" (234.9mm) | |||
| Handle diameter | 9/10" (22.9mm) | |||
| Power Connection | Torch: 3/8"-24RH Female | Machine: 3/8"-24RH Female | ||
| Part # | CK-150V FX | CK-150V FX-HDL | CK-1512VHSF FX | CK-1525VHSF FX |
| Handle | N/A | CK-150H | CK-150H | CK-150H |
| Cable Type | N/A | N/A | One-Piece | One-Piece |
| Cable Length | N/A | N/A | 12.5' (3.8m) | 25' (7.6m) |
Specifications
View AllCloseAdditional Information
|
TIG Torch Type:
|
Gas / Air Cooled
|
|
TIG Process:
|
Hand Held
|
|
Torch Model:
|
17 Style
|
|
Amperage Rating:
|
150 - 200 Amp
|
