CK-20 FX

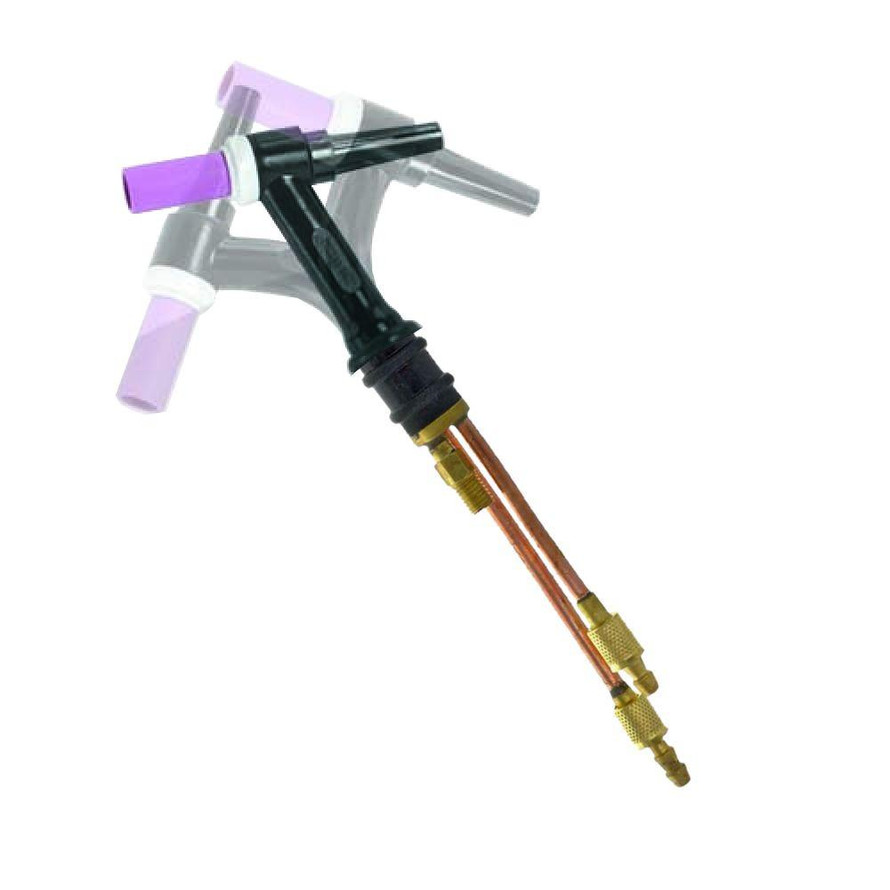

2 Series Compact 250 Amp Water-Cooled TIG Torch Body with Flexible 70o Head. Complete torch packages include SuperFlex Power, Gas & Water Cables.
Torch body uses 2-Series (9/20 Series) front end parts and has a standard 1/4"-28RH Male power connection that uses standard, 2-series (20-series) 250A water-cooled power, water, & gas lines.
The CK-200 torch is interchangeable with CK-20, WP-20, and other 20-Series TIG Torches.
Specifications: | CK-20 FX | |||
---|---|---|---|---|
Amperage | 250 amps ACHF or DCSP @ 100% | |||
Water-Cooled body | 70o head | |||
Electrode capacity | .020" (.5mm) -- 1/8" (3.2mm) | |||
Head size | 2 Series | |||
Torch body weight | 3oz. (190g) | |||
Torch length | 7.5" (190mm) | |||
Handle diameter | 3/4" (190mm) | |||
Power Connection | 7/8"-14LH Male | |||
Gas Connection | 5/8"-18RH Male | |||
Water Connection | 5/8"-18LH Male | |||
Part # | CK-20 FX | CK-20 FX-HDL | CK-20-12SF FX | CK-20-25SF FX |
Handle | N/A | CK-200H | CK-200H | CK-200H |
Cable Material | N/A | N/A | Super Flex | Super Flex |
Cable Length | N/A | N/A | 12.5' (3.8m) | 25' (7.6m) |
Have a question? contact us for expert help
(3) Reviews
-
Ive loved my ck20fx. ive been using it a lot for…
ive loved my ck20fx. ive been using it a lot for anodized aluminum welding and stainless/mild steel . the only regret i have is that i didnt get the swivel head water cooled torch, that thing is the s**t!
Chase L. | Dec 16th 2021
-
Was happy with my purchase at first. While I was…
Was happy with my purchase at first. While I was at the welding table all was good.. then had some race car chassis work come in. Under the car welding chromoly tubing joints, I noticed I was laying in a huge puddle of coolant.. the hose at the torch ruptured and it wasted a gallon of coolant. Time was wasted on clean up and switching back to my air cooled torch and hose. Time is money at least in my world..and both were wasted.. not happy and would not recommend this product to any serious welder.
Steven F. | Sep 30th 2021
-
Rated at 250A but doesn't flow enough to suit…
rated at 250A but doesn't flow enough to suit fronius 230A machine. low flow shut downs.....should have got the CK230 torch. Please update your website to warn others before they make the same financial mistake i did
Wayne K. | Jul 10th 2021
