Description
CK-300V RG
3 Series 350 Amp Water-Cooled TIG Torch Body with Rigid 70o Head with Built-In Gas Valve. Complete torch packages include SuperFlex Power, Gas & Water Cables.
Torch body uses 3-Series (17/18/26 Series) front end parts and has a standard 3/8"-20LH Female power connection that uses standard, 3-series (18-series) water-cooled power, water, & gas lines.
| Specifications: | CK-300V RG | |||
|---|---|---|---|---|
| Amperage | 350 Amp ACHF or DCSP @100% Duty Cycle. | |||
| Water-Cooled body | 70o head | |||
| Electrode capacity | .020" (.5mm) -- 5/32" (4.0mm) | |||
| Head size | 3 Series | |||
| Torch body weight | 6.5oz. (184g) | |||
| Torch length | 9.5" (241mm) | |||
| Handle diameter | 9/8" (286mm) | |||

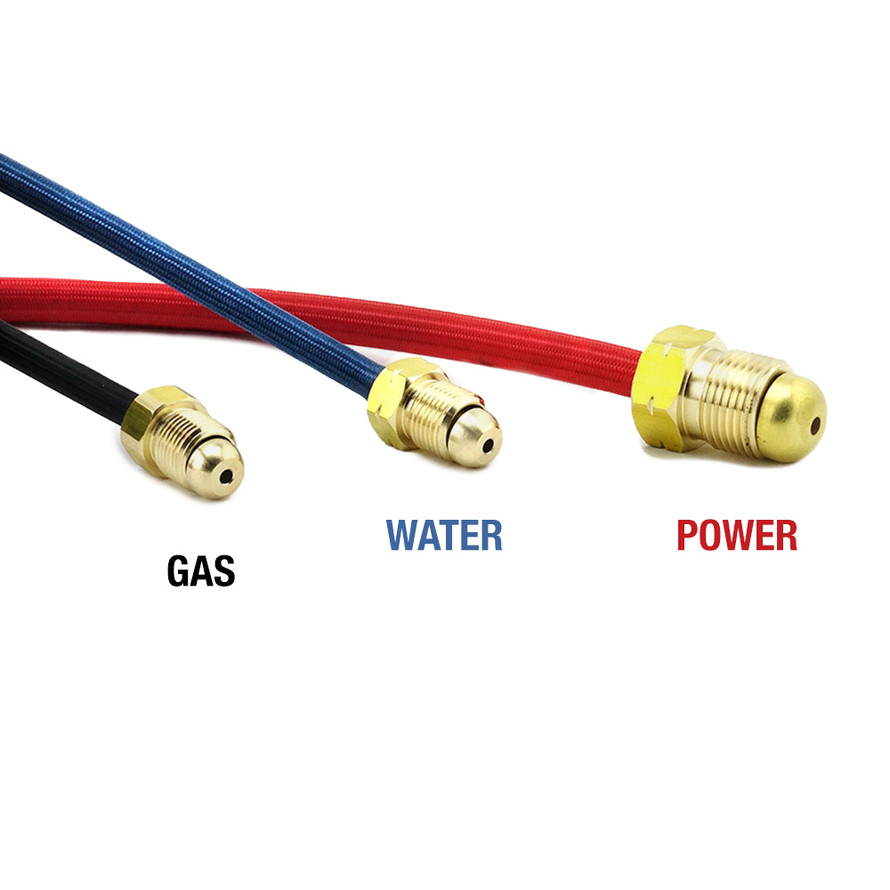

| Power Connection | 7/8"-14LH Male | |||
| Gas Connection | 5/8"-18RH Male | |||
| Water Connection | 5/8"-18LH Male | |||
| Part # | CK-300V RG | CK-300V RG-HDL | CK-312VSF RG | CK-325VSF RG |
| Handle | N/A | CK-300H | CK-300H | CK-300H |
| Cable Material | N/A | N/A | Super Flex | Super Flex |
| Cable Length | N/A | N/A | 12.5' (3.8m) | 25' (7.6m) |
Specifications
View AllCloseAdditional Information
|
TIG Torch Type:
|
Water Cooled
|
|
TIG Process:
|
Hand Held
|
|
Torch Model:
|
18 Style
|
|
Amperage Rating:
|
>350 Amp
|
