Description
CK-C150

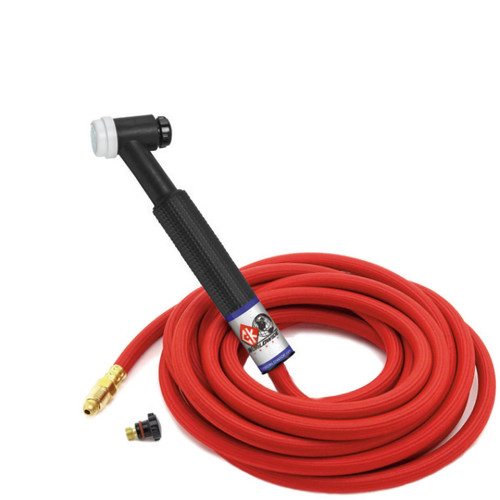

Heavy-duty Contractor Style 150 Amp Air-Cooled Rigid Head Torch Package. Includes One-Piece SuperFlex Power Cable.
Built with a bullet proof stainless steel torch head, that is virtually impossible to strip the threads out. If you've been on a job sight, you know how easy those fine threads get screwed up and the torch becomes useless. Wasting valuable time and money. this is the most durable 3-Series (17-Series) TIG torch on the market.
Torch body uses standard 3-Series (17/18/26 series) front end parts.
With a proprietary metric power connection, this torch is designed exclusively for use with a CK-1512PCCMSF, CK-1525PCCMSF, CK-1512PCNMSF, or CK-1525PCNMSF power cable.
| Specifications: | CK-C150 | |||
|---|---|---|---|---|
| Amperage | 150 Amp ACHF or DCSP @100% Duty Cycle. | |||
| Air-Cooled body | 70o head | |||
| Electrode capacity | .020" (.5mm) -- 5/32" (4.0mm) | |||
| Head size | 3 Series | |||
| Torch body weight | 4.5oz. (127g) | |||
| Torch length | 7.75" (196mm) | |||
| Handle diameter | 1" (254mm) | |||
| Power Connection | Torch: 1/8"-28 BSP | Machine: 5/8"-18RH Male | ||
| Part # | CK-C150 | CK-C150-HDL | CK-C1512HSF | CK-C1525HSF |
| Handle | N/A | CK-150H | CK-150H | CK-150H |
| Cable Material | N/A | N/A | Super Flex | Super Flex |
| Cable Length | N/A | N/A | 12.5' (3.8m) | 25' (7.6m) |
Specifications
View AllCloseAdditional Information
|
TIG Torch Type:
|
Gas / Air Cooled
|
|
TIG Process:
|
Hand Held
|
|
Torch Model:
|
17 Style
|
|
Amperage Rating:
|
150 - 200 Amp
|
