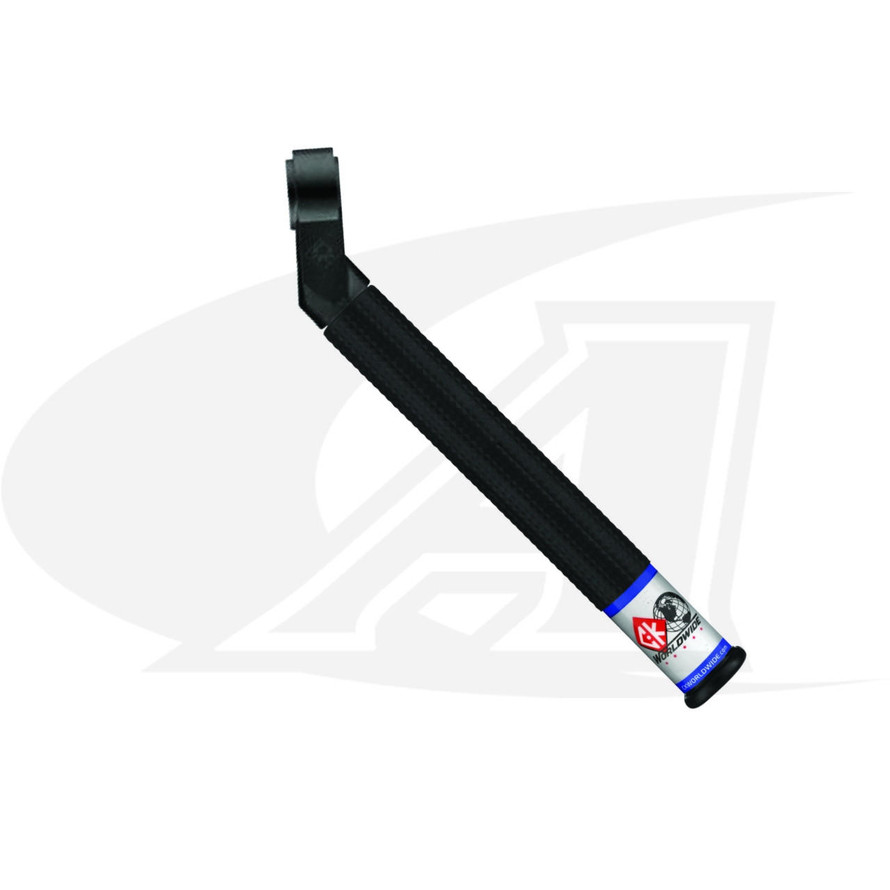

CK Worldwide® FlexLoc™ 130 Amp Air-Cooled TIG Torch (Choose Options From Above)

Compact air-cooled TIG performance with 360° variable-angle head positioning.
The CK Worldwide® FlexLoc™ 130 is a lightweight 130 Amp air-cooled TIG torch designed for welders who need greater flexibility when working around tubing, fixtures, corners, and restricted weld joints. The FlexLoc™ design provides 360° variable-angle head positioning, allowing you to adjust the torch to the work instead of forcing your hand into an awkward welding position.

Using compact 2 Series TIG consumables, the FlexLoc™ 130 provides a small front-end profile for precision welding and tight-access applications while maintaining a 130 Amp rating at 100% duty cycle.

Why Welders Choose the FlexLoc™ 130

• 360° Variable-Angle Head: Position the torch head to better match the weld joint.
• Compact 2 Series Front End: Smaller consumables provide improved access and visibility.
• 130 Amp Air-Cooled Performance: No water cooler is required.
• 100% Duty Cycle: Rated at 130 Amps ACHF or DCSP at 100% duty cycle.
• Lightweight Design: Torch body weighs only 4.75 oz. (135g) with the head installed.
• SuperFlex™ Cable Options: Complete packages are available with 12.5' or 25' one-piece SuperFlex™ power cables.

Choose the Right Configuration

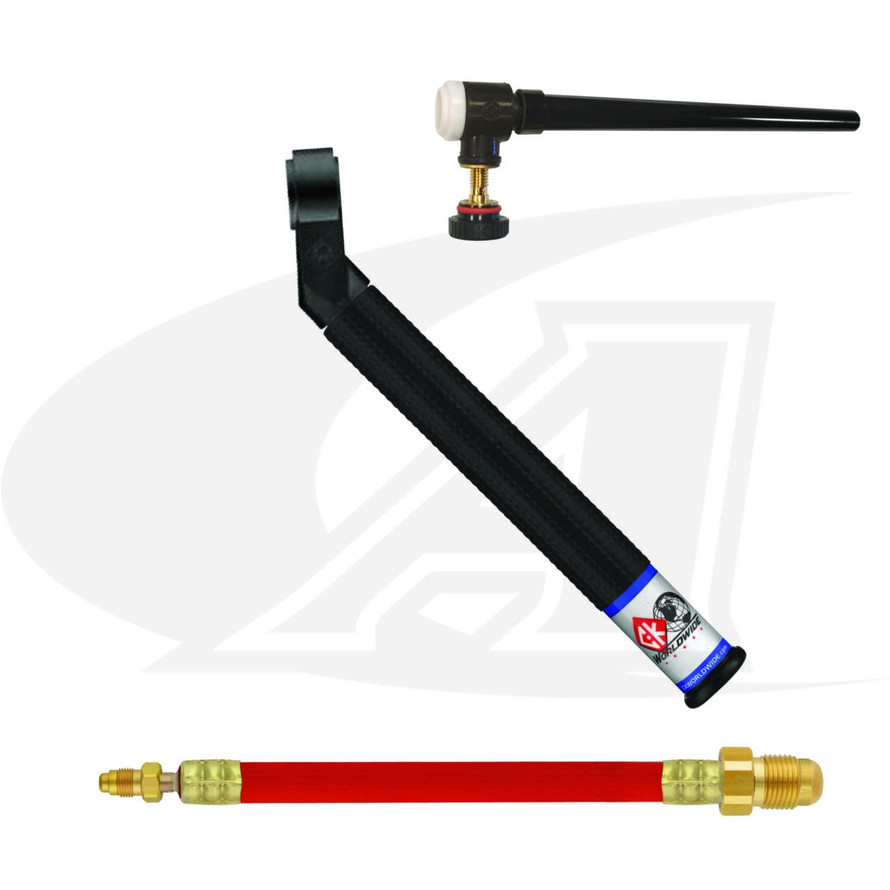

Important: Select the configuration that matches the components you need. The complete CK-FL1312SF and CK-FL1325SF packages include the 2 Series head, CK-200H handle, and one-piece SuperFlex™ power cable.

Special Power Cable Compatibility

This torch uses a special metric power connection and requires the correct CK Worldwide® power cable.

The FlexLoc™ 130 is intended exclusively for use with the following compatible SuperFlex™ power cables:

• CK-1512PCSFM – 12.5' (3.8m)
• CK-1525PCSFM – 25' (7.6m)

Compatibility Warning: Do not assume that a standard TIG torch power cable will fit this torch. Verify the power cable and machine connection before ordering replacement or individual components.

360° FlexLoc™ Positioning

The FlexLoc™ design allows the head to be repositioned around the torch body, giving the operator greater freedom to choose the torch angle that works best for the joint.

• Reach restricted or obstructed weld joints
• Position the head around tubing and fixtures
• Improve access inside fabricated assemblies
• Improve visibility of the tungsten and weld puddle
• Reduce awkward hand and wrist positioning
• Quickly adapt the torch for different welding positions

Compact 2 Series Front End

The FlexLoc™ 130 uses 2 Series TIG torch front-end components. The compact 2 Series configuration is ideal when visibility and joint access are important.

Compatible 2 Series front-end components include the appropriate:

• Collets
• Collet Bodies
• Gas Lenses
• Cups
• Back Caps
• Other compatible 2 Series consumables

Electrode Capacity

The FlexLoc™ 130 supports tungsten electrodes from .020" (0.5mm) through 1/8" (3.2mm) when configured with the appropriate 2 Series consumables.

Ideal Applications

• Precision TIG welding
• Restricted-access weld joints
• Pipe and tube fabrication
• Automotive and motorsports fabrication
• Aerospace fabrication
• Stainless steel welding
• General fabrication
• Applications where a compact, adjustable air-cooled torch is preferred

Frequently Asked Questions

Is the FlexLoc™ 130 air-cooled or water-cooled?
It is an air-cooled TIG torch, so a water cooler is not required.

What does the 360° FlexLoc™ design do?
It allows the torch head to be repositioned around the body for improved access, visibility, and operator comfort when welding difficult joints.

What consumables does this torch use?
It uses compact 2 Series TIG torch front-end consumables.

What tungsten sizes can it use?
The torch supports .020" (0.5mm) through 1/8" (3.2mm) tungsten electrodes with the appropriate 2 Series consumables.

What is the difference between CK-FL1312SF and CK-FL1325SF?
Both are complete FlexLoc™ torch packages. CK-FL1312SF includes a 12.5' (3.8m) SuperFlex™ power cable, while CK-FL1325SF includes a 25' (7.6m) SuperFlex™ power cable.

Can I use a standard TIG power cable with this torch?
No. This torch uses a special metric power connection and is intended exclusively for the CK-1512PCSFM or CK-1525PCSFM SuperFlex™ power cables.

Does the complete package include the torch head?
Yes. The complete CK-FL1312SF and CK-FL1325SF packages include the 2 Series head, CK-200H handle, and SuperFlex™ power cable.
