CK Worldwide

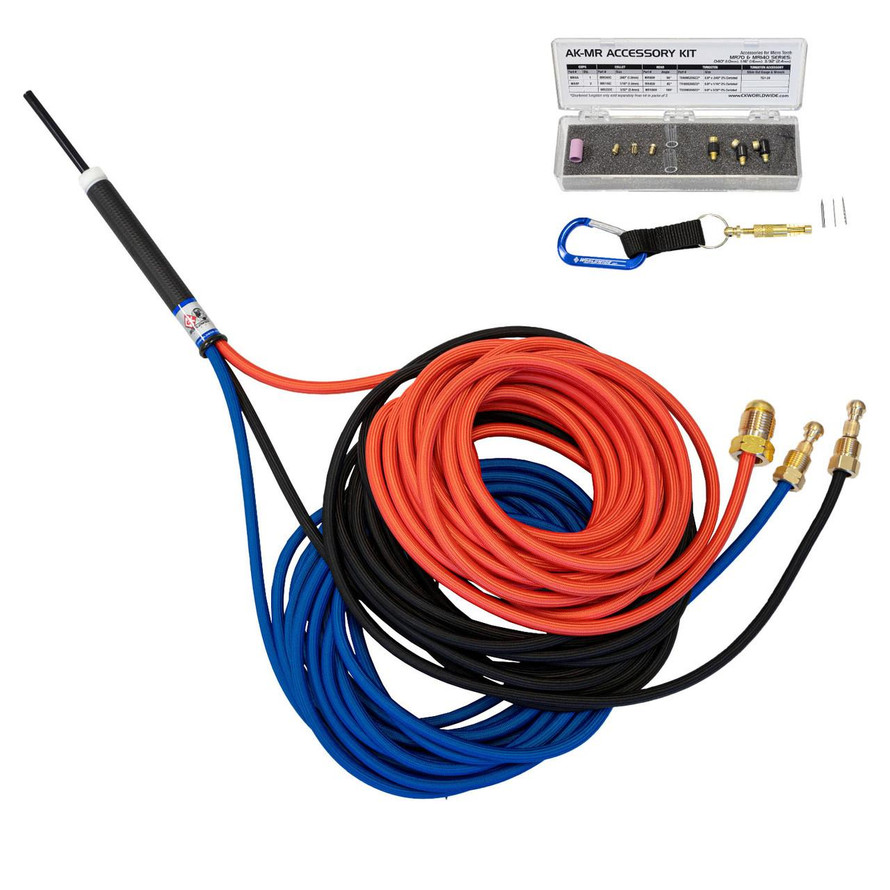

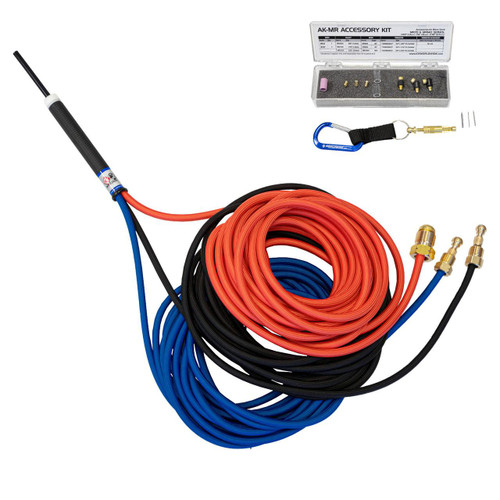

Micro TIG Torch Package, Water-Cooled 140Amp

(1 review) Write a Review
UPC:
720340067838
MPN:
MR1412SF
Minimum Purchase:
1 unit
  • Micro TIG Torch Package, Water-Cooled 140Amp [image#1]
  • Micro TIG Torch Package, Water-Cooled 140Amp [image#2]
  • Micro TIG Torch Package, Water-Cooled 140Amp [image#3]
  • Micro TIG Torch Package, Water-Cooled 140Amp [image#4]
  • Micro TIG Torch Package, Water-Cooled 140Amp [image#5]
$422.00 - $471.00

Description

CK-MR140

Complete Micro TIG Torch Package.  Genuine CK Worldwide® 140 Amp Water-Cooled, with SuperFlex Power, Gas & Water Cables.

Ready-to Weld torch package, includes complete set of front end parts, pre-ground tungsten etc.

Torch Package Includes:

  • 1ea. 90°, 45° & 180° Torch Heads
  • 1ea. Collet Chucks .040" (1.0mm), 1/16" (1.6mm) & 3/32" (2.4mm)
  • 2ea. Pyrex Nozzles - Cup Diameter: 0.360" (9.1mm) x 0.600" (15.2mm) Long
  • 1ea. Alumina Nozzle - Cup Diameter: 0.360" (9.1mm) x 0.600" (15.2mm) Long
  • 1ea. Pre Ground Electrodes (2% Ceriated) .040" (1.0mm), 1/16" (1.6mm), 3/32" (2.4mm)
  • 1ea. Electrode Chuck Wrench/Electrode Set-Back Gauge
Specifications: CK-MR140
Amperage 140 ACHF or DCSP @ 100% Duty Cycle.
Water-Cooled body 90°, 45°, & 180° heads
Electrode capacity .040" (1mm) -- 3/32" (2.4mm)
Head size Dia. 0.312" (7.9mm) x 3.1" (78.7mm) Long
Torch body weight 2.4 oz. (68.0g)
Torch length 9" (229mm)
Handle diameter 3/4" (19.1mm)
Power Connection 7/8"-14LH Female
Gas Connection 5/8"-18RH Female
Water Connection 5/8"-18LH Female
Part # CK-MR140 CK-MR140-HDL CK-MR1412SF CK-MR1425SF
Handle N/A CK-140H CK-140H CK-140H
Cable Material N/A N/A Super Flex Super Flex
Cable Length N/A N/A 12.5' (3.8m) 25' (7.6m)
View AllClose

Additional Information

TIG Torch Type:
Water Cooled
TIG Process:
Hand Held
Torch Model:
Specialty Torches
Amperage Rating:
100 - 130 Amp
View AllClose

1 Review

  • 5
    Works much better than the Weldcraft version. The…

    Posted by Lewis Driggers on Apr 17th 2015

    Works much better than the Weldcraft version. The end of the torch doesnt get as hot, and the pyrex gas cups dont break as easily. I have saved my company tens of thousands of dollars in rework by using this torch. I highly reccomend it.
