Description
CK-TL300V FX
350 Amp Water-Cooled TrimLine™ TIG Torch Body with Flexible 70o Head and Built-In Gas Valve. Complete torch packages include SuperFlex Power, Gas & Water Cables.
A full power 350A TIG torch with a smaller and lighter design than traditional 18-Series TIG torches.
Torch body uses 3-Series (17/18/26 Series) front end parts and has a proprietary female power connection that uses the CK-2312PCSF or CK-2325PCSF power cable and standard 2-series (20-series) water, & gas lines.
| Specifications: | CK-TL300V FX | |||
|---|---|---|---|---|
| Amperage | 350 Amp ACHF or DCSP @100% Duty Cycle. | |||
| Water-Cooled body | Flexible head | |||
| Electrode capacity | .020" (.5mm) -- 5/32" (4.0mm) | |||
| Head size | 3 Series | |||
| Torch body weight | 5oz. (141g) | |||
| Torch length | 8" (203mm) | |||
| Handle diameter | 1" (254mm) | |||

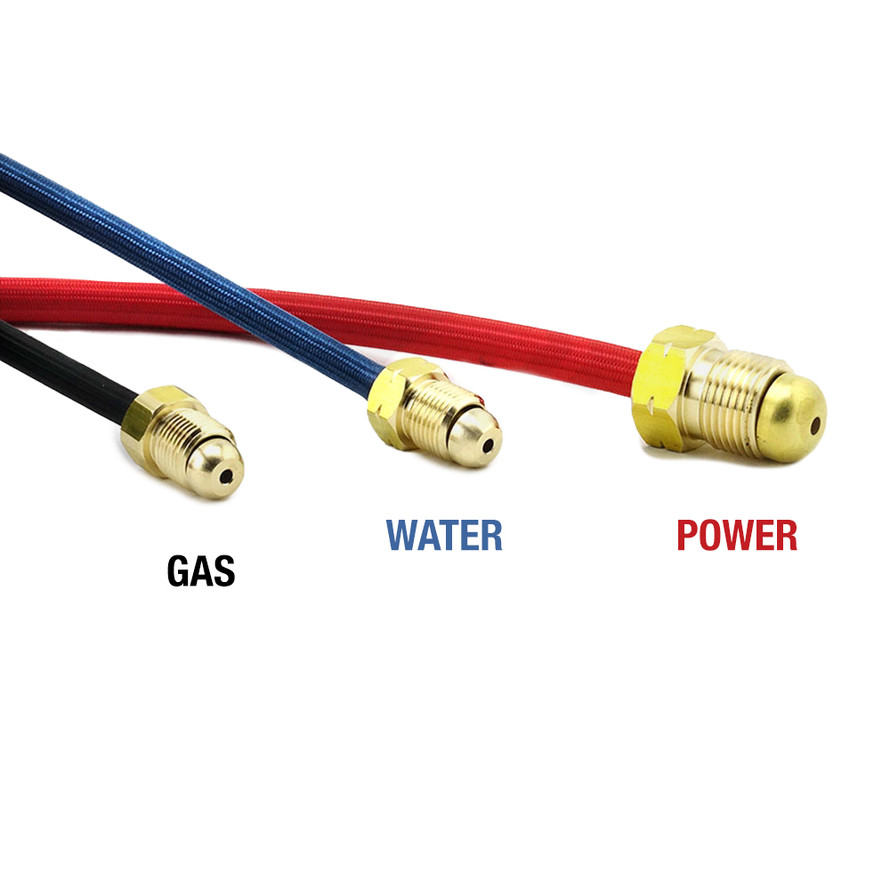

| Power Connection | 7/8"-14LH Male | |||
| Gas Connection | 5/8"-18RH Male | |||
| Water Connection | 5/8"-18LH Male | |||
| Part # | CK-TL300V FX | CK-TL300V FX-HDL | CK-TL312VSF FX | CK-TL325VSF FX |
| Handle | N/A | CK-210HTF | CK-210HTF | CK-210HTF |
| Cable Material | N/A | N/A | Super Flex | Super Flex |
| Cable Length | N/A | N/A | 12.5' (3.8m) | 25' (7.6m) |
Specifications
View AllCloseAdditional Information
|
TIG Torch Type:
|
Water Cooled
|
|
TIG Process:
|
Hand Held
|
|
Torch Model:
|
18 Style
|
|
Amperage Rating:
|
>350 Amp
|
