Description
CK-TL300V RG

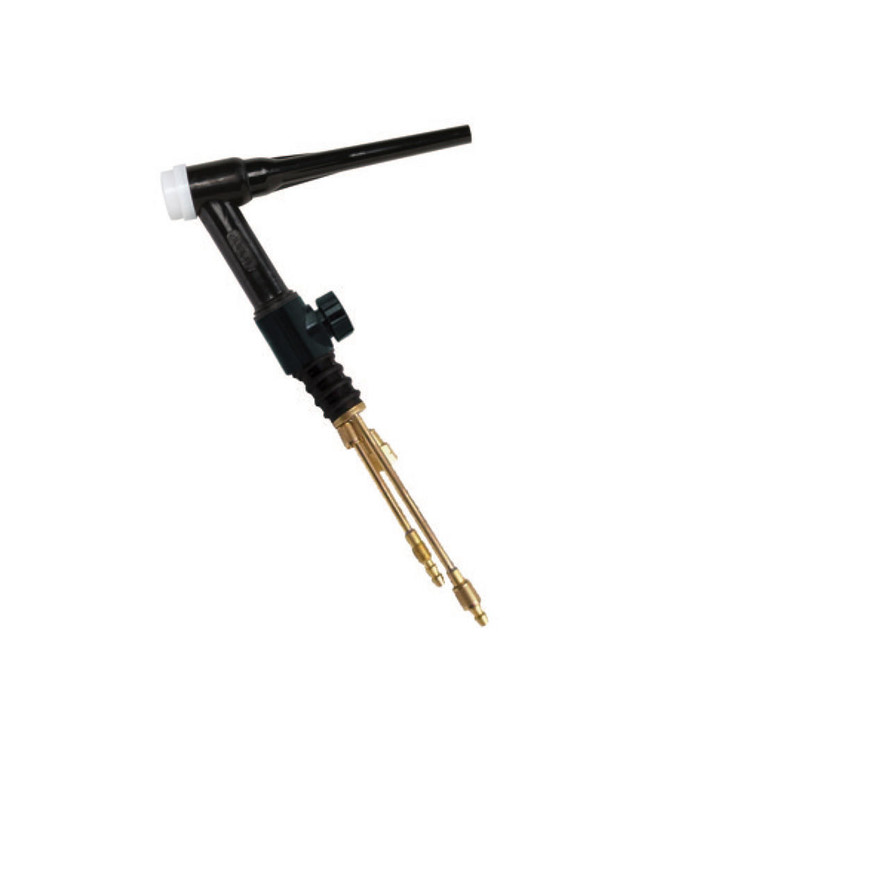

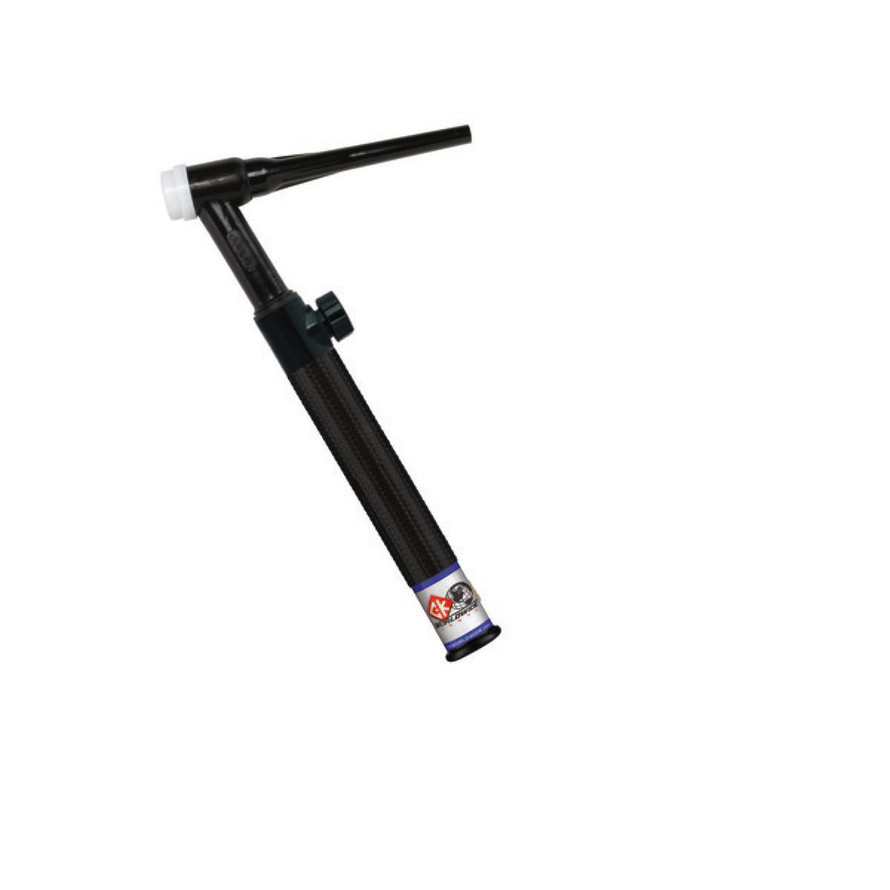

350 Amp Water-Cooled TrimLine™ TIG Torch Body with Rigid 70o Head with Built-In Gas Valve. Complete torch packages include SuperFlex Power, Gas & Water Cables.
A full power 350A TIG torch with a smaller and lighter design than traditional 18-Series TIG torches.
Torch body uses 3-Series (17/18/26 Series) front end parts and has a proprietary female power connection that uses the CK-2312PCSF or CK-2325PCSF power cable and standard 2-series (20-series) water, & gas lines.
Specifications: | CK-TL300V RG | |
---|---|---|
Amperage | 350 Amp ACHF or DCSP @100% Duty Cycle. | |
Water-Cooled body | 70o head | |
Electrode capacity | .020" (.5mm) -- 5/32" (4.0mm) | |
Head size | 3 Series | |
Torch body weight | 5oz. (141g) | |
Torch length | 8" (203mm) | |
Handle diameter | 1" (254mm) | |
Power Connection | 7/8"-14LH Male | |
Gas Connection | 5/8"-18RH Male | |
Water Connection | 5/8"-18LH Male | |
Part # | CK-TL312VSF RG | CK-TL325VSF RG |
Handle | CK-210HTF | CK-210HTF |
Cable Material | Super Flex | Super Flex |
Cable Length | 12.5' (3.8m) | 25' (7.6m) |
Additional Information
TIG Torch Type: |
Water Cooled |
TIG Process: |
Hand Held |
Torch Model: |
18 Style |
Amperage Rating: |
>350 Amp |
