Description
W-225-25

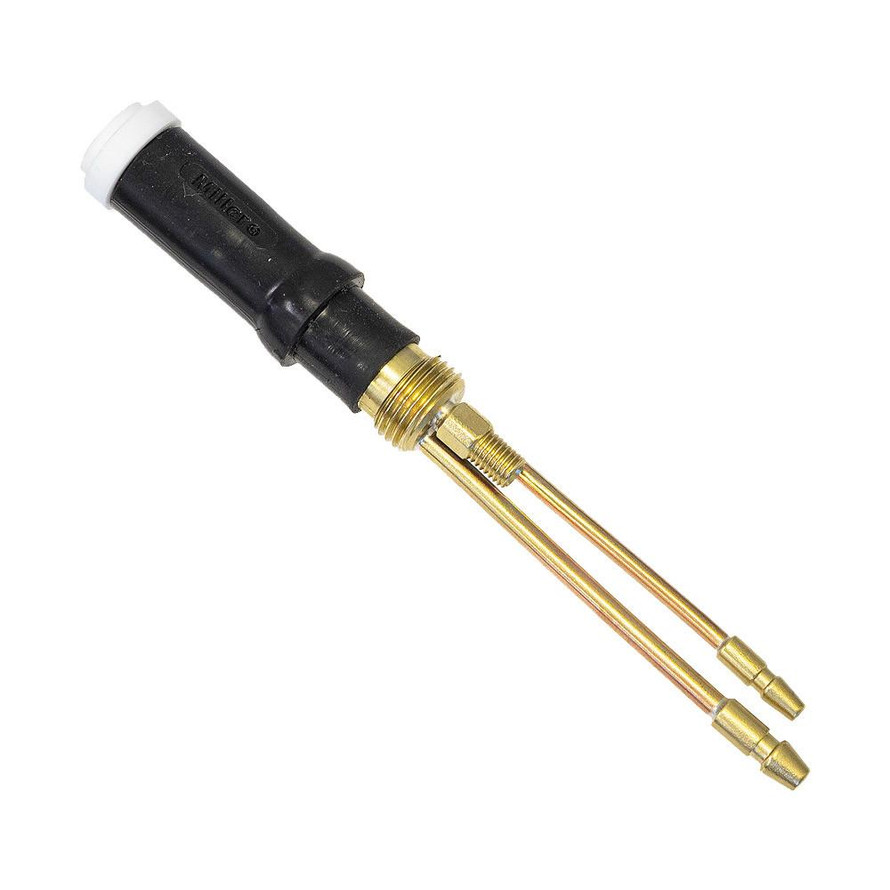

250Amp Water Cooled Pencil Torch Package with Vinyl/Plastic Power, Gas & Water Cables.
| Specifications: | W-225P (WP-20P) | ||
|---|---|---|---|
| Amperage | 225A DCSP or 160A ACHF @ 100% Duty Cycle. | ||
| Water-Cooled body | 180º Rigid Pencil Torch | ||
| Electrode capacity | .040" (1mm) -- 1/8" (3.2mm) | ||
| Head size | 2-Series | ||
| Torch body weight | 3 oz. (85g) | ||
| Torch Length w/ Handle | 6-1/2" (165mm) | ||
| Handle diameter | 3/4" (19.1mm) | ||
| Power Connection | 7/8"-14LH Male | ||
| Gas Connection | 5/8"-18RH Male | ||
| Water Connection | 5/8"-18LH Male | ||
| Part # | WP-20P | WP-20P-HDL | WP-20P-25 |
| Handle | N/A | 53N06 | 53N06 |
| Cable Material | N/A | N/A | Vinyl/Plastic |
| Cable Length | N/A | N/A | 25' (7.6m) |
Specifications
View AllCloseAdditional Information
|
TIG Torch Type:
|
Water Cooled
|
|
TIG Process:
|
Hand Held
|
|
TIG Process:
|
Machine Mounted
|
|
Torch Model:
|
20 Style
|
|
Amperage Rating:
|
200 - 310 Amp
|
|
Weld Type:
|
TIG
|
|
Gun Style:
|
W-225
|
|
AMP:
|
225
|
|
Product Type:
|
Torch
|
|
Cooling:
|
Water
|
