Description
W-400 (WP-18SC)

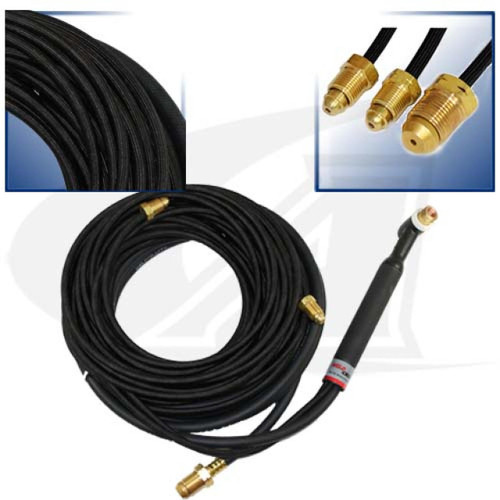

Weldcraft® by Miller® 18SC SuperCool™ is a premium 400 Amp, liquid-cooled TIG torch.
The torch body uses a "nose transfer block" instead of a collet body and is designed for high amperage TIG welding jobs. The 18SC series is a well-balanced, lightweight high-amperage torch that takes front end parts specifically designed for harsh conditions.
| Specifications: | W-400 (WP-18SC) | ||
|---|---|---|---|
| Amperage | 400A DCSP or 280A ACHF @ 100% Duty Cycle. | ||
| Water-Cooled body | 70º Rigid Torch | ||
| Electrode capacity | .020" (.5mm) -- 3/16" (4.8mm) | ||
| Head size | Unique front end parts that don't interchange with other TIG torches | ||
| Torch body weight | 9 oz. (255g) | ||
| Torch Length | 9 1/4" (235mm) | ||
| Handle diameter | 1 1/16" (27mm) | ||
| Power Connection | 7/8"-14LH Male | ||
| Gas Connection | 5/8"-18RH Male | ||
| Water Connection | 5/8"-18LH Male | ||
| Part # | WP-18SC | WP-18SC-HDL | WP-18SC-25-R |
| Handle | N/A | H-200 | H-200 |
| Cable Material | N/A | N/A | Super Flex |
| Cable Length | N/A | N/A | 25' (7.6m) |
Specifications
View AllCloseAdditional Information
|
TIG Torch Type:
|
Water Cooled
|
|
TIG Process:
|
Hand Held
|
|
Torch Model:
|
Specialty Torches
|
|
Amperage Rating:
|
>350 Amp
|
