Description
A-150 (WP-17)

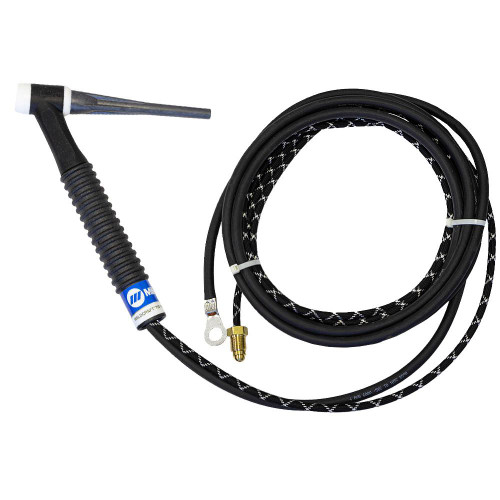

General purpose 150 Amp Air-Cooled TIG Torch Body With 70º Rigid Head. The WP-17 is a well-balanced, general use torch body and is the most common gas-cooled TIG torch in use across the world.
Torch package includes Two-Piece Cable with Copper Power Lug and a Super Flex Gas Hose.
| Specifications: | A-150 (WP-17) | |||
|---|---|---|---|---|
| Amperage | 150A DCSP, 115A ACHF @ 60% Duty Cycle | |||
| Air-Cooled body | 70º Rigid head | |||
| Electrode capacity | .020" (.5mm) -- 5/32" (4.0mm) | |||
| Head size | 3 Series | |||
| Torch body weight | 6 oz. (170g) | |||
| Torch length | 7-3/4" (196.8mm) | |||
| Handle diameter | 7/8" (22.2mm) | |||
| Power Connection | Torch: 3/8"-24RH Male | Machine: Gas: 5/8"-18RH Male Nut. Power: Copper Lug | ||
| Part # | WP-17 | WP-17-HDL | WP-17-12-2 | WP-17-25-2 |
| Handle | N/A | H-100R | H-100R | H-100R |
| Cable Type | N/A | N/A | Two-Piece | Two-Piece |
| Cable Length | N/A | N/A | 12.5' (3.8m) | 25' (7.6m) |
Specifications
View AllCloseAdditional Information
|
TIG Torch Type:
|
Gas / Air Cooled
|
|
TIG Process:
|
Hand Held
|
|
Torch Model:
|
17 Style
|
|
Amperage Rating:
|
150 - 200 Amp
|
