Description
A-150 Flex Valve (WP-17FV)
General purpose 150 Amp Air-Cooled TIG torch body with flexible head and built in gas valve for use with TIG machines that don't have a gas solenoid, or applications that require the torch to be connected directly to the flowmeter. The WP-17F is a well-balanced, general use torch body.

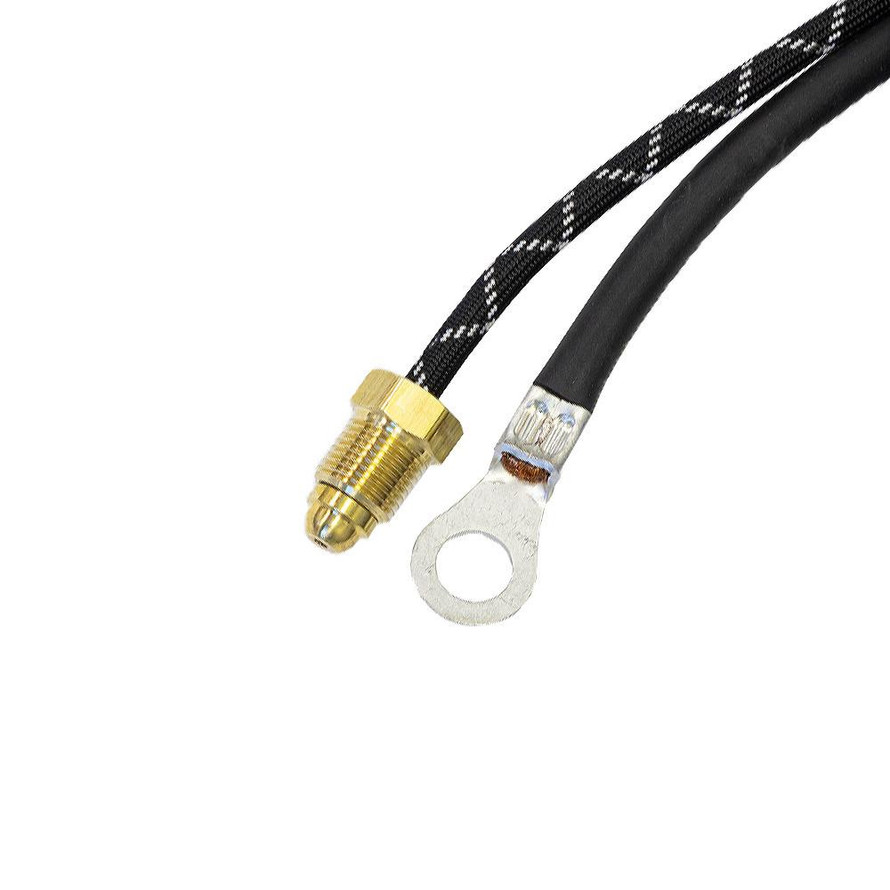

Torch package includes Two-Piece Cable with Copper Power Lug and a Super Flex Gas Hose.
| Specifications: | A-150 Flex Valve (WP-17FV) | ||
|---|---|---|---|
| Amperage | 150A DCSP, 115A ACHF @ 60% Duty Cycle | ||
| Air-Cooled body | Flexible head | ||
| Electrode capacity | .020" (.5mm) -- 5/32" (4.0mm) | ||
| Head size | 3 Series | ||
| Torch body weight | 6 oz. (170g) | ||
| Torch length | 7-3/4" (196.8mm) | ||
| Handle diameter | 7/8" (22.2mm) | ||
| Power Connection | Torch: 3/8"-24RH Male | Machine: Gas: 5/8"-18RH Male Nut. Power: Copper Lug | |
| Part # | WP-17FV | WP-17FV-HDL | WP-17FV-25-2 |
| Handle | N/A | 105Z55R | 105Z55R |
| Cable Type | N/A | N/A | Two-Piece |
| Cable Length | N/A | N/A | 25' (7.6m) |
Specifications
View AllCloseAdditional Information
|
TIG Torch Type:
|
Gas / Air Cooled
|
|
TIG Process:
|
Hand Held
|
|
Torch Model:
|
17 Style
|
|
Amperage Rating:
|
150 - 200 Amp
|
