Description
A-200 (WP-26)

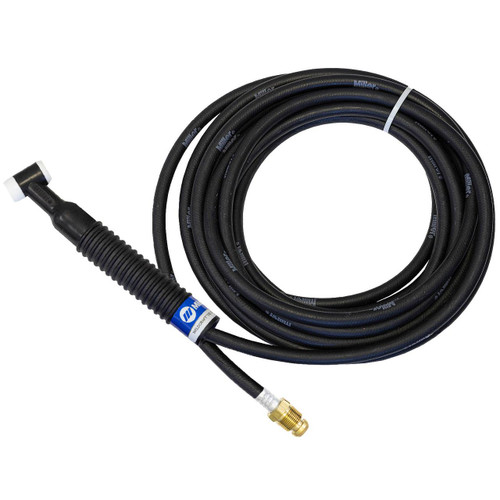

General purpose 200 Amp Air-Cooled TIG Torch Body With a Rigid 70º Head. The WP-26 is a well-balanced, general use torch body. Complete torch packages include one-piece, heavy duty rubber power cable.
| Specifications: | A-200 (WP-26) | |||
|---|---|---|---|---|
| Amperage | 200A DCSP, 150A ACHF @ 60% Duty Cycle | |||
| Air-Cooled body | 70º | |||
| Electrode capacity | .020" (.5mm) -- 5/32" (4.0mm) | |||
| Head size | 3 Series | |||
| Torch body weight | 10 oz. (283.4g) | |||
| Torch length | 8-1/2" (215.9mm) | |||
| Handle diameter | 1-1/4" (31.7mm) | |||
| Power Connection | Torch: 5/8"-18RH Male | Machine: 7/8"-14RH Male | ||
| Part # | WP-26 | WP-26-HDL | WP-26-12-R | WP-26-25-R |
| Handle | N/ | H-200R | H-200R | H-200R |
| Cable Type | N/A | N/A | One-Piece | One-Piece |
| Cable Length | N/A | N/A | 12.5' (3.8m) | 25' (7.6m) |
Specifications
View AllCloseAdditional Information
|
TIG Torch Type:
|
Gas / Air Cooled
|
|
TIG Process:
|
Hand Held
|
|
Torch Model:
|
26 Style
|
|
Amperage Rating:
|
150 - 200 Amp
|
