Trailer Hitch Vise – 2" Receiver, 7,700 lb. Clamping Force

Heavy-duty portable vise that turns a standard 2" trailer hitch receiver into a workholding station.
The Trailer Hitch Vise provides a convenient way to clamp, hold, and work on metal parts wherever a compatible 2" receiver is available. Designed for mobile welding, fabrication, repairs, and field maintenance, this vise mounts directly into a truck, trailer, tractor, or shop-mounted hitch receiver.

Built from 60,000 PSI ductile iron, the THV618 delivers up to 7,700 lbs. of clamping force with a maximum jaw opening of 5.7" (146mm). The vise features wide flat jaws, serrated pipe jaws, a built-in anvil, and removable locating pins for different workholding applications.

Its portable design provides a practical alternative to a permanently mounted bench vise. Simply slide the shank into a standard 2" (51mm) receiver and secure it using the included hitch pin and R-clip.

When you need a stationary workshop setup, the THV618 can also be mounted directly to compatible Strong Hand Tools BuildPro welding tables using the mounting holes in its base flange.

Key Features

• 7,700 lb. Clamping Force: Heavy-duty clamping capability for fabrication, maintenance, and repair applications.
• Standard 2" Hitch Receiver: Fits compatible 2" square hitch receivers on trucks, trailers, tractors, and shop-mounted receivers.
• Portable Workholding: Creates a convenient vise station without requiring a permanent workbench.
• 60,000 PSI Ductile Iron: Heavy-duty cast construction designed to withstand demanding shop and field applications.
• 5.7" Maximum Jaw Opening: Accommodates a variety of flat stock, tubing, and fabricated components.
• 5.9" Wide Jaws: Provides a broad gripping surface for securing workpieces.
• Integrated Serrated Pipe Jaws: V-groove jaws help hold pipe, tubing, and round stock securely.
• Built-In Anvil: Provides a 5.9" x 2.4" surface for suitable straightening, flattening, and light forming operations.
• Four Locating Pins: Includes 5/16" (8mm) pins for positioning workpieces and creating repeatable stops.
• Quick Installation & Removal: Mounts with the included 5/8" hitch pin and R-clip.
• BuildPro Table Compatibility: Base flange mounts to compatible 5/8" or 16mm modular welding table systems.
• Hammertone Silver Finish: Finished ductile iron construction for shop and field use.
• No Assembly Required: Ready to install in a compatible receiver.

Turn Your Trailer Hitch Into a Portable Workbench

A traditional bench vise is useful in the shop, but it is not always available where the work needs to be done.

The THV618 Trailer Hitch Vise provides a portable solution by mounting directly into a standard 2" square hitch receiver.

Once installed and secured with the included hitch pin, the vise extends outward from the receiver to provide access to the jaws and workpiece.

This setup is useful for field repairs, mobile fabrication, equipment maintenance, and other tasks where a stationary workbench may not be available.

When the job is finished, remove the R-clip and hitch pin, then slide the vise out of the receiver for storage.

Heavy-Duty 7,700 lb. Clamping Force

The THV618 is manufactured from 60,000 PSI ductile iron, providing a durable workholding body designed for demanding applications.

With up to 7,700 lbs. of clamping force, the vise helps secure workpieces during cutting, grinding, welding preparation, wrenching, and general repair operations.

Its ductile iron construction is designed to provide better resistance to shock and impact than conventional gray cast iron.

The THV618 is suitable for workholding applications where a secure grip and durable construction are important.

Wide Flat Jaws for Secure Workholding

The THV618 features 5.9" (150mm) wide jaws with a maximum opening of 5.7" (146mm).

The wide jaw faces provide a substantial gripping surface for holding flat stock, metal components, and fabricated workpieces.

This design makes the vise useful for many common metalworking tasks, including cutting, grinding, assembly, and maintenance.

Integrated Serrated Pipe Jaws

In addition to the standard flat jaws, the THV618 includes serrated V-groove pipe jaws positioned below the flat jaw faces.

These jaws are designed to grip round materials such as pipe, tubing, and round bar.

The serrated surfaces help reduce unwanted rotation of the workpiece while it is being held, making the vise useful for pipe-related fabrication and repair work.

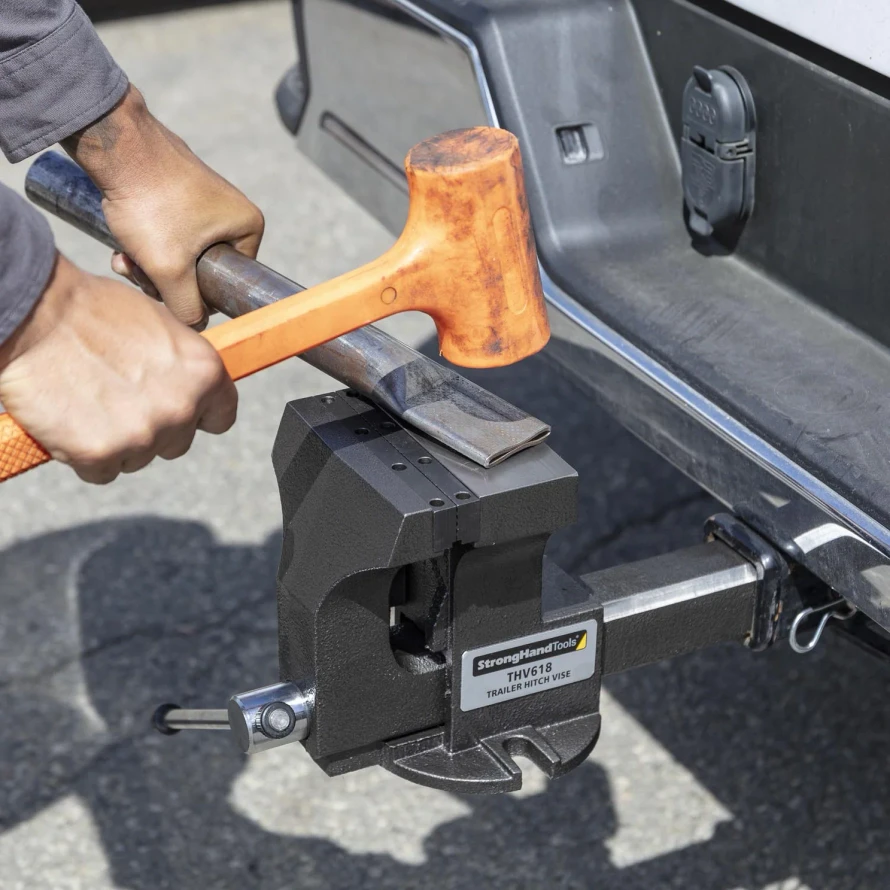

Built-In Anvil for Metalworking

The top of the fixed jaw incorporates a 5.9" x 2.4" (150 x 62mm) anvil surface.

This flat working area provides a convenient surface for suitable metalworking operations such as straightening, flattening, and peening.

Because the anvil is cast directly into the vise body, it provides a dedicated working surface without requiring a separate anvil.

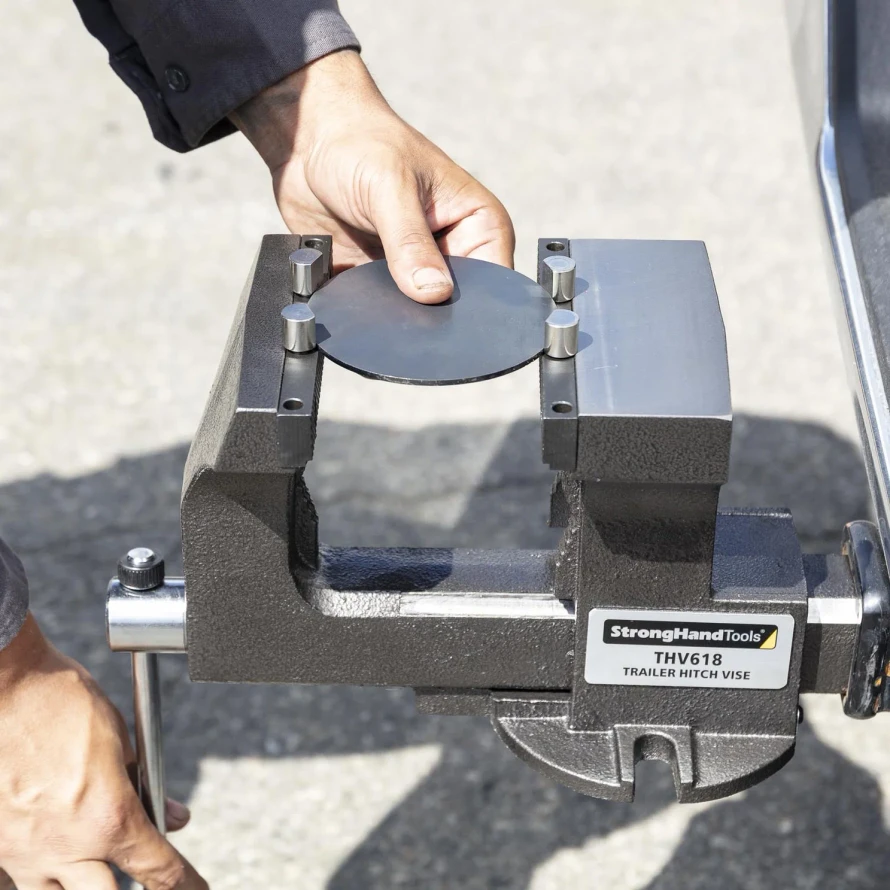

Four Locating Pins for Repeatable Positioning

The THV618 includes four removable 5/16" (8mm) locating pins that can be positioned in the holes on top of the jaws.

Each jaw features four locating holes, allowing the pins to be arranged as stops or fences for different workholding applications.

These pins are useful when positioning repeated workpieces or holding certain shapes that may be difficult to locate against the flat jaws alone.

They provide additional flexibility when using the vise for fabrication, assembly, and maintenance.

Dual Mounting Options – Hitch Receiver or Welding Table

The Strong Hand Tools THV618 provides two mounting options for different work environments.

Option 1: Standard 2" Hitch Receiver

Slide the vise into a compatible 2" receiver and secure it using the included 5/8" hitch pin and R-clip. This mounting method is useful for mobile workstations and field repairs.

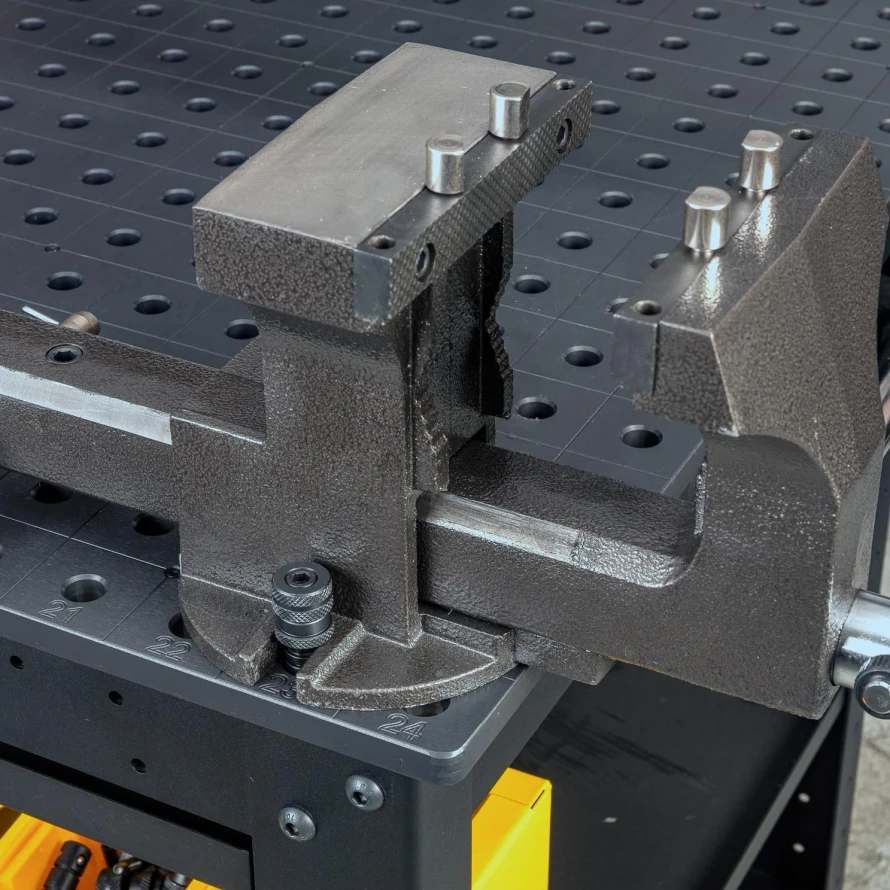

Option 2: BuildPro or Compatible Fixturing Table

The base flange allows the vise to be bolted directly to compatible modular welding tables with:

• 5/8" holes on 2" centers
• 16mm holes on 50mm centers

This allows the THV618 to serve as a stationary vise on a compatible fabrication table.

Mounting Note: The hitch pin and R-clip are included. Table-mounting hardware is not specified as included and should be selected separately for the work surface.

Quick Installation and Removal

The THV618 is designed for fast installation without permanent modifications to a compatible receiver.

1. Prepare the Receiver: Ensure the receiver is properly installed, secure, and suitable for supporting the vise.
2. Insert the Vise: Slide the vise shank into the standard 2" square receiver.
3. Align the Mounting Holes: Position the vise so the hitch pin can pass through the receiver and shank.
4. Install the Pin: Insert the included 5/8" hitch pin and secure it with the R-clip.
5. Secure the Workpiece: Position the material between the appropriate jaws and tighten the vise.

When finished, release the workpiece, remove the R-clip and hitch pin, and slide the vise out of the receiver.

What's Included?

• 1 THV618 Trailer Hitch Vise: Heavy-duty ductile iron vise with 2" receiver shank and hammertone silver finish.
• 4 Locating Pins: 5/16" (8mm) pins for positioning workpieces.
• 1 Hitch Pin: 5/8" pin for mounting the vise in a compatible receiver.
• 1 R-Clip: Retaining clip for securing the hitch pin.

Not Included: Trailer hitch receiver, welding table, table mounting bolts, clamps, and workpieces.

Common Applications

• Mobile welding and fabrication
• Field equipment repairs
• Truck and trailer maintenance
• Farm and agricultural equipment repair
• Metal cutting and grinding preparation
• Pipe and tubing workholding
• Round stock positioning
• General metalworking and assembly
• Industrial maintenance
• Outdoor jobsite repairs
• BuildPro welding table applications
• Portable workholding stations

Frequently Asked Questions

What is the Strong Hand Tools THV618?
The THV618 is a heavy-duty trailer hitch vise that mounts into a compatible 2" square hitch receiver or directly onto a compatible BuildPro welding table.

What size hitch receiver does it fit?
The THV618 is designed for a standard 2" (51mm) square hitch receiver.

Will it fit a 1-1/4" receiver?
No. The THV618 is designed for standard 2" receivers only.

How much clamping force does it provide?
The THV618 provides up to 7,700 lbs. of clamping force.

How wide do the vise jaws open?
The maximum jaw opening is 5.7" (146mm).

How wide are the jaws?
The flat jaws measure 5.9" (150mm) wide.

Can this vise hold pipe and round stock?
Yes. The vise includes serrated V-groove jaws below the flat jaws for holding pipe, tubing, and round bar.

Does it include an anvil?
Yes. A 5.9" x 2.4" anvil surface is integrated into the top of the fixed jaw.

What are the locating pins used for?
The four included 5/16" locating pins can be inserted into the jaw holes to create stops, fences, and repeatable workpiece positioning arrangements.

Can I mount this vise to a welding table?
Yes. The THV618 can mount to compatible BuildPro and modular welding tables with 5/8" holes on 2" centers or 16mm holes on 50mm centers.

Does the vise include the hitch pin?
Yes. A 5/8" hitch pin and R-clip are included for receiver mounting.

What is the vise made from?
The THV618 is constructed from 60,000 PSI ductile iron with a hammertone silver finish.

Does the vise require assembly?
No. The vise is ready to mount in a compatible receiver using the included hitch pin and retaining clip.

Can I use this vise without a truck?
Yes. It can be mounted to compatible welding tables or used with an appropriately installed stationary 2" hitch receiver.

Is this vise permanently installed?
No. When mounted in a hitch receiver, the vise can be removed by taking out the R-clip and hitch pin.

What is the Arc-Zone SKU?
The Arc-Zone part number is SHT-THV618.

Important Safety Information: Secure the vise to a properly supported receiver or suitable welding table before use. Do not use the vise for towing or lifting. Follow the manufacturer's instructions and applicable workshop safety procedures.
