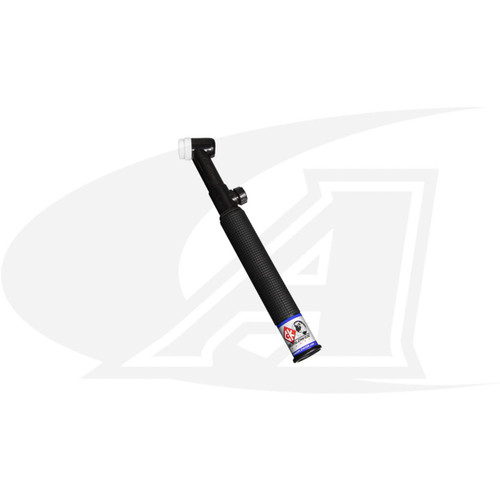

TrimLine™ Flex Head Air-Cooled 200Amp TIG Torch Head with Valve, Handle

(No reviews yet) Write a Review
Minimum Purchase:
1 unit
$120.00 - $131.00

Description

CK-TL210V FX

200 Amp Air-Cooled TIG Torch Body With 70o Flexible Head and Built-In Gas Valve.

Benefits include: Larger Cooling Passages in Head, Hardened Alloy Body and a Smaller, Compact Lightweight Design.

All the performance of traditional 26-Series TIG torches, but smaller and lighter!

Torch uses standard 3-Series (17/18/26 series) front end parts and has a 5/8"-18RH Female power connection.

Torch designed for use with CK Worldwide's specialized SuperFlex™ power cables: CK-412PCSF or CK-425PCSF; but this torch body will fit on standard 200A air-cooled power cables (46V28R, 46V30R).

Specifications: CK-TL210V FX
Amperage 200 amp ACHF or DCSP @ 100%
Air-Cooled body Flexible head
Electrode capacity .020" (.5mm) -- 5/32" (4.0mm)
Head size 3 Series
Torch body weight 5oz. (141g)
Torch length 8.125" (206mm)
Handle diameter 1" (254mm)
Power Connection Torch: 5/8"-18RH Female Machine: 5/8"-18RH Female
View AllClose

Specifications

View AllClose

Additional Information

TIG Torch Type:
Gas / Air Cooled
TIG Process:
Hand Held
Torch Model:
26 Style
Amperage Rating:
150 - 200 Amp
