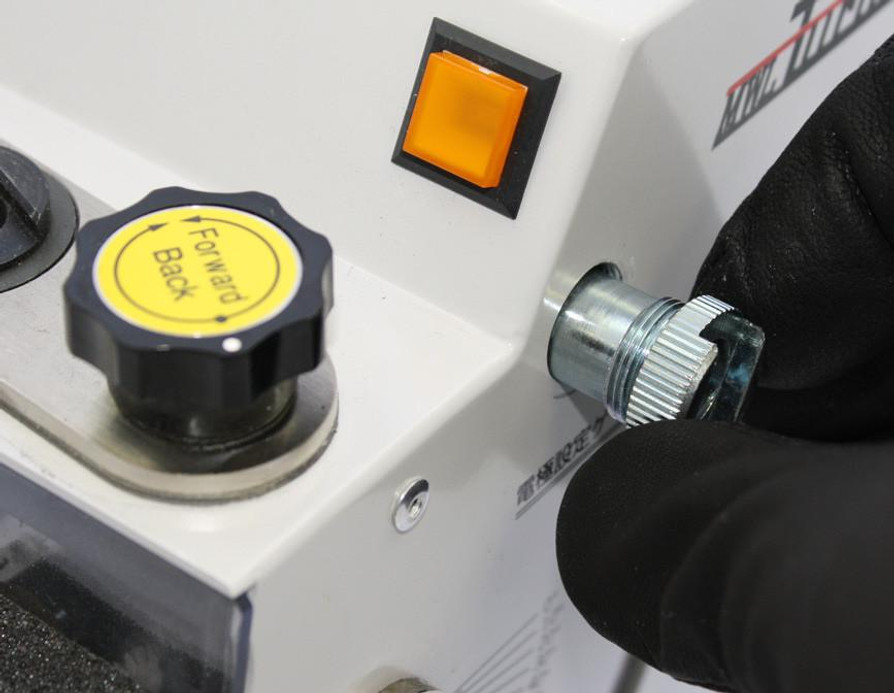

Turbo Ace Semi-Automatic Tungsten Electrode Grinder

(No reviews yet) Write a Review
SKU:
MWL-MT-10DX
MPN:
MT-10DX
Minimum Purchase:
1 unit
$3,400.00

Description

MWL-MT-10DX™

Light-Duty precision tungsten grinder equipped with Automatic Grinding capabilities and built-in shut down timer.

Simply insert the electrode to be ground, turn the machine on and it grinds the electrode to a perfect, consistent taper, and shuts of automatically!

The Turbo Ace is highly engineered compact, bench-top design with a Small Foot Print.

Machine Includes:

  • 1ea. Collet chuck
  • 1ea. 1/16" (1.6m) Collet (other sizes available, specify when ordering)

The Turbo Ace Grinder Features:

  • Timed Automatic Rotation Of The Tungsten Electrode Being Ground
  • Precision Grind Angle Adjustment From 15º To 60º
  • Consistent, Precise, Repeatable Ground Tip Flat Capability
  • Enclosed Grinding Chamber With Dust Collection Drawer
  • Grinds Tungsten Diameters From .040" (1.0mm) To 1/8" (3.2mm)
  • Grinds Tungsten As Short As .4" (10mm)
  • Compact Unit Weighs Only 9lbs (4.1kg) and Measures 9” (228mm) x 4" (101) x 8" (203mm)
  • Made in Japan to exacting standards and engineered for performance
  • 110V Motor Standard, Available With 220V EU Style Motor Upon Request.

More Information:

  • Turbo Ace Tungsten Grinder Operations Manual: PDF
  • Grinding Tungsten: PDF
View AllClose

Specifications

View AllClose

Additional Information

Grinder Style:
Benchtop
Electrode Diameters:
.040" (1.0mm)
Electrode Diameters:
1/16"(1.6mm)
Electrode Diameters:
3/32"(2.4mm)
Electrode Diameters:
1/8" (3.2mm)
Cut-Off Option:
Notched Cut-Off
Special Features:
Dust Collection
Special Features:
Enclosed Grinding Wheel
Special Features:
Semi-Automated
Weld Type:
Plasma
Weld Type:
TIG
Product Type:
Tungsten Grinder
Job Type:
Welding
