Description

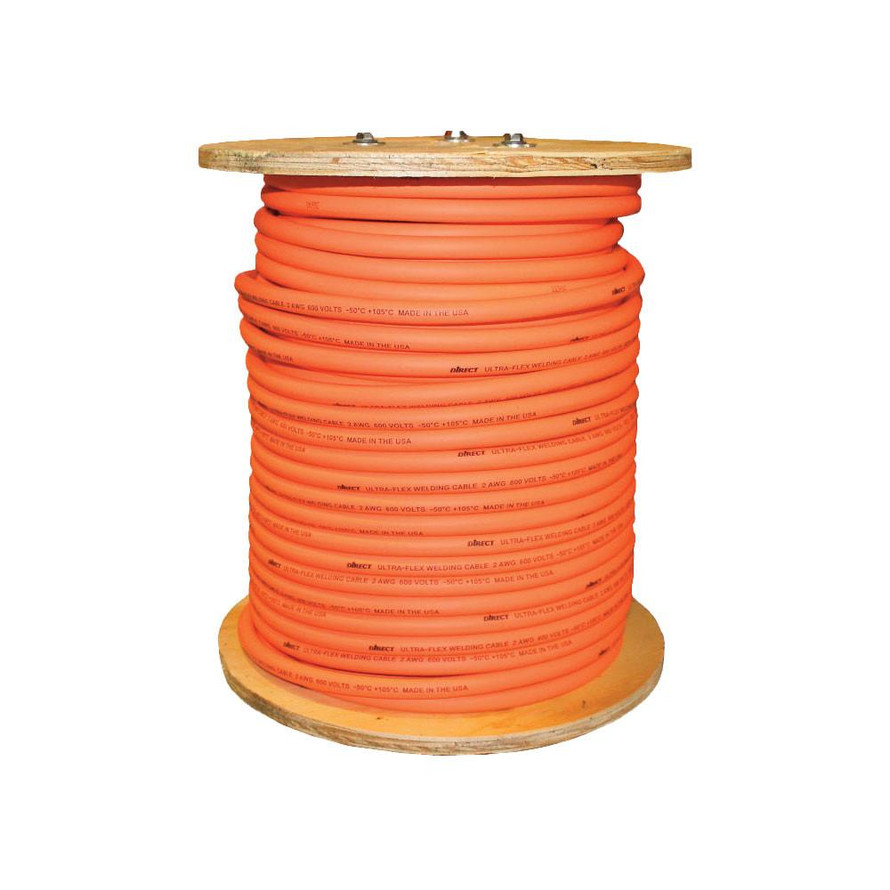

Ultra-Flex High Performance Welding Cable in Sizes #2, #1, 1/0 & 2/0 (Priced Per Foot)
(Select Size & Length From Drop Down Menu Above)
Ultra-Flex® Welding Cable is designed to provide extra flexibility for stingers, whips, leads, and grounds. Highly flexible with more strands than standard welding cable. Insulated with an orange, high quality proprietary EPDM jacket and
paper separator. Operating temperatures range from -50°C to 105°C (-58°F to +221°F).
- Highly flexible 36 gauge copper
- Rugged proprietary EPDM jacket with black stripe and paper separator
- Meets UL Class M
- Sequentially marked
- Resists abrasion, cut, tear, flame, grease, oil and water
- Halogen free and ozone resistant
- Copper meets SAE J1127
- National Electrical Code article 630 electrical welders
- Made in the USA
| Part Number | Size | Stranding | O.D. | Avg. Wall | Weight/1,000 ft. |
|---|---|---|---|---|---|
| DWC-UF-2-BULK | #2 | 1666/34 | 0.447" (11.4mm) | .060" (1.5mm) | 242 lbs. (110kg) |
| DWC-UF-1-BULK | #1 | 2107/34 | 0.529" (13.4mm) | .080" (2.0mm) | 317 lbs. (144kg) |
| DWC-UF-10-BULK | #1/0 | 2646/34 | 0.568" (14.4mm) | .080" (2.0mm) | 378 lbs. (172kg) |
| DWC-UF-20-BULK | #2/0 | 3325/34 | 0.612" (15.5mm) | .080" (2.0mm) | 467 lbs. (212kg) |
