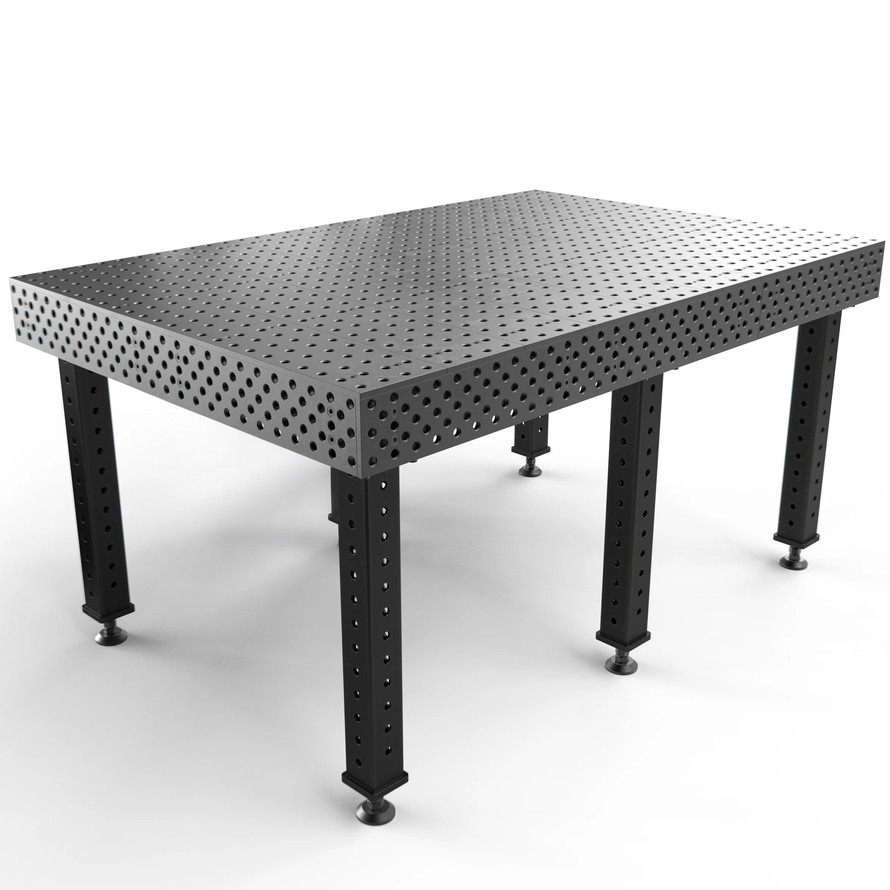

SHT-TA5-7248Q Precision 5-Face Welding & Fixturing Tables
*Contact Customer Service For Custom Shipping Quote On All Alpha 5/8 Welding and Fixturing Tables*
The new heavy-duty table line from BuildPro; it features 5 sides fitted with 5/8″ diameter boreholes for more versatility and expandability than before. Maintaining industry-leading requirements for flatness, squareness, and dimensional accuracy.
Features:
- Precision ground steel plates, with CNC machined ø5/8" holes in a 2" grid pattern for locating, positioning, and mounting BuildPro clamps and accessories
- Plates can be reconfigured to expand the width of the table for larger projects
- Heavy duty leveling feet ensure proper leveling of the table on uneven surfaces
- Reversible top plates enable each table plate to be removed and flipped 180 degrees to expose a new working surface if the top side has been damaged or worn
- Side plates have and extended 5 borehole pattern for added precision and adjustability
- Side plates also use a self-locating bushing system
- All top and side plates are constructed from heat-treated steel, hardeded to at least 550 Vickers, and finished with a nitride coating with a case depth of 0.0004 - 0.0008'
Specifications:
| Part # | SHT-TA5-7248Q- |
|---|---|
| Tabletop (Surface) Dimensions | 72" x 48" (1.83m x 1.22m) |
| Gross Weight (Depending on Leg Options) |
995 - 1,133 lbs (451 - 514kg) |
| Hole Diameter | 5/8" (15.9mm) |
| Hole Spacing | 2.000" (50.8mm) +/- 0.001" |
| Table Flatness | +/- 0.005" per 24" x 24" |
| Plate Thickness | 0.47" (11.9mm) +/- 0.004" |
| Tabletop Finish | Nitrided (Heat Treated) |
| Friction Coefficient | 0.37 |
| Top Plate Hardness | HV 750 |
| Top Plate Material | P20 |
| Side Plate Hardness | HV 550 |
| Side Plate Material | Q345B |
| Capacity (w/o Casters) | 1,500 lbs (680kg) per Leg |
| Capacity with Casters | 650 lbs (295kg) per Leg |
Leg Options:
| Leg Style | Heavy Duty (short) |
Heavy Duty (tall) |
Adjustable (1" Increments) | Adjustable with Casters |
|---|---|---|---|---|
| Table Surface Height | 30.3" (770mm) | 36.3" (922mm) | 28.3" - 38.3" (719 - 973mm) | 33" - 43" (838 - 1,092mm) |
| Leg Part # | SHT-TML2530 | SHT-TML3130 | SHT-TMLR30 | SHT-TMLC30 |
