Description

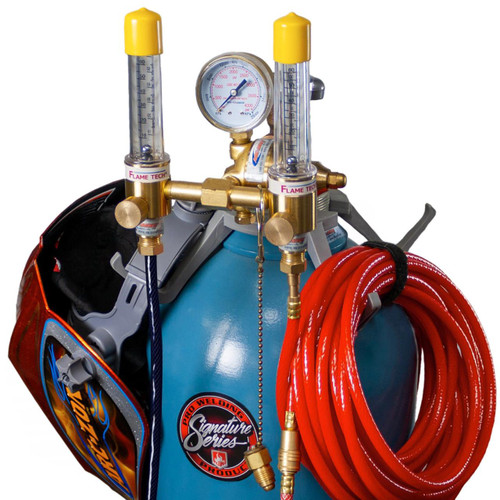

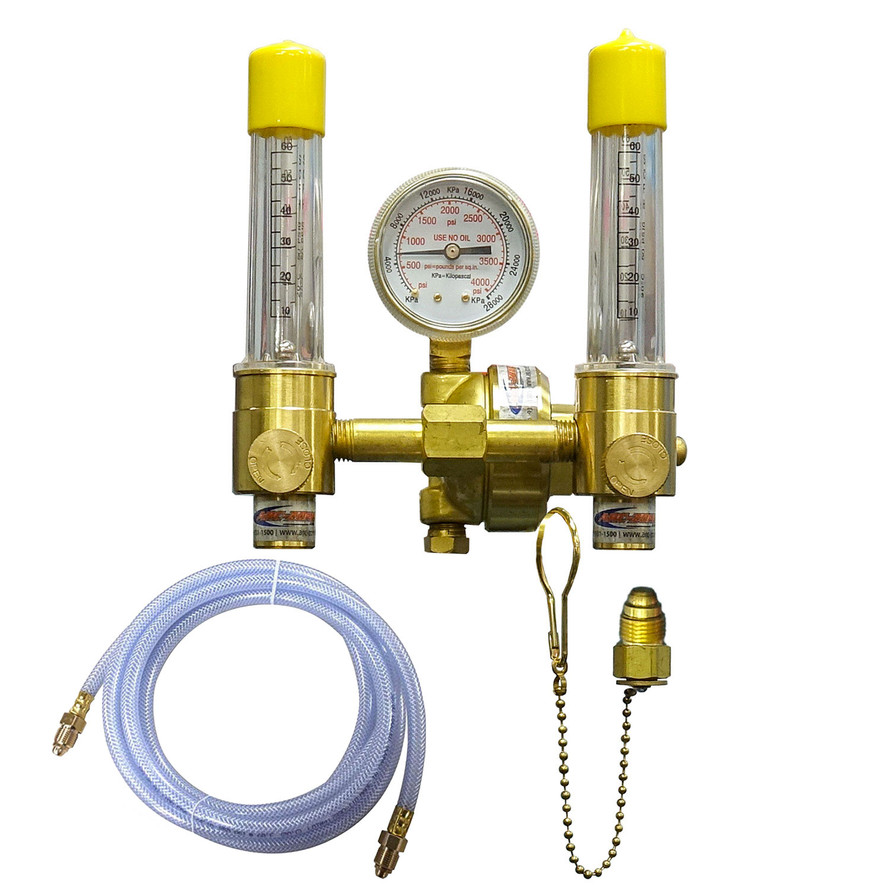

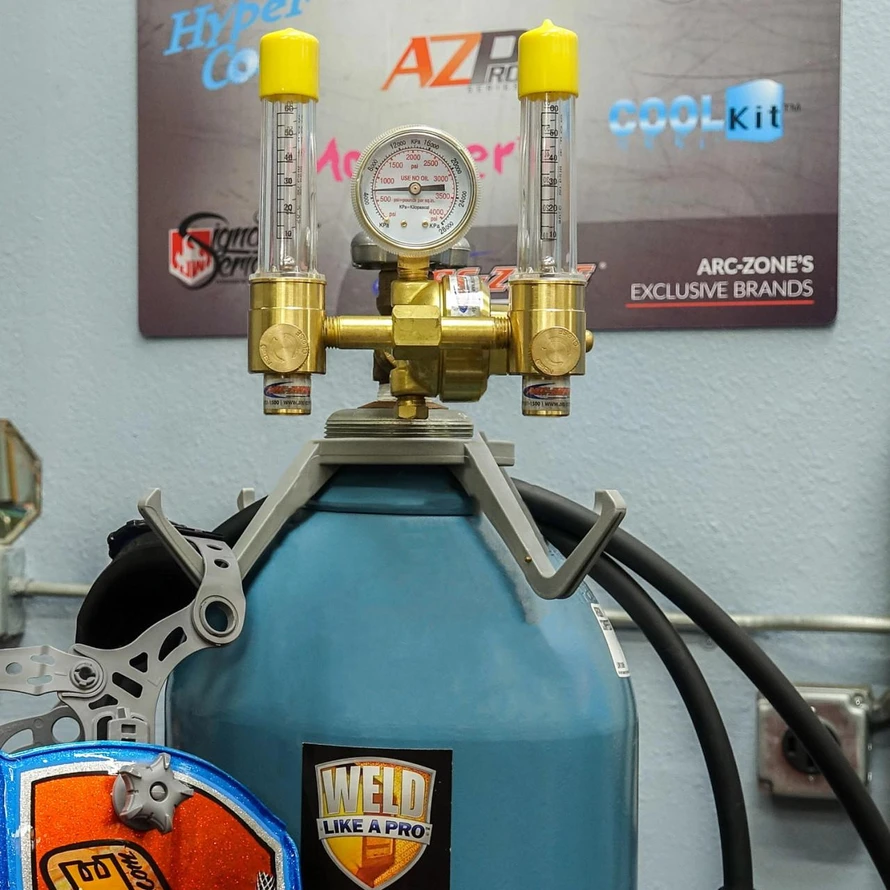

Flametech® Economy Series Dual Argon Flowmeter & Purge Hose Kits (select option from drop down menu)
Arc-Zone® Pro kits are built with the Flame Tech® economy series dual gas flow meter engineered to deliver precise control of primary (Torch) and secondary (Back Purge) shield gases. Additionaly you can set it up to accurately regulate the flow of welding gases to two separate welding processes from a single gas cylinder.
Example:
Supply a TIG torch and a backup purge bar, tube/pipe plug, secondary shield nozzle, trail shield or flooding cup. Use one side of the flow meter as an argon supply for your MIG machine when welding aluminum etc.
Three (3) Kits to Choose from:
1. Dual Gas Flow Meter
Flame Tech® Dual Gas Flow Meter only
2. Arc-Zone® Dual Gas Flow Meter Starter Kit: (Does not include secondary purge hose kit)
- Flame Tech® Dual Gas Flow Meter
- 6' (1.8m) Primary Gas Supply Hose from Cylinder to Welding Machine
- Gas Port Plug with leash chain allows you to cap off the second gas port when not purging, insuring no gas leaks.
3. Arc-Zone® Dual Gas Flow Meter Pro Kit:
- Flame Tech® Dual Gas Flow Meter
- 6' (1.8m) Primary Gas Supply Hose from Cylinder to Welding Machine
- 30' (9.1m) Long Secoundary Purge Gas Hose with Quick-Disconnect Fittings
- Gas Port Plug with leash chain allows you to cap off the unused gas port when not purging, insuring no gas leaks.
- Vacuum caps on flow tubes to eliminate gas leaks and atmosphere contamination
- 6" (0.15m) long whip hose with quick-disconnect
- Gas flow test gauge
- Spare fittings and hose adapters to thread into purge caps or plugs
- DIY gas fittings so you can custom tailor your purge hose for the job at hand!
Everything you need to Purge Like-a-Pro is in one kit!
Kit Options:
Part Number | FLT-200-FL-AR-60-580 | JWS-200-DFM | JWS-200-DFM-LQD |
---|---|---|---|
Gas Inlet from Tank | CGA-580 | ||
Gas Outlet | 5/8"18RH Female (2-Ports) | ||
Flow Range | 10-60 CFH (4.7-28.3 LPM) | ||
Fixed Output | 50 PSIG | ||
Secondary Port Plug | -- | Included | Included |
Gas Hose to Machine | -- | 6' (1.8m) Customizable Length |
6' (1.8m) Customizable Length |
Secondary Purge Gas Line | -- | -- |
30' (9.1m) Customizable Hose |
Quick Disconnect | -- | -- | High-Quality Gas QD |
Extra Purge End Fittings | -- | -- | 5/18" x 18 Gas Nipple & Nut 1/4" NPT Male / Hose Barb |
Gas Flow Test Gauge | -- | -- | Included |
