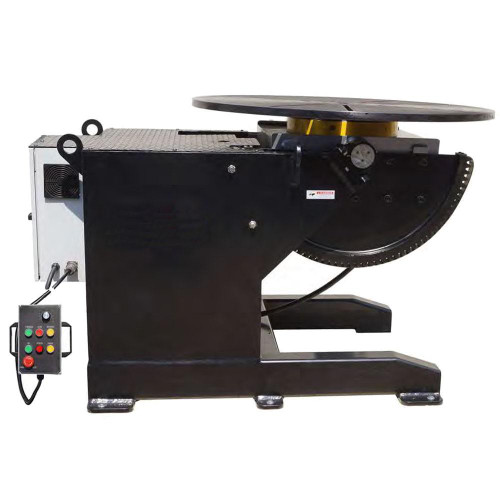

PROFAX® Heavy-Duty Welding Positioner
Designed for rotation of heavy weight work pieces.
The PROFAX® WP-6000 welding Positioner is a robust solution for consistent holding and rotating of parts in your welding workstation. The WP-6000 Positioner offers power tilt adjustment, high frequency protection, and heavy-duty hand controller (optional foot pedal available).
Chuck Specifications:
| Part # | PX-WPC-20 | PX-WPC-25 |
|---|---|---|
| I.D. Clamping | 5.875" - 19.625" | 6.625" - 24.75" |
| O.D. Clamping | 1" - 19.625" | 2" - 24.75" |
| O.D. of Chuck Body | 19.6" | 24.7" |
| Clamping Style | T-Handle (included) | T-Handle (included) |
| Weight | 258 lbs. | 460 lbs. |
This welding positioner ships on a standard size pallet by freight and is not available for shipping through UPS Ground or similar services.
They can be shipped collect with your own carrier, or an Arc-Zone Customer Care Representative will be happy to provide a shipping quote.
FREE SHIPPING WITHIN CONTINENTAL U.S.
-
Horizontal Capacity
9,500 lbs. (4,309kg) -
Vertical Capacity
6,000 lbs. (2,721kg) -
Rotation Speed
0.1 - 1.2 rpm -
Rated Eccentricity
12" (305mm) -
Power Input
440V (3 Phase) -
Table Diameter
47.25" (1200mm) -
Spindle Thru-Hole
N/A -
Table Slots
3 & 4 Slot Configuration -
Amperage Capacity
800A -
Tilt Range
0 - 135° -
Tilt Process
Powered -
Positioner Dimensions
72" (1.8m) x 47.3" (1.2m) x 43" (1.1m) -
Foot Pedal
Optional -
Weight
2,725 lbs. (1,236kg)
