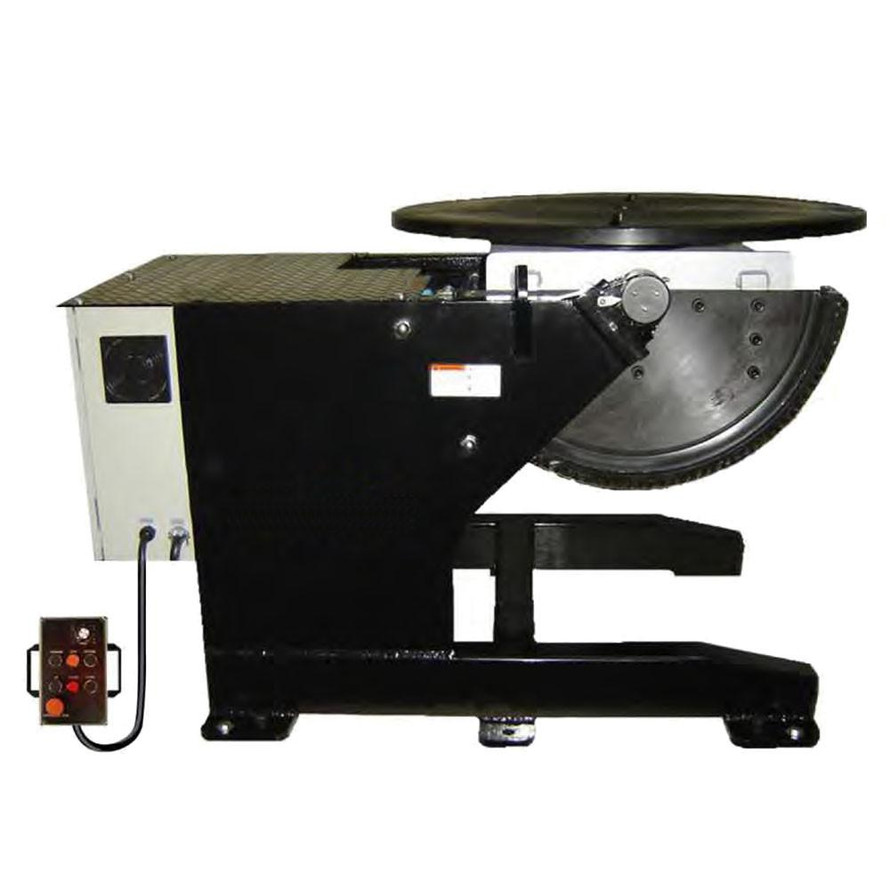

PROFAX® Heavy-Duty Welding Positioner
Designed for rotation of heavy weight work pieces.
The PROFAX® WP-2000 welding Positioner is a robust solution for consistent holding and rotating of parts in your welding workstation. The WP-2000 Positioner offers power tilt adjustment, high frequency protection, and heavy-duty hand controller (optional foot pedal available).
Chuck Specifications:
| Part # | PX-WPC-16 | PX-WPC-20 | PX-WPC-25 |
|---|---|---|---|
| I.D. Clamping | 4.75" - 15.75" | 5.875" - 19.625" | 6.625" - 24.75" |
| O.D. Clamping | 0.625" - 15.75" | 1" - 19.625" | 2" - 24.75" |
| O.D. of Chuck Body | 15.7" | 19.6" | 24.7" |
| Clamping Style | T-Handle (included) | T-Handle (included) | T-Handle (included) |
| Weight | 166 lbs. | 258 lbs. | 460 lbs. |
Will hold 2,000 lbs. in the vertical position and 3,500 lbs. in the horizontal position. Note: C/G of load not to be more than 12” from the center of the turntable and 12” from the face of the turntable.
This welding positioner ships on a standard size pallet by freight and is not available for shipping through UPS Ground or similar services.
They can be shipped collect with your own carrier, or an Arc-Zone Customer Care Representative will be happy to provide a shipping quote.
FREE SHIPPING WITHIN CONTINENTAL U.S.
-
Horizontal Capacity
3,500 Lbs. -
Vertical Capacity
2,000 lbs. (907kg) -
Rotation Speed
0.1 - 1.2 rpm -
Rated Eccentricity
12" (305mm) -
Power Input
220V or 440V (3 Phase) -
Table Diameter
35.5" (901mm) -
Spindle Thru-Hole
N/A -
Table Slots
3 & 4 Slot Configuration -
Amperage Capacity
800A -
Tilt Range
0 - 135° -
Tilt Process
Powered -
Positioner Dimensions
61.5" (1.6m) x 36" (914mm) x 35.9" (912mm) -
Foot Pedal
Optional -
Weight
1,640 lbs. (744kg)
