Description

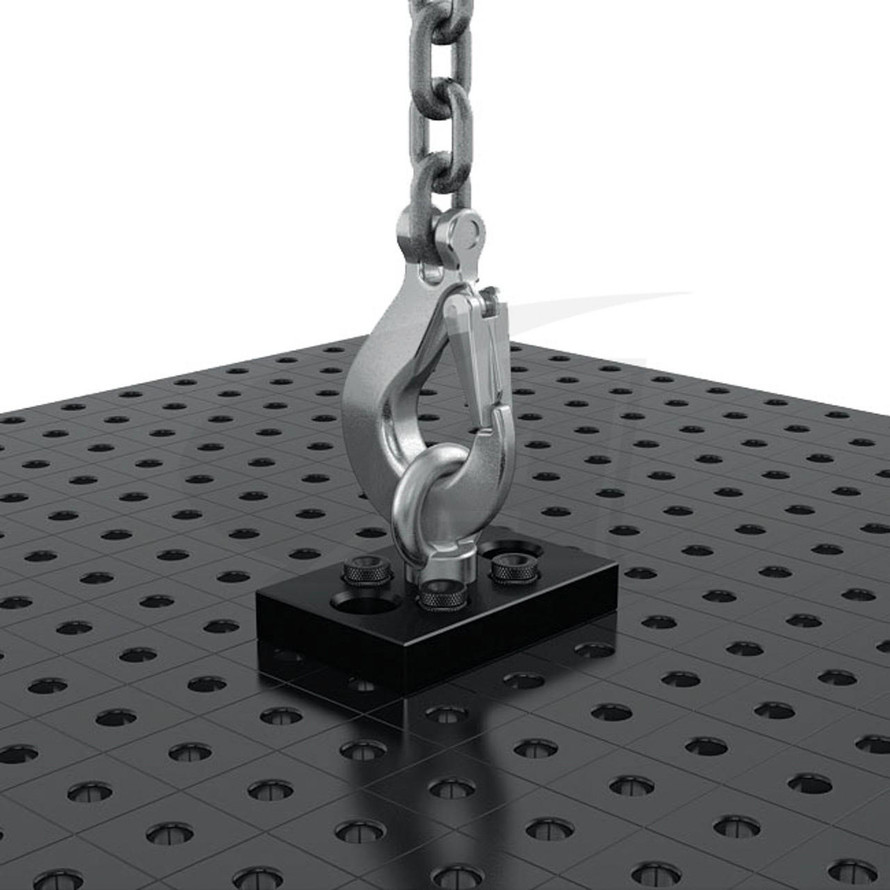

Lifting Bracket
The Shipping Bracket with fastening plate has a load capacity of 700 kg (1,540 lbs). It is used to move welding tables and other heavy Siegmund elements safely and easily. It is fastened quickly and simply with four clamping bolts.
The general regulations for the use of shipping brackets must be followed. The load capacity can be reduced substantially, depending on operating conditions. During transport, the table may not be raised more than 100 mm, and no one is permitted underneath the table.
In addition, the shipping brackets can be used as an easy fastener for lashing straps.
Please consider the following safety instructions: Ring nuts should be completely bolted. Ring nuts should bear flat and completely on support surface.
Length of mating thread has to be sufficient. Lateral pull should be avoided.
| Part Number | Name | Length | Width | Height | Weight |
|---|---|---|---|---|---|
| SHT-S2-160830 | Lifting Bracket w/ Eye Nut 700 kg load capacity (with 4x SHT-S2-160510) |
150mm (5.9") |
100mm (3.9") |
25mm (1.0") |
2.6kg (5.7lbs) |
Specifications
View AllCloseAdditional Information
|
Accessory Type:
|
Stops/Squares
|
|
Table Brand:
|
Siegmund
|
|
Table Hole Dia.:
|
16 mm
|
