Siegmund

Prism Extensions for Siegmund System 16 Tables

(No reviews yet) Write a Review
MPN:
S2-160649-1
Minimum Purchase:
1 unit
  • Siegmund Prism Extensions for Siegmund System 16 Tables
  • Siegmund Prism Extensions for Siegmund System 16 Tables
  • Siegmund Prism Extensions for Siegmund System 16 Tables
  • Siegmund Prism Extensions for Siegmund System 16 Tables
  • Siegmund Prism Extensions for Siegmund System 16 Tables
  • Siegmund Prism Extensions for Siegmund System 16 Tables
  • Siegmund Prism Extensions for Siegmund System 16 Tables
  • Siegmund Prism Extensions for Siegmund System 16 Tables
  • Siegmund Prism Extensions for Siegmund System 16 Tables
  • Siegmund Prism Extensions for Siegmund System 16 Tables
$10.00 - $58.00

Description

Prism Extensions (Select Style From Drop Down Menu Above)

The Prism extensions can be quickly and securely screwed into all prisms to enable positioning of the prism at different heights when used in combination with spacers (Item No. SHT-S2-280821).  When used with the screw support (Item No. SHT-S2-280822) infinitely variable positioning is possible.

SHT-S2-160649 is a collar which inserts into the system holes.  SHT-S2-160649-0 has a flush mount protrusion to securely mount into system holes.

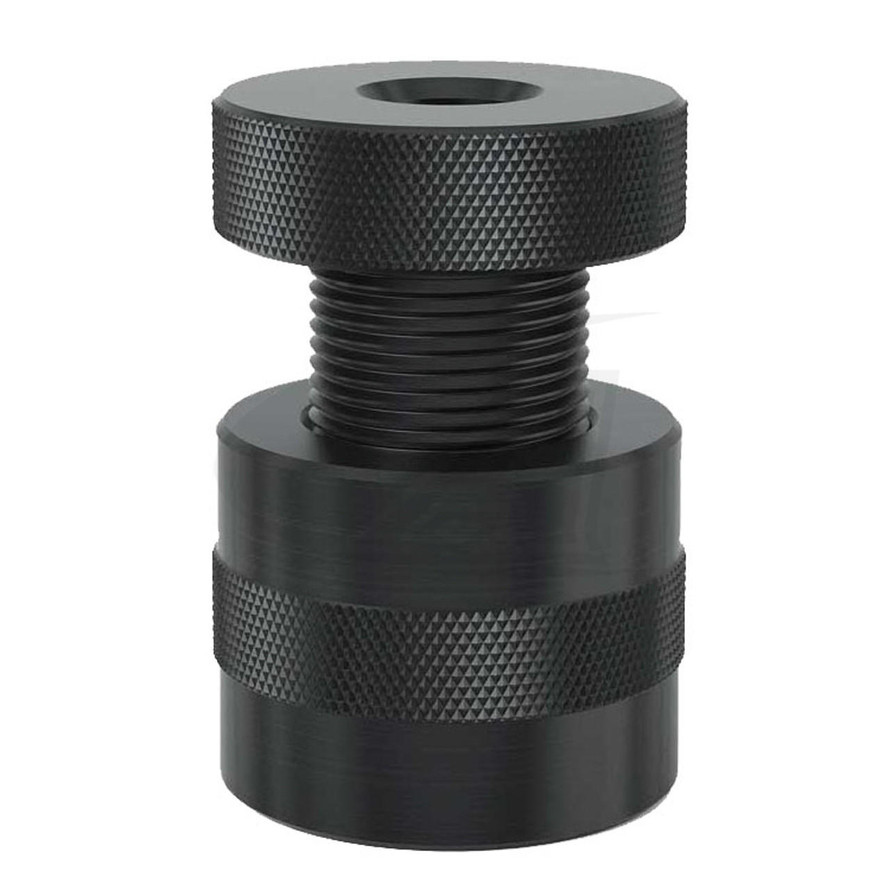

The Screw Support (SHT-S2-160822), is especially intended for vernier adjustments ranging from 50 - 70 mm.  Height compensation can be substantially increased by using prism extensions and the set of supports.

The 7-piece Set of Supports, offers the option to create height-adjustable work surfaces.  The individual supports can be utilized to compensate for height differences of 1 - 60 mm. In order to achieve the intended height precisely, the lowest grading of the Supports is 1 mm. The measurements are specified on the particular discs.

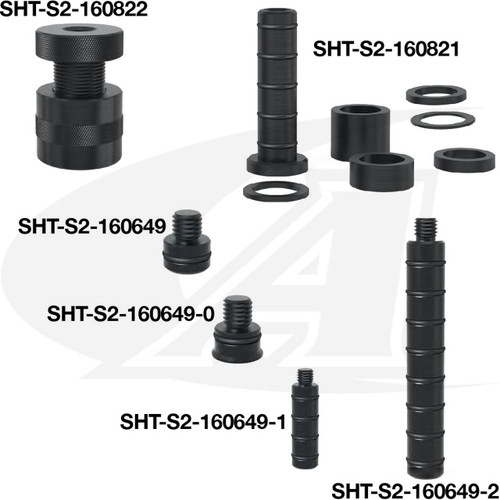

Part Number Name Height Diameter Weight
SHT-S2-160822 Screw Support 50-70mm
(2.0" - 2.7")
50mm
(2.0")
0.7kg
(1.5lbs)
SHT-S2-160821 7-Piece Support Set 65mm
(2.5")
25mm
(1.0")
0.2kg
(0.4lbs)
SHT-S2-160649 Thread-In Collar 19mm
(0.7")
16mm
(0.6")
0.02kg
(0.05lbs)
SHT-S2-160649-0 Special Screw 20mm
(7.9")
16mm
(0.6")
0.02kg
(0.05lbs)
SHT-S2-160649-1 Prism Extension 50 50mm
(2.0")
16mm
(0.6")
0.08kg
(0.2lbs)
SHT-S2-160649-2 Prism Extention 100 100mm
(3.9")
16mm
(0.6")
0.2kg
(0.4lbs)



View AllClose

Additional Information

Accessory Type:
V-Blocks
Table Brand:
Siegmund
Table Hole Dia.:
16 mm
