Siegmund

Prism Extensions for Siegmund System 28 Tables

(No reviews yet) Write a Review
MPN:
S2-280822
Minimum Purchase:
1 unit
  • Siegmund Prism Extensions for Siegmund System 28 Tables
  • Siegmund Prism Extensions for Siegmund System 28 Tables
  • Siegmund Prism Extensions for Siegmund System 28 Tables
  • Siegmund Prism Extensions for Siegmund System 28 Tables
  • Siegmund Prism Extensions for Siegmund System 28 Tables
  • Siegmund Prism Extensions for Siegmund System 28 Tables
  • Siegmund Prism Extensions for Siegmund System 28 Tables
  • Siegmund Prism Extensions for Siegmund System 28 Tables
  • Siegmund Prism Extensions for Siegmund System 28 Tables
  • Siegmund Prism Extensions for Siegmund System 28 Tables
$14.00 - $115.00

Description

V-Block Extensions (Select Style From Drop Down Menu Above)

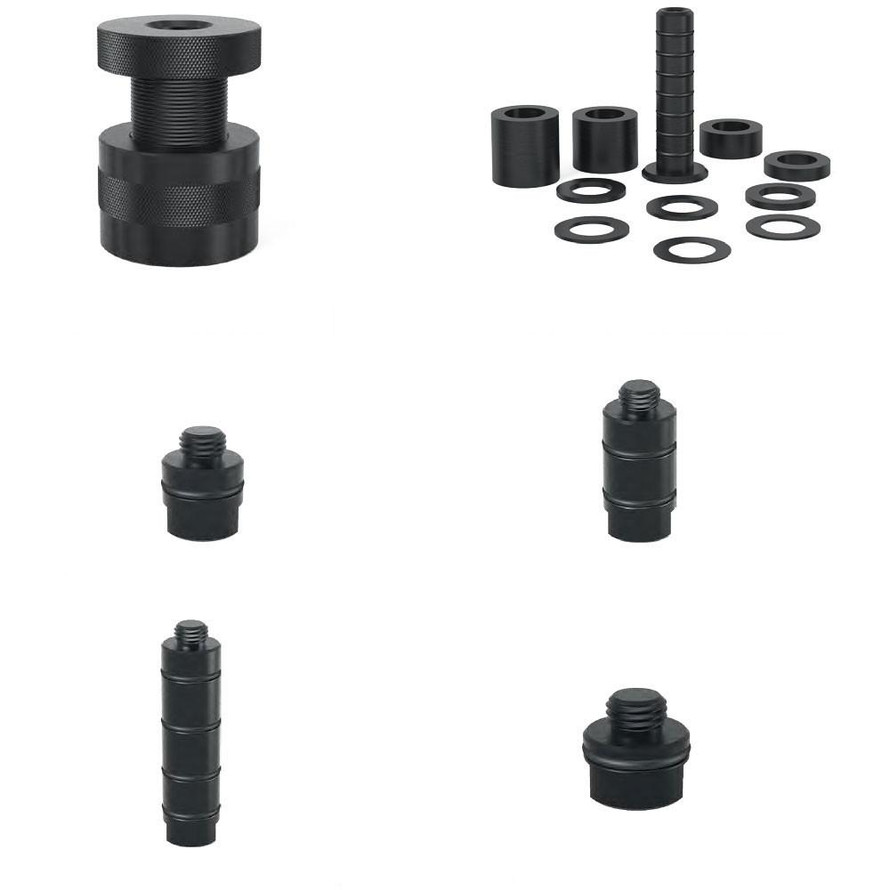

Combine the Screw Support with Shim Sets and Prism Extensions to achieve infinitely variable height adjustment.

The 11-pc Shim Set can be combined with prism extensions to create offsets in your fixtures. Note the shim set storage tube does not act as a prism extension.

Part Number Name Height Diameter Weight

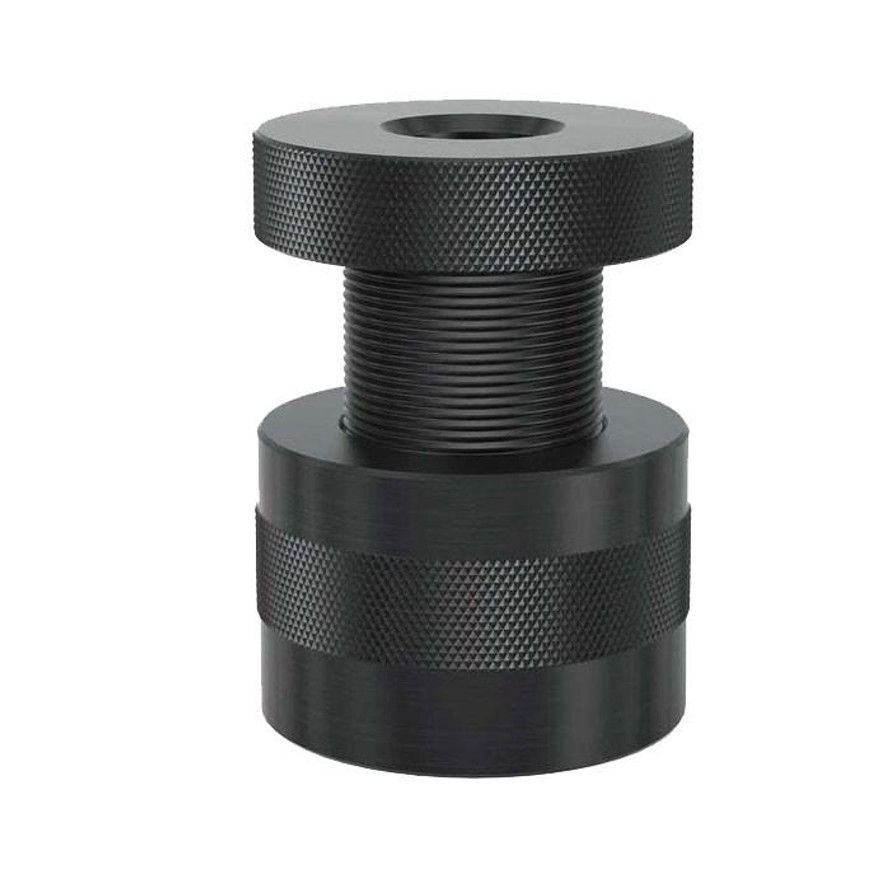

SHT-S2-280822 80mm Screw Support 75-110mm
(2.9"-4.3")
80mm
(3.1")
2.3kg
(5.0lbs)

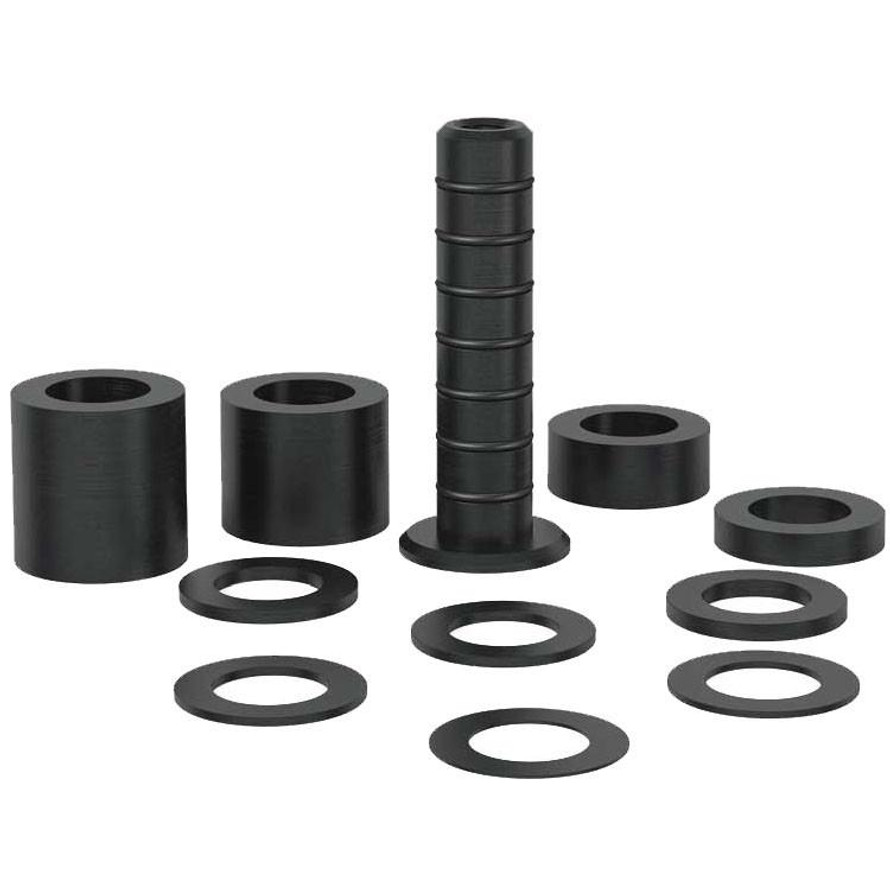

SHT-S2-280821 11-Pies Shim Set:
(Includes Disc Thicknesses: 1, 2, 2.5, 3, 4, 5, 10, 20, 40, & 50mm Plus Storage Holder
125mm
(4.9")
50mm
(2.0")
2.0kg
(4.4lbs)

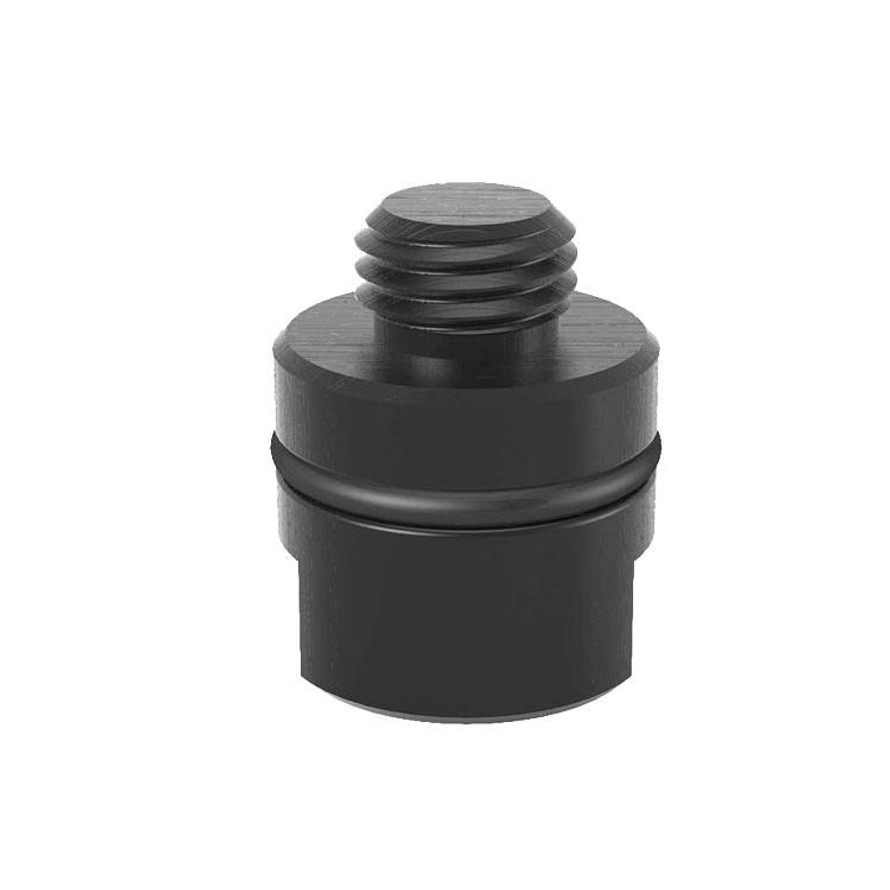

SHT-S2-280649 25mm Prism Extension 25mm
(1.0")
28mm
(1.1")
0.1kg
(0.3lbs)

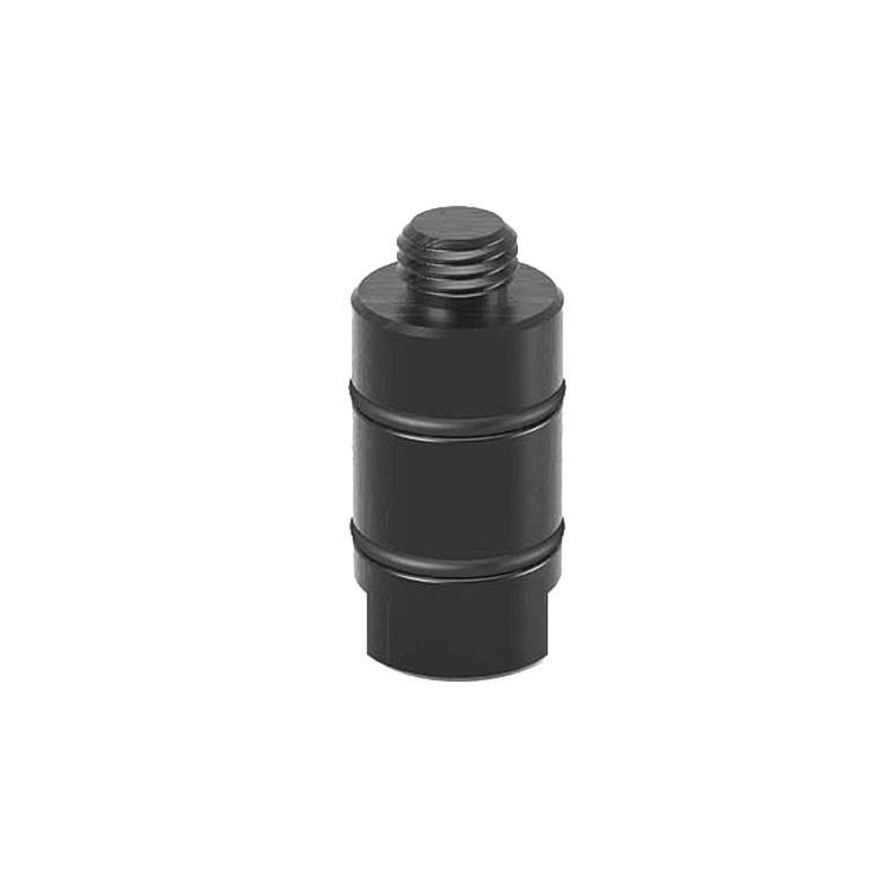

SHT-S2-280649-1 50mm Prism Extension 50mm
(2.0")
28mm
(1.1")
0.2kg
(0.6lbs)

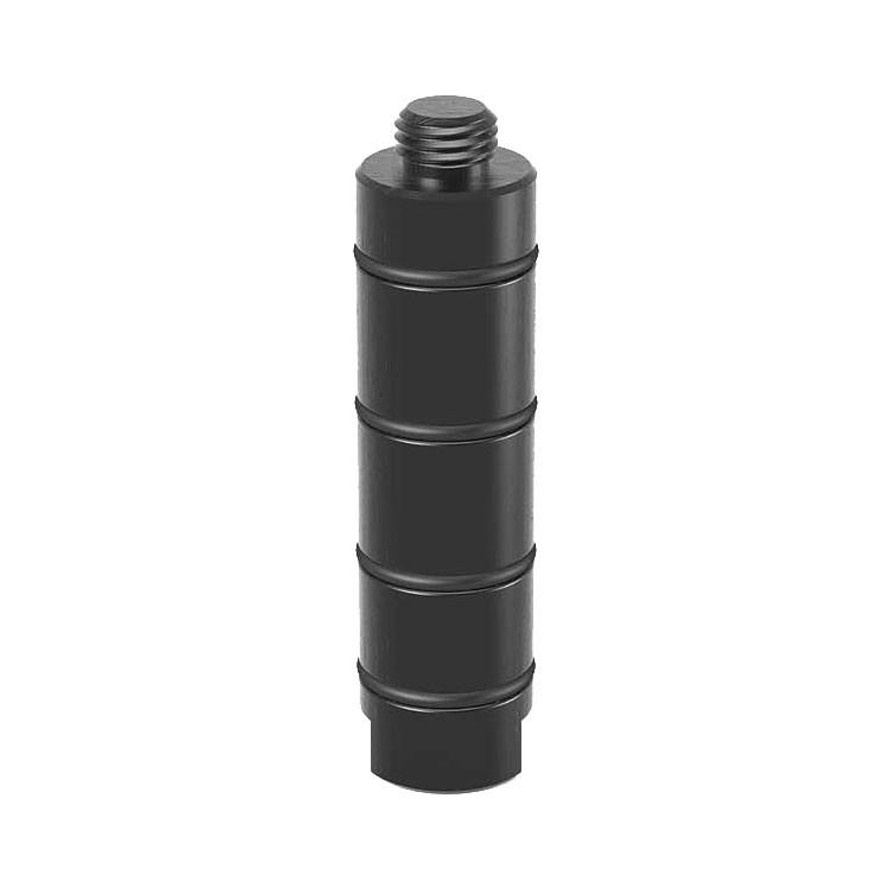

SHT-S2-280649-2 100mm Prism Extension 100mm
(3.9")
28mm
(1.1")
0.45kg
(1.0lbs)

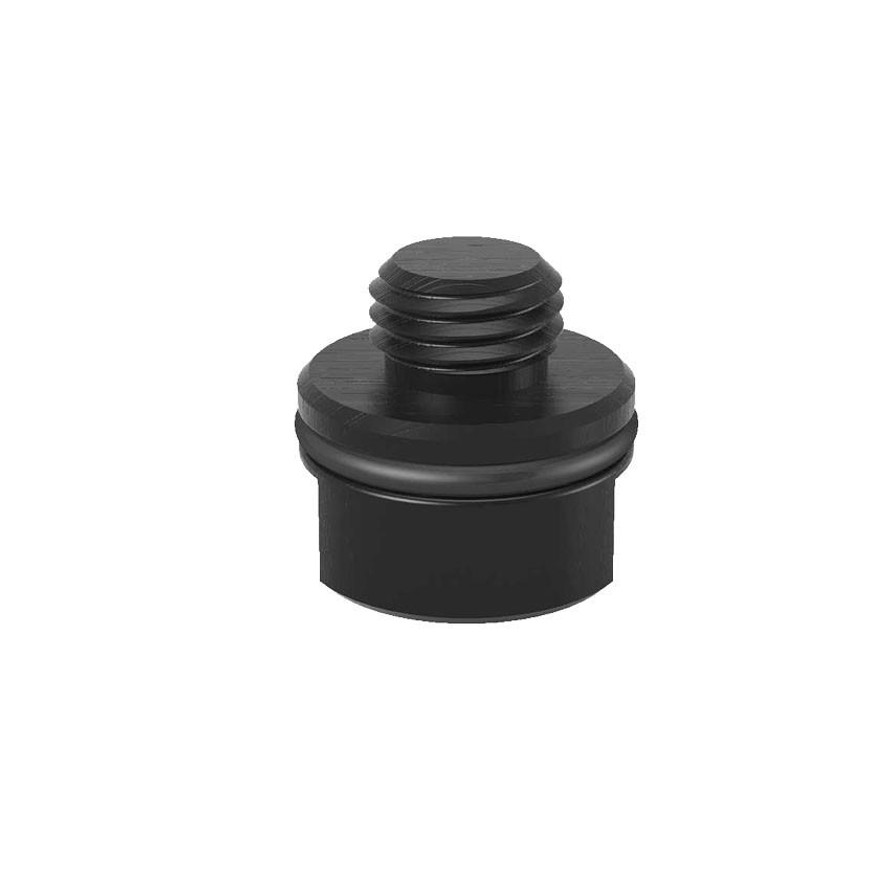

SHT-S2-280669 Prism Collar Screw
W/ Countersunk Bolt
27mm
(1.1")
28mm
(1.1")
0.1kg
(0.2lbs)



View AllClose

Additional Information

Accessory Type:
V-Blocks
Table Brand:
Siegmund
Table Hole Dia.:
28 mm
