Description

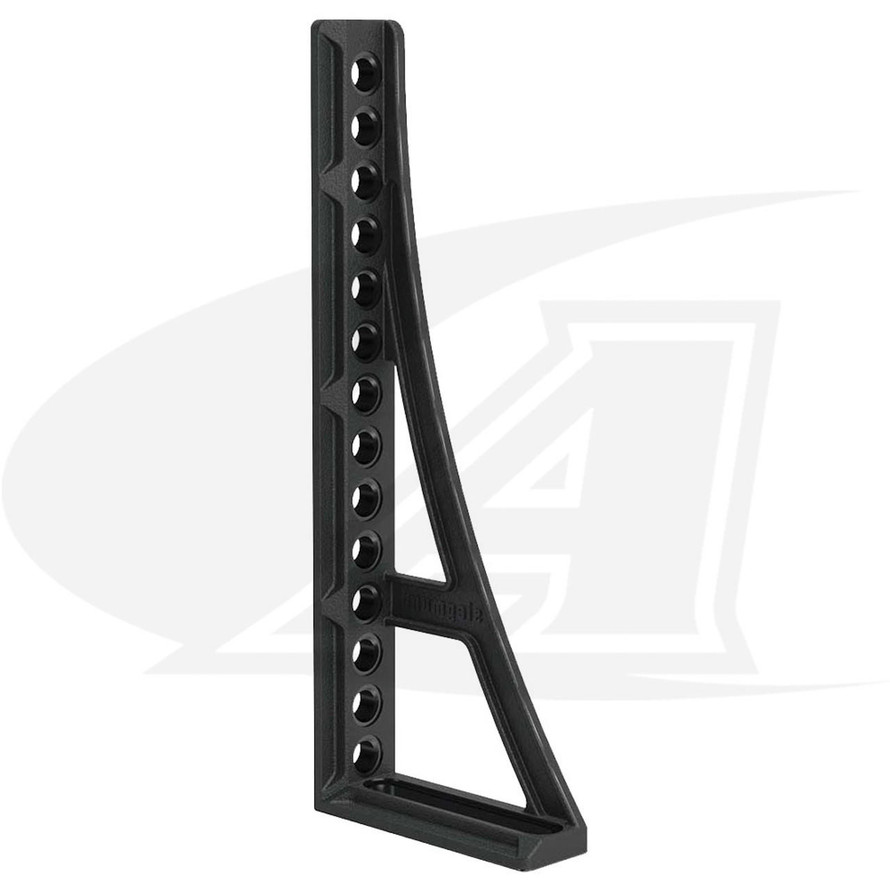

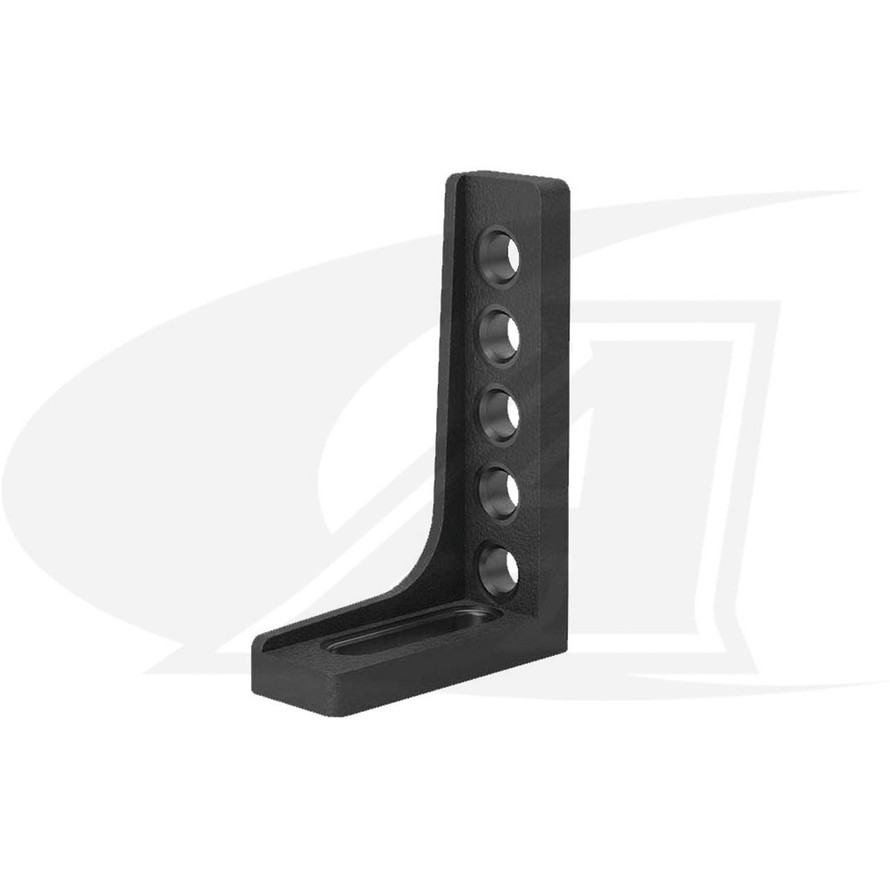

Cast Clamping Squares (Select Size From Drop Down Menu Above)
Cast Stop and Clamping Squares are manufactured from high quality ductile cast iron. Their larger size and more robust construction allows them to stop larger parts and bear heavier loads when used as a table extension. Their cast construction means greater precision while cut outs are optimized for lighter weight and easier handling. New clamping squares with rotation slots provide more ways to create angled fixtures.
Some squares come in two versions with stops on either the left or right side.
| Part Number | Name | Orientation | L x W x H | Thickness | Weight |
|---|---|---|---|---|---|
| SHT-S2-280152 | 300 G | Left-Hand | 200mm x 75mm x 300mm (7.9" x 2.9" x 11.8") |
27mm (1.1") | 6.0kg (13.2lbs) |
| SHT-S2-280162 | 500G | Left-Hand | 200mm x 75mm x 500mm (7.9" x 2.9" x 19.7") |
27mm (1.1") | 9.4kg (20.7lbs) |
| SHT-S2-280164 | 500 G W/ Rotation Slot | Left-Hand | 276mm x 95mm x 500mm (10.9" x 3.7" x 19.7") |
27mm (1.1") | 11.5kg (25.4lbs) |
| SHT-S2-280165 | 500 G W/ Rotation Slot | Right-Hand | 276mm x 95mm x 500mm (10.9" x 3.7" x 19.7") |
27mm (1.1") | 11.5kg (25.4lbs) |
| SHT-S2-280166-P | 750 G (Nitrided) | Left-Hand | 276mm x 85mm x 750mm (10.9" x 3.3" x 29.5") |
27mm (1.1") | 13.6kg (30.0lbs) |
| SHT-S2-280167-P | 750 G (Nitrided) | Right-Hand | 276mm x 85mm x 750mm (10.9" x 3.3" x 29.5") |
27mm (1.1") | 13.6kg (30.0lbs) |
Specifications
View AllCloseAdditional Information
|
Accessory Type:
|
Stops/Squares
|
|
Table Brand:
|
Siegmund
|
|
Table Hole Dia.:
|
28 mm
|
