Description

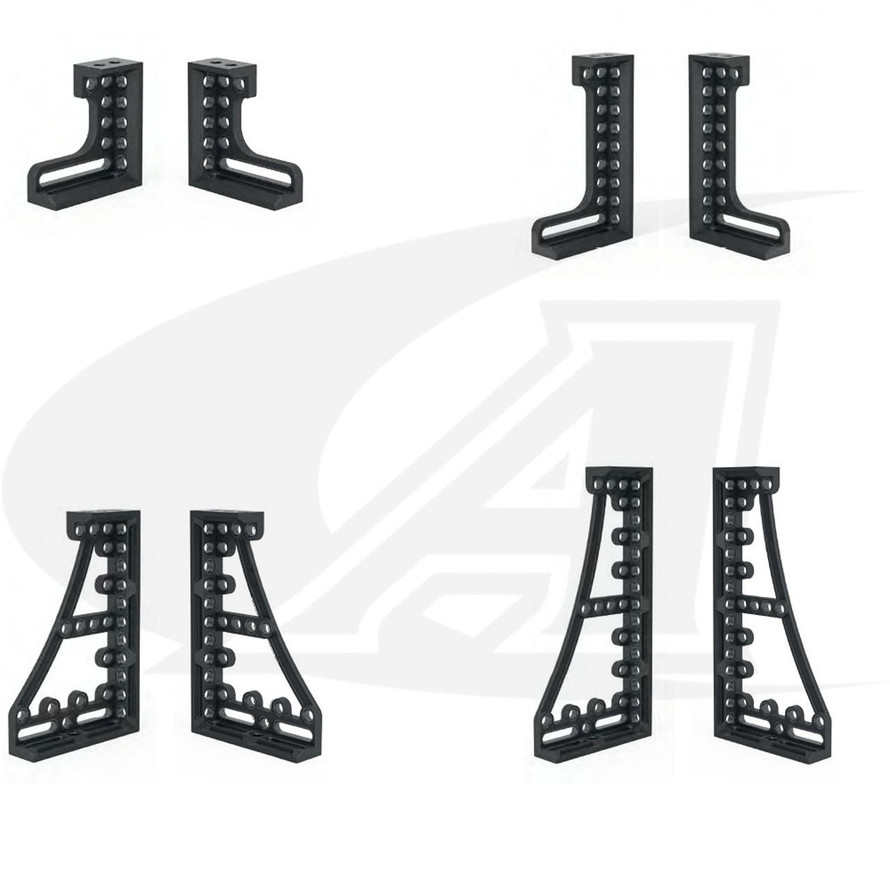

Heavy-Duty Cast Clamping Squares (Select Size From Drop Down Menu Above)

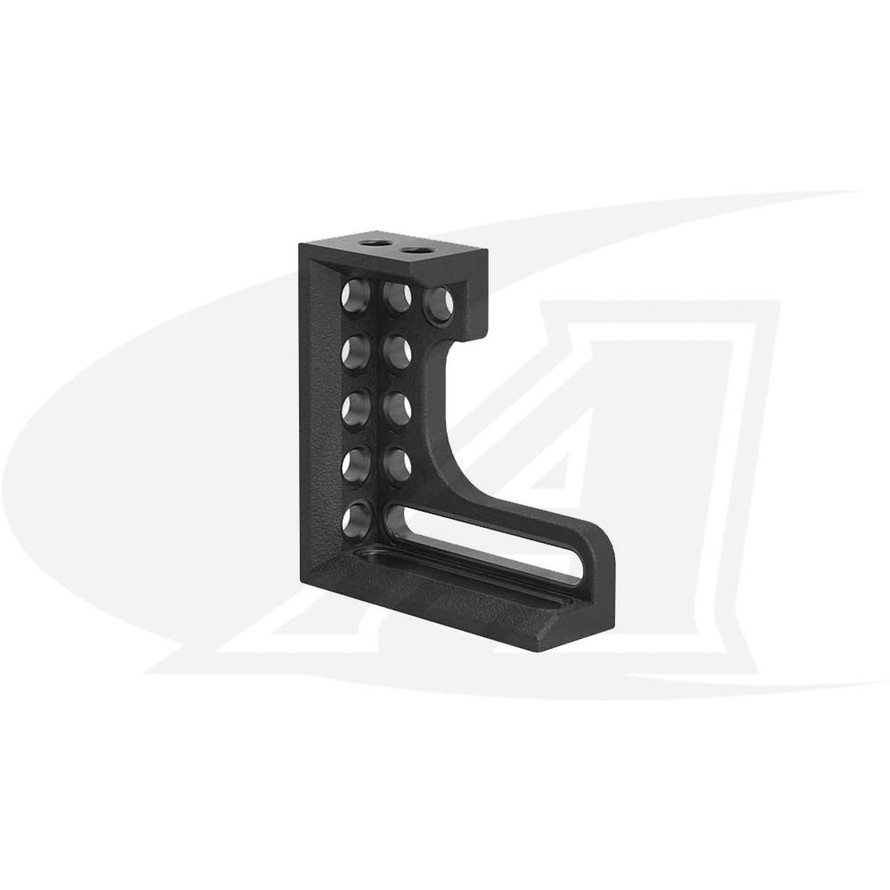

3D Stop and Clamping Squares are manufactured from high quality ductile cast iron and specifically designed to
handle heavy parts.
They serve equally well for stopping large parts, serving as table extensions, or building vertically. Cut outs are optimized for lighter weight and easier handling, while the hardening process makes them even stronger and more durable.
Aluminum-titanium versions featuring 50 - 60% weight reductions also available on special order. Squares come in two versions with stops on either the left or right side.
| Part Number | Name | Orientation | L x W x H | Thickness | Weight |
|---|---|---|---|---|---|
| SHT-S2-280124-P | 300 GK (Nitrided) | Left-Hand | 280mm x 95mm x 300mm (11.0" x 3.7" x 11.8") |
27mm (1.1") | 12.9kg (28.4lbs) |
| SHT-S2-280126-P | 300 GK (Nitrided) | Right-Hand | 280mm x 95mm x 300mm (11.0" x 3.7" x 11.8") |
27mm (1.1") | 12.9kg (28.4lbs) |
| SHT-S2-280130-P | 500 GK (Nitrided) | Left-Hand | 280mm x 95mm x 500mm (11.0" x 3.7" x 19.7") |
27mm (1.1") | 17.5kg (38.6lbs) |
| SHT-S2-280132-P | 500 GK (Nitrided) | Right-Hand | 280mm x 95mm x 500mm (11.0" x 3.7" x 19.7") |
27mm (1.1") | 17.5kg (38.6lbs) |
| SHT-S2-280134-P | 600 GK (Nitrided) | Left-Hand | 376mm x 95mm x 600mm (14.8" x 3.7" x 23.6") |
27mm (1.1") | 22.5kg (49.6lbs) |
| SHT-S2-280136-P | 600 GK (Nitrided) | Right-Hand | 376mm x 95mm x 600mm (14.8" x 3.7" x 23.6") |
27mm (1.1") | 22.5kg (49.6lbs) |
| SHT-S2-280144-P | 800 GK (Nitrided) | Left-Hand | 376mm x 95mm x 800mm (14.8" x 3.7" x 31.5") |
27mm (1.1") | 27.0kg (59.5lbs) |
| SHT-S2-280146-P | 800 GK (Nitrided) | Right-Hand | 376mm x 95mm x 800mm (14.8" x 3.7" x 31.5") |
27mm (1.1") | 27.0kg (59.5lbs) |
Specifications
View AllCloseAdditional Information
|
Accessory Type:
|
Stops/Squares
|
|
Table Brand:
|
Siegmund
|
|
Table Hole Dia.:
|
28 mm
|
