Description

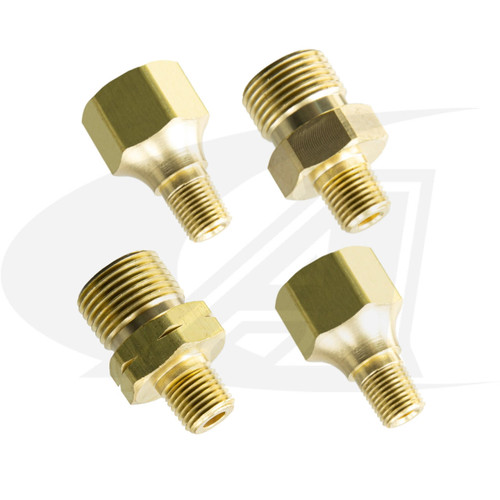

1/4" NPT Male Cylinder Adapter, Converts CGA Cylinder Outlets to 1/4" NPT Righ Hand Male Threads.
| Part # | Cylinder Side CGA Fitting | Gas Designation | Cylinder Side NGO Threads | Outlet | Max. Pressure |
|---|---|---|---|---|---|
| WES-B10 | CGA-300 | Commercial Acetylene | 0.825"-14 RH Male | 1/4" NPT Male | 500 PSIG (3,445kPa) (34.5BAR) |
| WES-B20 | CGA-320 | CO2 | 0.825"-14 RH Male | 1/4" NPT Male | 3,000 PSIG (20,670kPa) (207BAR) |
| WES-B-1320 | CGA-326 | Nitrous Oxide | 0.825"14 RH Male | 1/4" NPT Male | 3,000 PSIG (20,670kPa) (207BAR) |
| WES-B-1340 | CGA-346 | Air | 0.825"14 RH Male | 1/4" NPT Male | 3,000 PSIG (20,670kPa) (207BAR) |
| WES-B-30 | CGA-350 | Hydrogen/Natural Gas | 0.825"14 LH Male | 1/4" NPT Male | 3,000 PSIG (20,670kPa) (207BAR) |
| WES-B-40 | CGA-510 | POL Acetylene | 0.885"-14 RH Female | 1/4" NPT Male | 500 PSIG (3,445kPa) (34.5BAR) |
| WES-B-50 | CGA-540 | Oxygen | 0.903"-14 RH Male | 1/4" NPT Male | 3,000 PSIG (20,670kPa) (207BAR) |
| WES-B-60 | CGA-555 | Butane/Propane | 0.903"-14 LH Male | 1/4" NPT Male | 3,000 PSIG (20,670kPa) (207BAR) |
| WES-B-70 | CGA-580 | Argon/Helium/Nitrogen | 0.965"-14 RH Female | 1/4" NPT Male | 3,000 PSIG (20,670kPa) (207BAR) |
| WES-B-80 | CGA-590 | Industrial Air | 0.965"-14 LH Female | 1/4" NPT Male | 3,000 PSIG (20,670kPa) (207BAR) |
(Select Cylinder CGA Fitting From Drop Down Menu Above)
Note: All adapters are brass. Heaviest adapter is 8oz.
Specifications
View AllCloseAdditional Information
|
Cylinder Fittings:
|
Manifold Adapters
|
|
Cylinder Gas:
|
Oxygen
|
|
Cylinder Gas:
|
Acetylene
|
|
Cylinder Gas:
|
Argon-Helium-Nitrogen
|
|
Cylinder Gas:
|
Industrial Air
|
|
Cylinder Gas:
|
CO2
|
|
Cylinder Gas:
|
Nitrous Oxide
|
|
Cylinder Gas:
|
Air
|
|
Cylinder Gas:
|
Hydrogen-Natural Gas
|
|
Cylinder Gas:
|
Propane - Butane
|
