Description

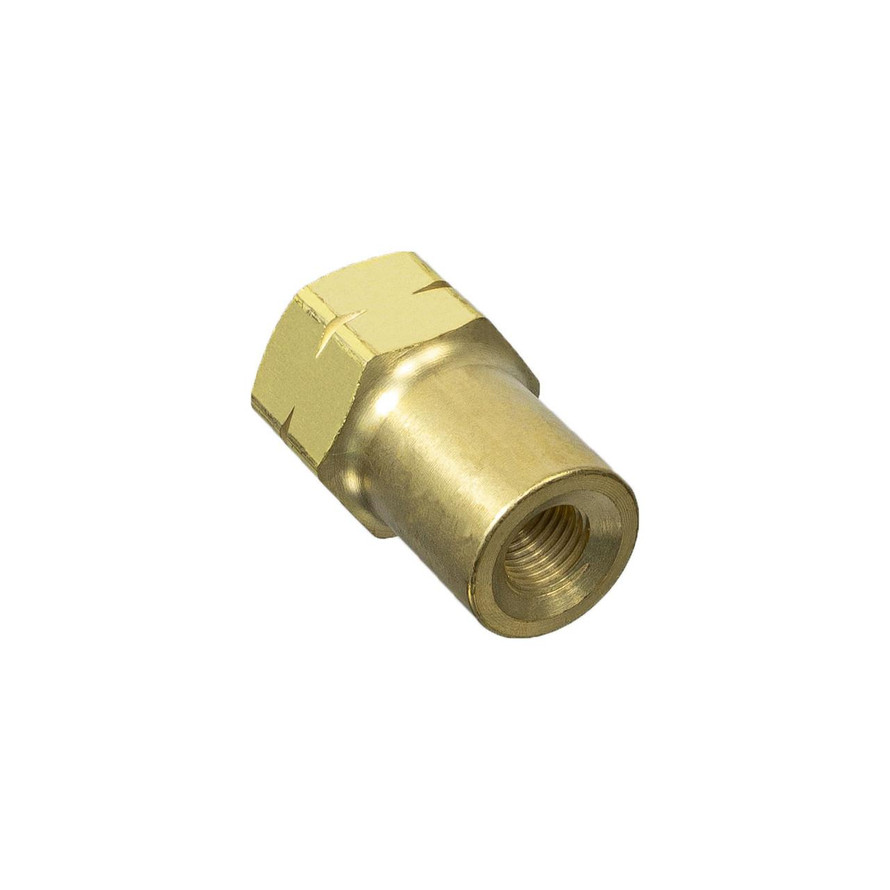

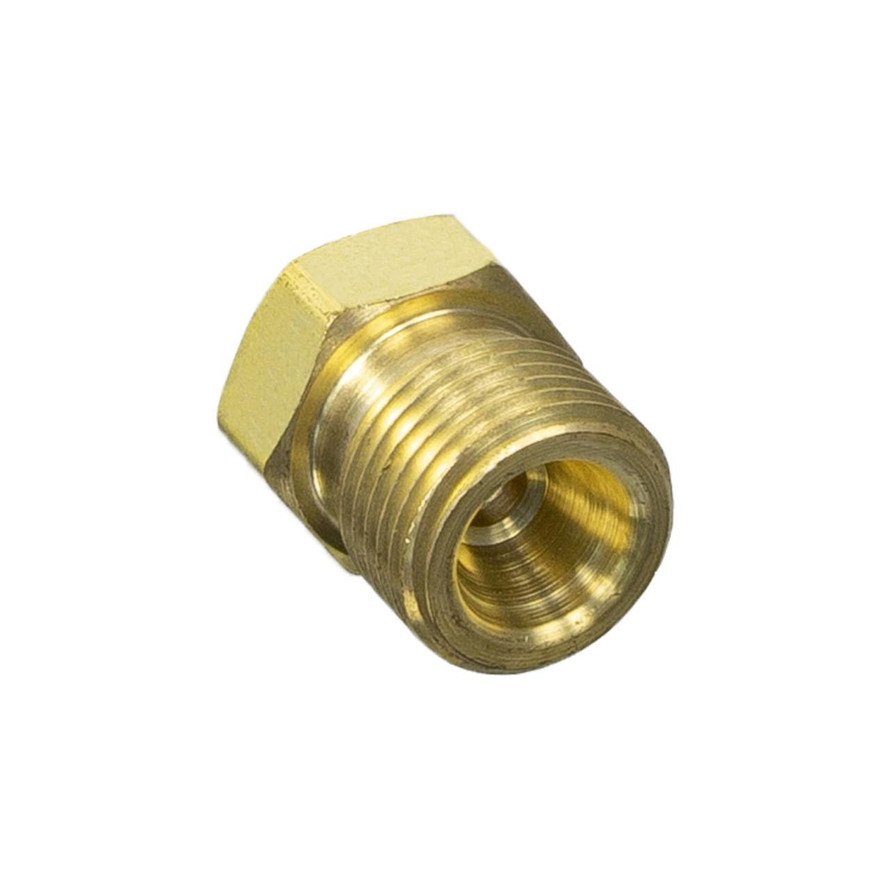

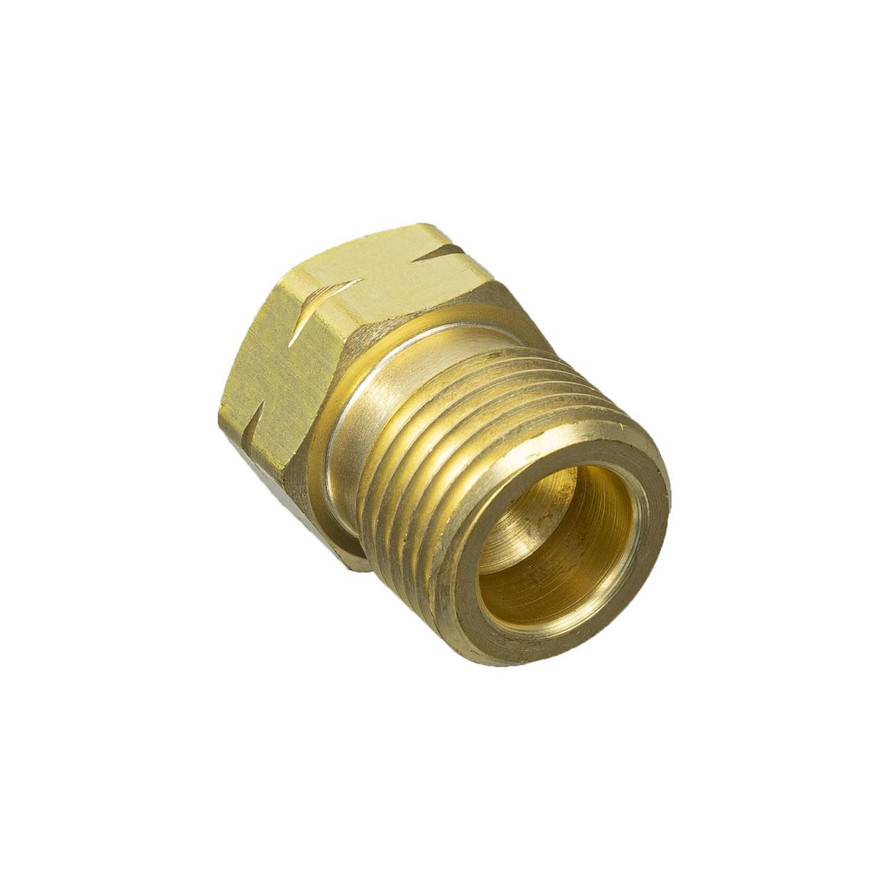

1/4" NPT Female Cylinder Bushing, Converts CGA Cylinder Outlets to 1/4" NPT Righ Hand Female Threads.
| Part # | Cylinder Side CGA Fitting | Gas Designation | Cylinder Side NGO Threads | Outlet | Max. Pressure |
|---|---|---|---|---|---|
| WES-15-1 | CGA-300 | Commercial Acetylene | 0.825"-14 RH Male | 1/4" NPT Female | 500 PSIG (3,445kPa) (34.5BAR) |
| WES-CO-2-1 | CGA-320 | CO2 | 0.825"-14 RH Male | 1/4" NPT Female | 3,000 PSIG (20,670kPa) (207BAR) |
| WES-1321-1 | CGA-326 | Nitrous Oxide | 0.825"14 RH Male | 1/4" NPT Female | 3,000 PSIG (20,670kPa) (207BAR) |
| WES-1341-1 | CGA-346 | Air | 0.825"14 RH Male | 1/4" NPT Female | 3,000 PSIG (20,670kPa) (207BAR) |
| WES-347-1 | CGA-347 | Air, High Pressure | 0.825"14 RH Male | 1/4" NPT Female | 5,500 PSIG (37,895kPa) (379BAR) |
| WES-800-1 | CGA-350 | Hydrogen/Natural Gas | 0.825"14 LH Male | 1/4" NPT Female | 3,000 PSIG (20,670kPa) (207BAR) |
| WES-500-1 | CGA-500 | Medical Mixtures | 0.885"-14 RH Female | 1/4" NPT Female | 3,000 PSIG (20,670kPa) (207BAR) |
| WES-16-1 | CGA-510 | POL Acetylene | 0.885"-14 RH Female | 1/4" NPT Female | 500 PSIG (3,445kPa) (34.5BAR) |
| WES-300-1 | CGA-510 (90° Fitting) | POL Acetylene | 0.885"-14 RH Female | 1/4" NPT Female | 500 PSIG (3,445kPa) (34.5BAR) |
| WES-415-1 | CGA-540 | Oxygen | 0.903"-14 RH Male | 1/4" NPT Female | 3,000 PSIG (20,670kPa) (207BAR) |
| WES-414-1 | CGA-555 | Butane/Propane | 0.903"-14 LH Male | 1/4" NPT Female | 3,000 PSIG (20,670kPa) (207BAR) |
| WES-416-1 | CGA-580 | Argon/Helium/Nitrogen | 0.965"-14 RH Female | 1/4" NPT Female | 3,000 PSIG (20,670kPa) (207BAR) |
| WES-417-1 | CGA-590 | Industrial Air | 0.965"-14 LH Female | 1/4" NPT Female | 3,000 PSIG (20,670kPa) (207BAR) |
| WES-660-1 | CGA-660 | Refrigerant Gases | 1.030"-14 RH Male | 1/4" NPT Female | 3,000 PSIG (20,670kPa) (207BAR) |
(Select Cylinder CGA Fitting From Options Above)
Specifications
View AllCloseAdditional Information
|
Cylinder Fittings:
|
Manifold Adapters
|
|
Cylinder Gas:
|
Oxygen
|
|
Cylinder Gas:
|
Acetylene
|
|
Cylinder Gas:
|
Argon-Helium-Nitrogen
|
|
Cylinder Gas:
|
Industrial Air
|
|
Cylinder Gas:
|
CO2
|
|
Cylinder Gas:
|
Nitrous Oxide
|
|
Cylinder Gas:
|
Air
|
|
Cylinder Gas:
|
Hydrogen-Natural Gas
|
|
Cylinder Gas:
|
Propane - Butane
|
|
Cylinder Gas:
|
Medical Gas Mixes
|
|
Cylinder Gas:
|
Refrigerant Gases
|
