Description
A-EWG-3 -XXX (Select Size From Options Above)

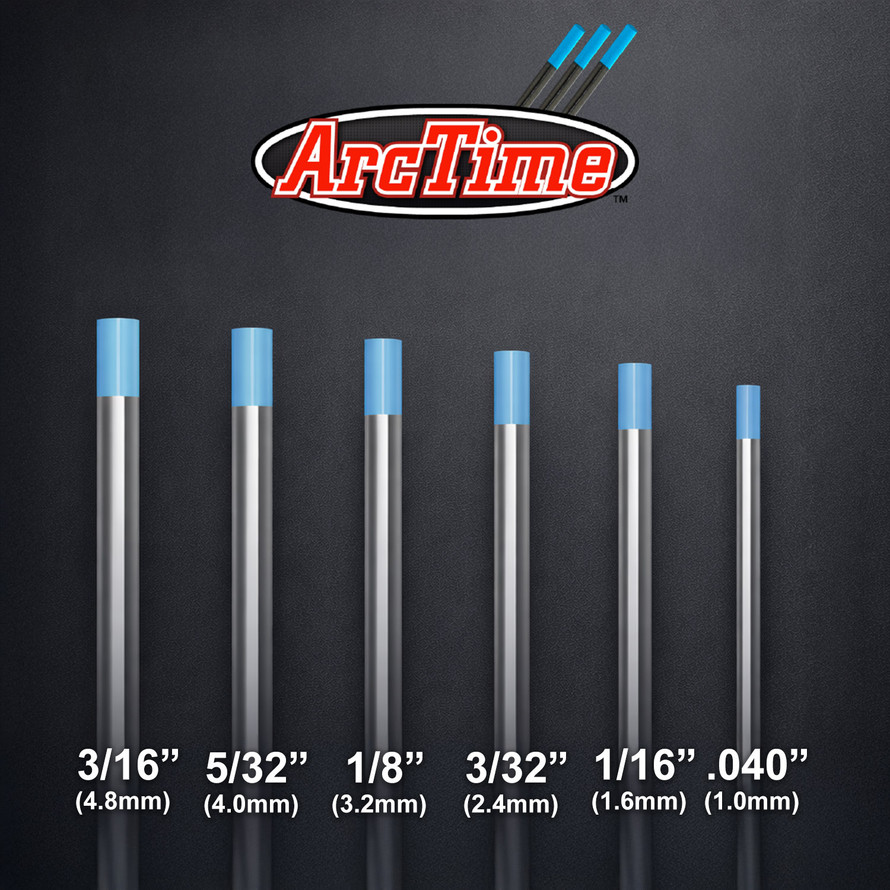

ArcTime™ Hybrid - "One Tungsten, No Limits"
State-of-the-Art tungsten formulated to improve weld quality with longer electrode tip life, superior arc stability and current continuity.
Manufactured to the highest standards with multiple concentrates of high-quality rare earth oxides expertly blended to maximize arc density for longer service life. Ideal for all current ranges on both AC / DC TIG and PAW machines.
ArcTime with it's distinctive Sky Blue Tip™ is a proprietary non-Thoriated blend engineered by Arc-Zone to be non-radioactive, and non-carcinogenic. The best non-radioactive replacement for 2% Thoriated (red tip) tungsten.
ArcTime™ tungsten electrodes meet or exceed all international welding standards.
Specifications:
AWS Class: EWG
ANSI / AWS A5. 12, JIS
DIN EN 26848, ISO 6848
Color Code: Sky Blue™
Package of Ten, 7" (175mm) Long.
Select Tungsten Size From Options Above
| Size | Part # |
|---|---|
| .040" (1.0mm) | A-EWG-3-040-7 |
| 1/16" (1.6mm) | A-EWG-3-116-7 |
| 3/32" (2.4mm) | A-EWG-3-332-7 |
| 1/8" (3.2mm) | A-EWG-3-125-7 |
| 5/32" (4.0mm) | A-EWG-3-532-7 |
| 3/16" (4.8mm) | A-EWG-3-316-7 |
Organize & Protect Your Tungsten Electrodes: Tungsten Storage Solution
Learn More About Tungsten Here:
Selecting Tungsten Electrodes: PDF
Grinding Tungsten Electrodes: PDF
Safety Data Sheet: PDF
What Makes a Quality Tungsten Electrode?
Prop 65 Compliant
Specifications
View AllCloseAdditional Information
|
Blend:
|
Hybrid Blends
|
|
Diameter:
|
.040" (1.0mm)
|
|
Diameter:
|
1/16" (1.6mm)
|
|
Diameter:
|
3/32" (2.4mm)
|
|
Diameter:
|
1/8" (3.2mm)
|
|
Diameter:
|
5/32" (4.0mm)
|
|
Weld Type:
|
Plasma
|
|
Weld Type:
|
TIG
|
|
Product Type:
|
Tungsten
|
|
Brand:
|
ArcTime
|
