Description

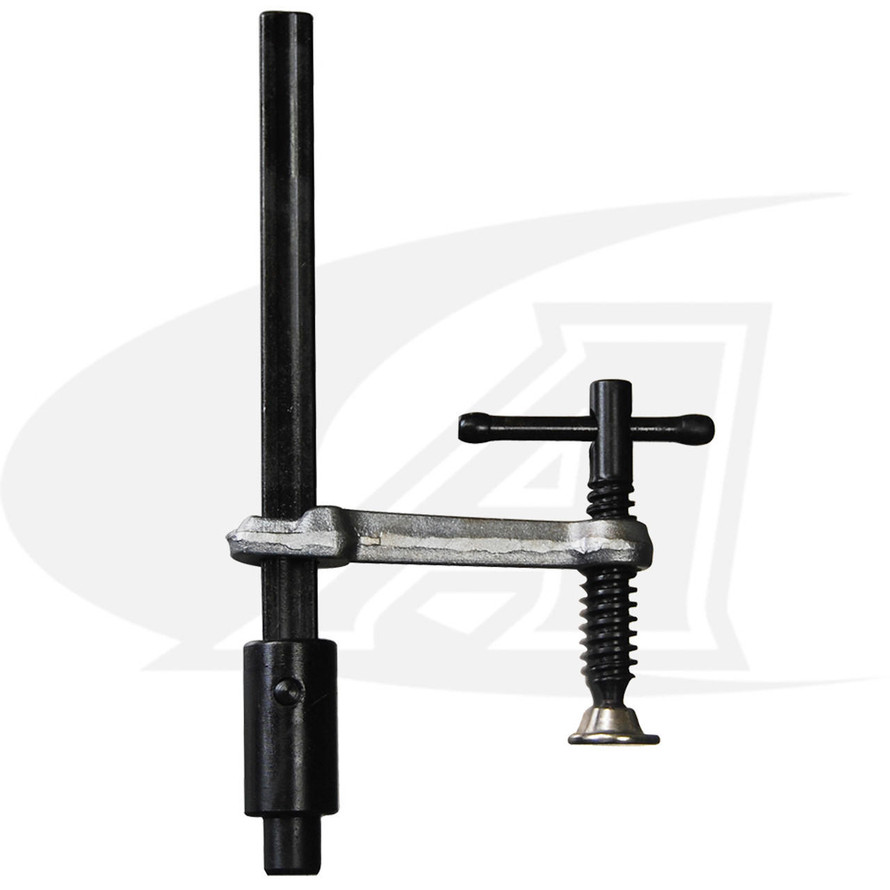

BuildPro™ Inserta Clamp With T-Handle (Choose Clamp Size From Options Above)
| Part # | SHT-UDN5150 | SHT-UEN5200 |
|---|---|---|
| Clamping Capacity | 6.5" (165mm) | 8.5" (215mm) |
| Throat Depth | 3-1/4" (82.5mm) | 4" (101mm) |
| Clamping Pressure | 300lbs (136kg) | 400lbs (181kg) |
| Rail Size | 0.63" (16mm) x 0.31" (7.8mm) | 0.78" (19mm) x 0.38" (9.6mm) |
| Weight | 1.2 lbs (0.5kg) | 2.2lbs (1kg) |
Place the Inserta Clamps into the 5/8" holes on the BuildPro™ Tabletop for fast and easy clamping. The Inserta Clamps automatically lock into the table holes for quick-set hold down clamping.
Place the Inserta Clamps into any of the holes on the sides or tops of the Riser Blocks, or Economy Stopos and Clamping Squares, for clamping in the vertical or horizontal position, at any height.

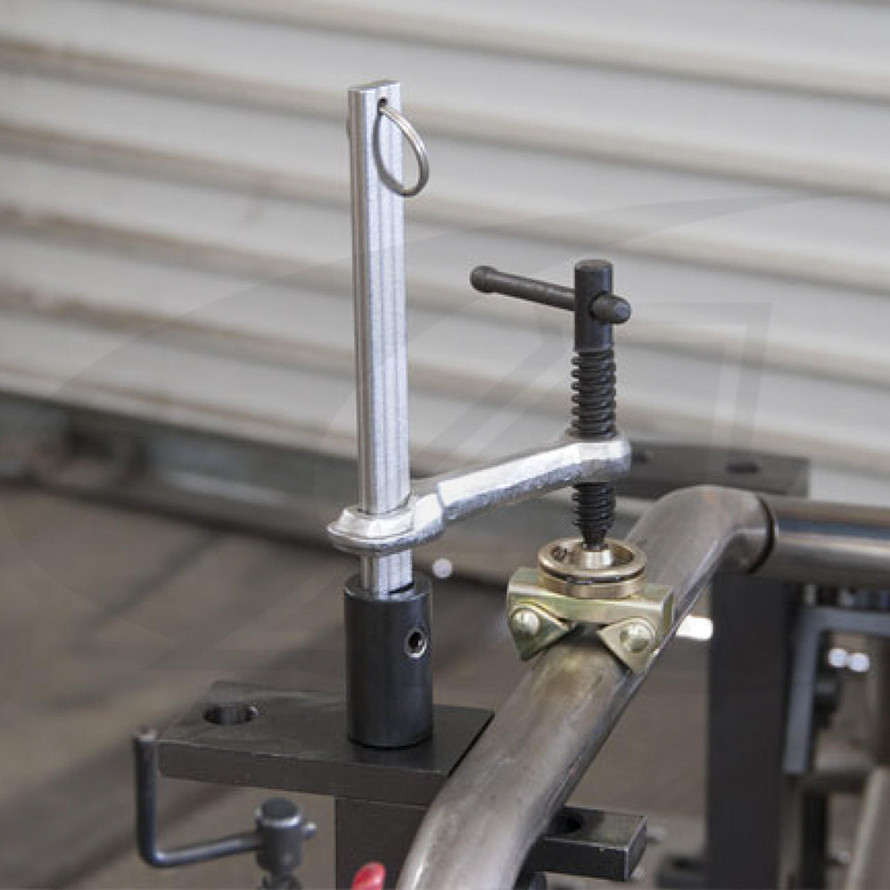

Clip the optional Top V-Pads onto the top spindle to clamp round or angled stock. Remove the clamp arm by depressing the spring stop, and slide the Sidekick attachment onto the clamp bar, followed by the clamp arm, for two point horizontal and vertical clamping force.
Specifications
View AllCloseVideos
View AllClose
Additional Information
|
Accessory Type:
|
Clamps
|
|
Table Brand:
|
Alpha 5/8
|
|
Table Brand:
|
BuildPro
|
|
Table Hole Dia.:
|
5/8"
|
