Description

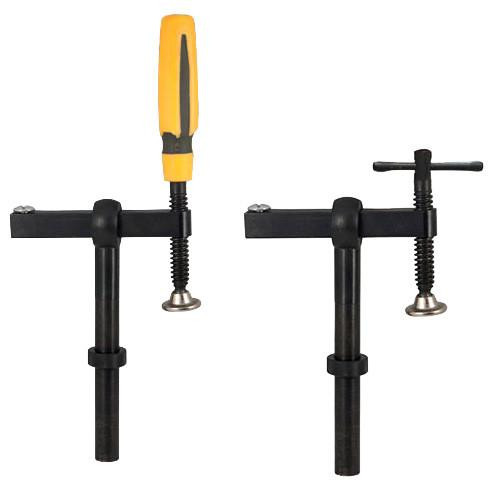

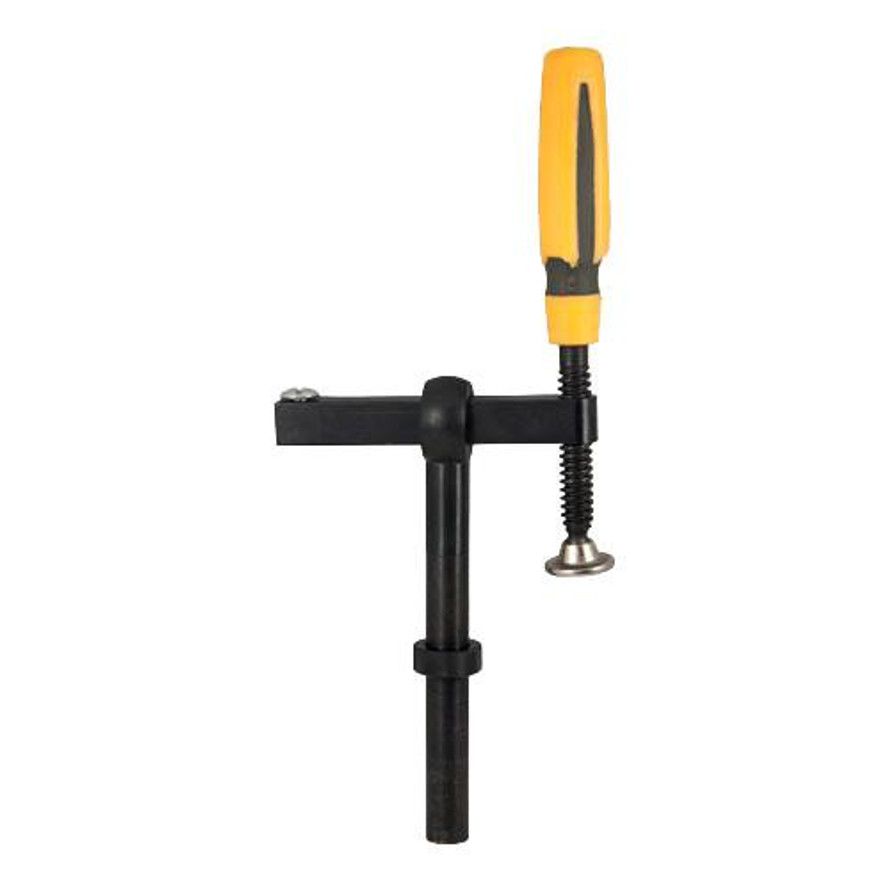

BuildPro™ T-Post Clamp (Select Style From Options Above)
Place the Adjustable T-Post Clamp in any of the ∅5/8 holes on the BuildPro Tabletop, or Heavy Duty Riser Blocks, for vertical hold down clamping.
Adjust the clamp arm along the vertical or horizontal axis for each unique hold down application. Move the Stop Ring as needed to set the height of the clamp.
Part # | SHT-T51650 | SHT-T51655 |
---|---|---|
Clamping Capacity | 4.5" (114mm) | 4.5" (114mm) |
Throat Depth | 3-1/4" (82.5mm) | 3-1/4" (82.5mm) |
Handle Style | Straight Handle | T-Handle |
Weight | 1.4 lbs (0.6kg) | 1.4 lbs (0.6kg) |
Specifications
View AllCloseAdditional Information
Accessory Type:
|
Clamps
|
Table Brand:
|
Alpha 5/8
|
Table Brand:
|
BuildPro
|
Table Hole Dia.:
|
5/8"
|
