Cyclone 262i - Compact, Powerful MIG/Stick Welder

Cyclone 262i

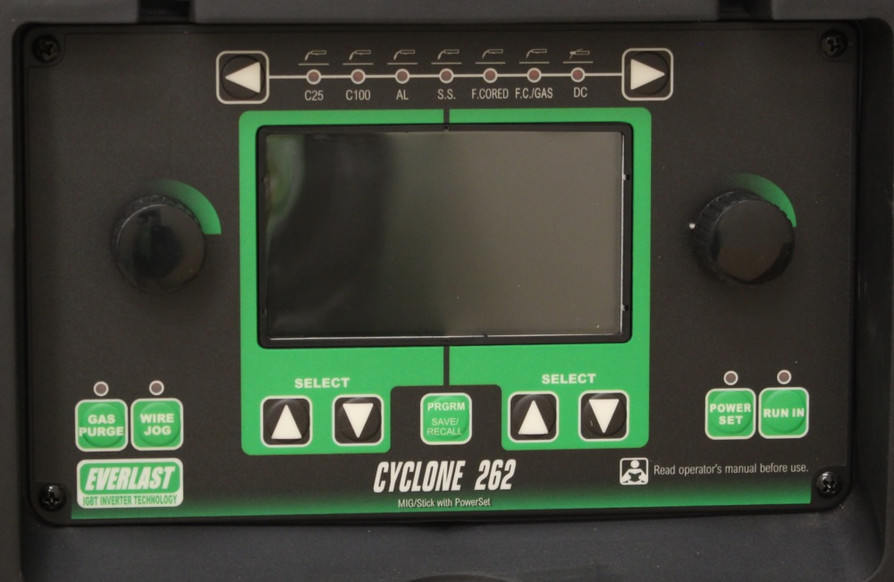

Compact and powerful, the Cyclone 262i delivers the precision MIG and Stick performance that is demanded by modern industrial fabrication and welding shops. However, due to it's size and design it fits right at home in almost garage or shop, small or large. The unit features next-level performance with a easy to read 4.3" TFT color LCD display that features bright, large and easy-to-read numerical readouts for output.

The unit has a long list of advanced features that include automatic run-in control, adjustable start and end wire feed speeds for crater filling and easy start up, up and down slope of wire feed speeds to work with 2T and 4T functions, adjustable inductance, Spot and Stitch Timers, and pre and post gas flow control. These features combine to make it one of the most advanced models in the 250A+ class available.

Don't forget the unit is both a MIG and Stick welder. As a stick welder, the unit shines and is able to handle most any welding rod class, including rods with cellulose based flux like E6010.

The unit stick functions include arc force control, hot start and hot start duration to allow the user to tailor how the unit performs with each rod and position. And when needed, the unit performs well with the optional Parker DSP 360 Spool Gun or the Parker SGP 360A Push Pull Gun. The unit has an industry leading 50% duty cycle at 275A so that you can stay on task without long cool down delays.

If you prefer simple control and setup, don't let the long list of features deter you. The controls are intuitive and easy to work. But if it still seems a bit much, this unit has our advanced "PowerSet" function, which automatically does most of the setup work for you. Just input into the machine basic parameters such as wire size, metal thickness and the machine automatically sets the unit for you. It even works in stick mode. This popular feature is used and enjoyed by both beginners and professionals to speed up and simplify the setup process.

If you find a program you like and don't want to forget it, the unit is able to save multiple programs. This also helps in maintaining ultimate control and standards when doing code work.

Stock wire size is .035" and .045", but options exist to run from .023" to .062" wire.

Features:

GMAW/SMAW Operation (MIG/Stick)
4.3" TFT Color Display
PowerSet Function
Commercial/Industrial performance
Spot and Stitch timer
Burn back control
Start/End Wire Feed Speed
Up/Down Slope 2T/4T function
Heavy Duty Cast aluminum true driven 4 roll feed mechanism
Euro Quick connect series 36 MIG gun (Binzel/Trafimet compatible)
Arc force control useful for fine tuning arc characteristics in MIG and Stick modes
Save multiple programs with memory function
Suitcase size, holds a 12" (30-44 lbs) roll of welding wire, or can use an 8" (10-12 lbs) with an adapter.
Digitally Controlled IGBT Inverter with programmable memory
Gas Purge and Wire Jog Functions
Run-in Feature
Stick weld features E6010 capability
Dual Fan Cooling
Hot Start Time 0-2 Seconds
Hot Start Intensity 0-100%
MIG Inductance 0-100%
Spot Timer .5-15S
Stitch Timer 0-15S
Spool Gun (Parker DSP 360) and Push Pull Gun Compatible (Parker SGP 360A)

Comes Complete With:

36 series MIG Gun with Euro quick-connect 10 ft. and M8 Contact Tip Holder
Ground Clamp with 10 ft. cable and 35 DINSE connector
Stick Electrode Holder with 10 ft. cable and 35 DINSE connector
RH-191 Argon/CO2 Flowmeter Regulator with Hose
Drive Roll V Groove .035"-.045" (Double) (installed)
Spare Drive Roll V Groove .023"-.030" (Double)
Spare M8 Contact Tips
Spool Adapter 8"

Recommended Areas of Use:

Home shop
Automotive garages/ Muffler shops
Fabrication/Industrial manufacturing.
Farm
Motorsports/Speed shops
Factory Repair/Maintenance

Recommended Metals:

Steel
Stainless Steel
Chrome Moly Steel
Aluminum (with optional spool gun)

Minimum/Maximum:

MIG:

Weld up to a maximum of 7/16" in a single pass weld Steel/Stainless
Weld up to 3/4"+ in multiple pass welds Steel/Stainless
Weld a minimum of 24 gauge Steel/Stainless
Weld a minimum of 14 gauge Aluminum
Weld a maximum of 1/4" Aluminum Single Pass
Weld a maximum of 3/8" Aluminum Multi-Pass

Stick:

Weld with a Minimum of 1/16" Electrode
Weld with a Maximum of 5/32" Electrode

Stick Note: Maximum electrode diameter is ultimately determined by electrode type and manufacturer recommendations.

MIG Notes:

Never purchase a welder for the Minimum or Maximum settings for daily use. Always pick a number somewhere between the two for your daily average thicknesses. Minimum and Maximum settings are subject to operator skill, knowledge, wire diameter, joint prep, joint type, weld gas mix and welding position. The minimum and maximum capacity ratings may require an optional liner and/or an additional MIG Gun, and drive rolls to achieve. Steel/Stainless maximum figures are based off of a Spray Transfer, in flat position with a suitable spray-capable gas mixture.
As a best practice, MIG welding Aluminum for structural use should be conducted in Spray Transfer only. Spray Transfer MIG minimum for Aluminum is generally considered to be 1/8" and used in the flat position only. Thinner material may be welded in short circuit for decorative use. Standard MIG welding of Aluminum, due to the fluidity of the puddle, is conducted only in flat and in limited horizontal positions.
For welding Aluminum structurally, Pulsed Spray Transfer allows the user to weld in other positions including vertical and overhead. This unit is not a pulsed spray unit. For Pulsed Spray and out of position welding, purchase one of our Pulse MIG units.
Purchase a Parker DSP360 Spool Gun, Parker SGP 360A Push-Pull gun, or North/Everlast MGP series Push-Pull gun to weld Aluminum. You may also purchase .035"/.045" U groove drive roll 2 pc kit and polymer liner for standard 10 ft gun to weld Aluminum.

Notes:

When used on a generator, use only with a generator rated for at least 12,500 surge watts and rated for 5% or less THD (Clean power). Consult manufacturer of generator as to whether the power generated by the unit falls within the 5% or less THD. Operation on undersized, or "dirty" powered generators will void the warranty.

When operating with .023" and .030" wire, smaller drive rolls must be used and a smaller MIG gun or liner should be purchased for proper feeding.
