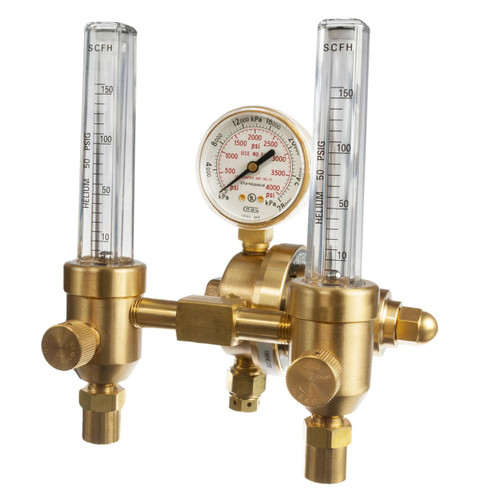

Dual Helium Flowmeter Regulator w/Gas Hose

(No reviews yet) Write a Review
MPN:
196HE-150
Minimum Purchase:
1 unit
$278.00 - $461.00

Description

Gentec® Premium Dual Helium Flowmeter & Purge Hose Kit  (select option from drop down menu)

Arc-Zone® Pro kits are built with the Gentec® Premium Dual Flow Meter engineered to deliver precise control of primary (Torch) and secondary (Back Purge) shield gases.  Additionaly you can set it up to accurately regulate the flow of welding gases to two separate welding processes from a single gas cylinder.

Example:
Supply a TIG torch and a backup purge bar, tube/pipe plug, secondary shield nozzle, trail shield or flooding cup. Use one side of the flow meter as an argon supply for your MIG machine when welding aluminum etc.

High-Quality Dual Flowmeter/Regulator:

  • Body machined from class "A" brass bar stock
  • Single Stage Construction
  • Monitor two separate processes at the same time
  • Polycarbonate flow tube and outer cover are impact resistant for maximum durability
  • Conforms to CGA E-4 standard for gas pressure regulators

Three (3) Kits to Choose from:

1. Dual Gas Flow Meter Only

Gentec® Premium Dual Gas Helium Flow Meter

2. Dual Gas Flow Meter Starter Kit: (Does not include secondary purge hose kit)

  • Gentec® Premium Dual Helium Gas Flow Meter
  • 6' (1.8m) Primary Gas Supply Hose from Cylinder to Welding Machine
  • Gas Port Plug with leash chain allows you to cap off the second gas port when not purging, insuring no gas leaks.

3. Dual Gas Flow Meter Pro Kit:

  • Gentec® Premium Dual Gas Helium Flow Meter
  • 6' (1.8m) Primary Gas Supply Hose from Cylinder to Welding Machine
  • 30' (9.1m) Long Secoundary Purge Gas Hose with Quick-Disconnect Fittings
  • Gas Port Plug with leash chain allows you to cap off the unused gas port when not purging, insuring no gas leaks.
  • Vacuum caps on flow tubes to eliminate gas leaks and atmosphere contamination
  • 6" (0.15m) long whip hose with quick-disconnect
  • Gas flow test gauge
  • Spare fittings and hose adapters to thread into purge caps or plugs
  • DIY gas fittings so you can custom tailor your purge hose for the job at hand!

    Everything you need to Purge Like-a-Pro is in one kit!
Part Number GEN-196HE-150 JWS-196HE-150-DFM JWS-196HE-150-LQD
Gas Inlet from Tank CGA-580
Gases Helium
Gas Outlet  5/8"18RH Female (2-Ports)
Flow Range 0-150 CFH (0-70.8 LPM)
Output Pressure 50 PSIG
Secondary Port Plug -- Included Included
Gas Hose to Machine -- 6' (1.8m)
Customizable Length
6' (1.8m)
Customizable Length
Secondary Purge Gas Line -- --

30' (9.1m) Customizable Hose
w/ Quick-Disconnect
12" (0.3m) Whip - Hose

Quick Disconnect -- -- High-Quality Gas QD
Extra Purge End Fittings -- -- 5/18" x 18 Gas Nipple & Nut
1/4" NPT Male / Hose Barb
Gas Flow Test Gauge -- -- Included
