Miller/Weldcraft

Dual Argon/Helium/Co2 Flowmeter Regulator w/Gas Hose

(1 review) Write a Review
UPC:
144952761920
MPN:
23-50-580
Minimum Purchase:
1 unit
  • Miller/Weldcraft Dual Argon/Helium/Co2 Flowmeter Regulator w/Gas Hose
  • Miller/Weldcraft Dual Argon/Helium/Co2 Flowmeter Regulator w/Gas Hose
  • Miller/Weldcraft Dual Argon/Helium/Co2 Flowmeter Regulator w/Gas Hose
  • Miller/Weldcraft Dual Argon/Helium/Co2 Flowmeter Regulator w/Gas Hose
  • Miller/Weldcraft Dual Argon/Helium/Co2 Flowmeter Regulator w/Gas Hose
  • Miller/Weldcraft Dual Argon/Helium/Co2 Flowmeter Regulator w/Gas Hose
  • Miller/Weldcraft Dual Argon/Helium/Co2 Flowmeter Regulator w/Gas Hose
  • Miller/Weldcraft Dual Argon/Helium/Co2 Flowmeter Regulator w/Gas Hose
  • Miller/Weldcraft Dual Argon/Helium/Co2 Flowmeter Regulator w/Gas Hose
  • Miller/Weldcraft Dual Argon/Helium/Co2 Flowmeter Regulator w/Gas Hose
$334.20 - $397.00

Description

Miller® (formerly Smith®) Precision Series Dual Argon, Helium & Co2  Flowmeter & Purge Hose Kit  (select option from drop down menu)

Accurately regulate the flow of welding gases to two separate welding processes from a single gas cylinder. Use with a torch and a backup purge bar, secondary shield nozzle, trail shield or flooding cup.

Dual Flowmeter/Regulator Delivers Precise Control of Argon / Helium & Co2 Shield Gases.

  • Precise control of TIG/GTAW Argon, Helium & Argon/Co2 Shield Gases
  • Back Pressure Compensated Flow Tube
  • Durable Lexan™ Flow Tube Cover

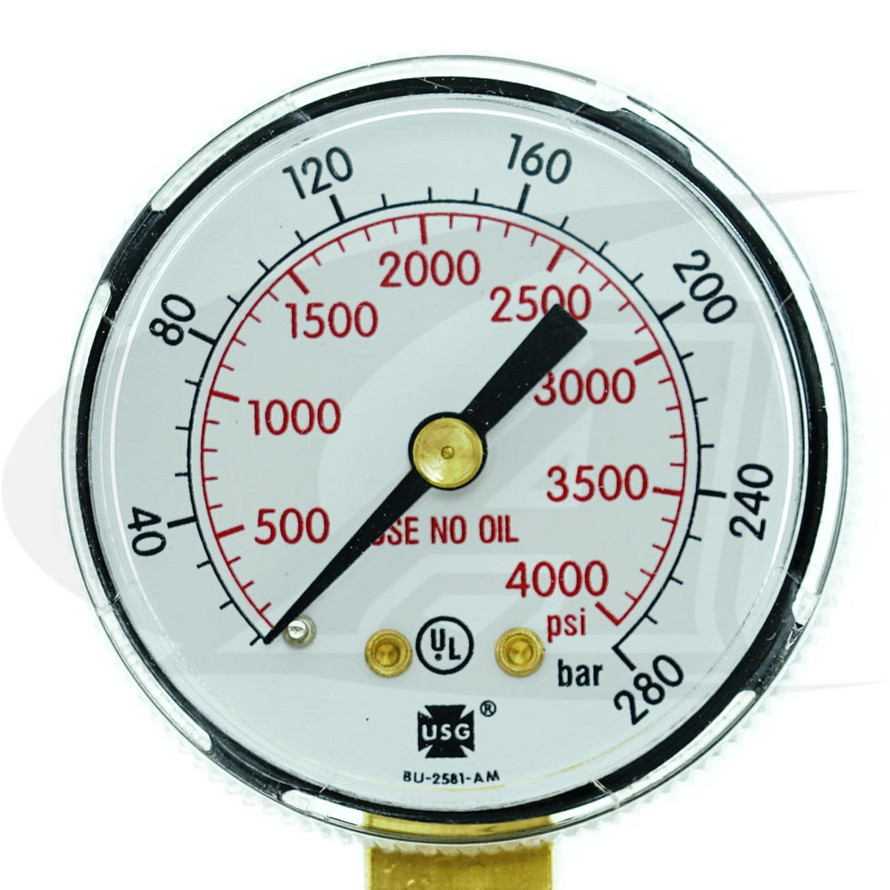

  • Large 2" Polished Brass Cylinder Contents Gauge
  • Selec-O-Gas™ Flowmeter
  • Clearly visible red flow meter balls for easy adjustment
  • Uses CGA 580 Right Hand Male Cylyinder Connection
  • Engineered for long trouble-free performance
  • Three (3) year No hassle warranty
  • Made in USA by Miller®

Three (3) Kits to Choose from:

1. Dual Gas Flow Meter Only

Miller® Prcision Series Dual Gas Argon, Helium & Argon/Co2 Flow Meter

2. Dual Gas Flow Meter Starter Kit: (Does not include secondary purge hose kit)

  • Miller® Prcision Series Dual Gas Argon, Helium & Argon/Co2 Flow Meter
  • 6' (1.8m) Primary Gas Supply Hose from Cylinder to Welding Machine
  • Gas Port Plug with leash chain allows you to cap off the second gas port when not purging, insuring no gas leaks.

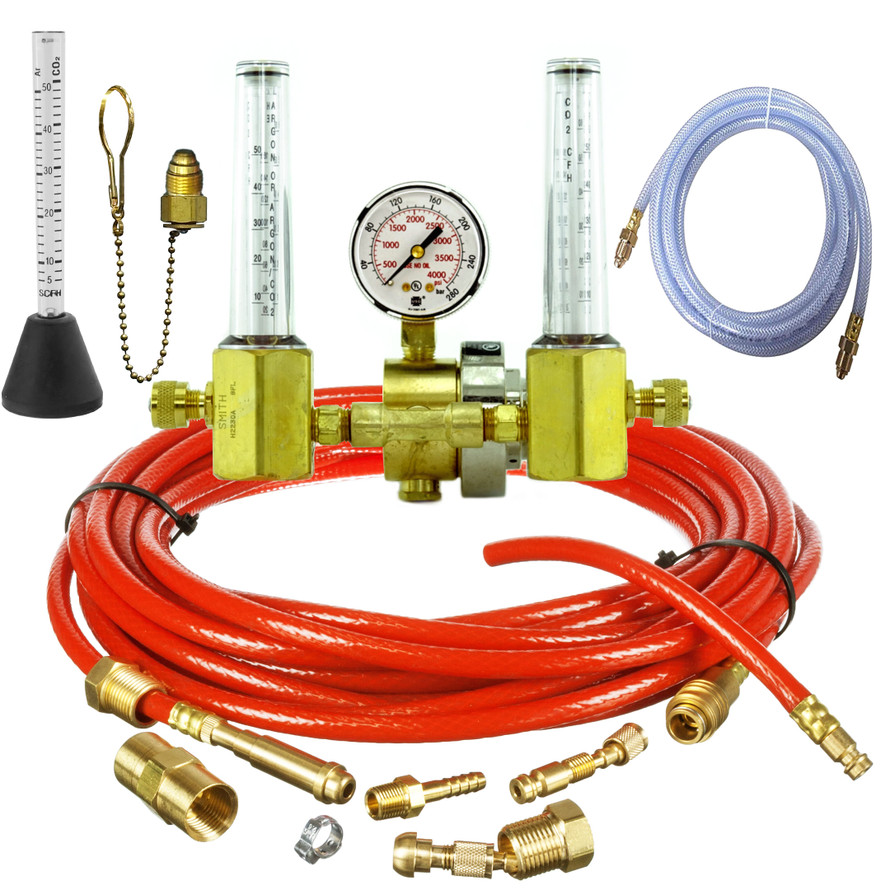

3. Dual Gas Flow Meter Pro Kit:

  • Miller® Prcision Series Dual Gas Argon, Helium & Argon/Co2 Flow Meter
  • 6' (1.8m) Primary Gas Supply Hose from Cylinder to Welding Machine
  • 30' (9.1m) Long Secoundary Purge Gas Hose with Quick-Disconnect Fittings
  • Gas Port Plug with leash chain allows you to cap off the unused gas port when not purging, insuring no gas leaks.
  • Vacuum caps on flow tubes to eliminate gas leaks and atmosphere contamination
  • 6" (0.15m) long whip hose with quick-disconnect
  • Gas flow test gauge
  • Spare fittings and hose adapters to thread into purge caps or plugs
  • DIY gas fittings so you can custom tailor your purge hose for the job at hand!

    Everything you need to Purge Like-a-Pro is in one kit!

Kit Options:

Part Number MIL-23-50-580 JWS-23-50-580-DFM JWS-23-50-580-LQD
Gas Inlet from Tank CGA-580
Gases Argon, Helium & Argon/CO2
Gas Outlet  5/8"18RH Female (2-Ports)
Flow Range 0-50 SCFH (Argon/CO2)
0-160 SCFH (Heilium)
Output Pressure 50 PSIG
Secondary Port Plug -- Included Included
Gas Hose to Machine -- 6' (1.8m)
Customizable Length
6' (1.8m)
Customizable Length
Secondary Purge Gas Line -- --

30' (9.1m) Customizable Hose
w/ Quick-Disconnect
12" (0.3m) Whip - Hose

Quick Disconnect -- -- High-Quality Gas QD
Extra Purge End Fittings -- -- 5/18" x 18 Gas Nipple & Nut
1/4" NPT Male / Hose Barb
Gas Flow Test Gauge -- -- Included
View AllClose

1 Review

  • 5

    We have multiple machines and Arc-zone is the…

    Posted by Stark Choppers on Jul 19th 2009

    We have multiple machines and Arc-zone is the only place we have found that can get us dual regulator kits to hook up right out of the package.
