Enclosed External Hitch Mount – 2" Receiver for THV618 Trailer Hitch Vise

Turn your THV618 Trailer Hitch Vise into a stationary workbench vise with this heavy-duty enclosed steel hitch mount.
The Enclosed External Hitch Mount allows you to use your existing THV618 Trailer Hitch Vise on a welding table, fabrication fixture, or workbench without needing a vehicle-mounted receiver.

Featuring a fully enclosed 2" (51mm) square steel receiver welded to a flat mounting plate, the THV618-XV provides a secure mounting location for compatible hitch-style workholding accessories.

Four included 1/4"-20 knurled thumb screws help eliminate unwanted movement between the hitch mount and inserted vise shank. A separate 5/8" hitch pin locks the vise in place, just as it would in a standard vehicle receiver.

The mounting plate features multiple hole patterns for installation on Strong Hand Tools BuildPro welding tables, compatible modular fixturing tables, and conventional workbenches.

Important: This listing is for the THV618-XV Enclosed External Hitch Mount only. The THV618 Trailer Hitch Vise is sold separately.

Key Features

• 2" Enclosed Hitch Receiver: Fully enclosed steel receiver designed for the Strong Hand Tools THV618 Trailer Hitch Vise.
• Convert Your Vise for Bench Use: Allows a compatible hitch-mounted vise to be installed on a welding table or workbench.
• Four-Sided Receiver Design: Enclosed steel construction supports the inserted vise shank without allowing it to contact the table surface beneath.
• Four Knurled Thumb Screws: Included 1/4"-20 screws help minimize movement and rattling during workholding applications.
• Hitch Pin Locking: Cross-drilled receiver accepts the compatible 5/8" hitch pin used with the THV618 vise.
• BuildPro Table Compatibility: Designed for compatible welding tables with 5/8" holes on 2" centers or 16mm holes on 50mm centers.
• Multiple Mounting Holes: Four larger mounting holes and six smaller holes provide installation options.
• Workbench Mounting: Can be secured to suitable wooden or steel workbenches using appropriate fasteners.
• Heavy-Duty Steel Construction: Welded steel assembly with a black oxide finish.
• Compact Mounting Plate: Low-profile 8" x 5.6" base plate provides a practical mounting footprint.
• Removable Vise Compatibility: Allows the same THV618 vise to be used between vehicle and workshop installations.

Convert Your Trailer Hitch Vise into a Bench Vise

The Strong Hand Tools THV618 Trailer Hitch Vise is designed to fit into a standard 2" vehicle hitch receiver for portable workholding.

The THV618-XV Enclosed External Hitch Mount brings that same functionality into the workshop.

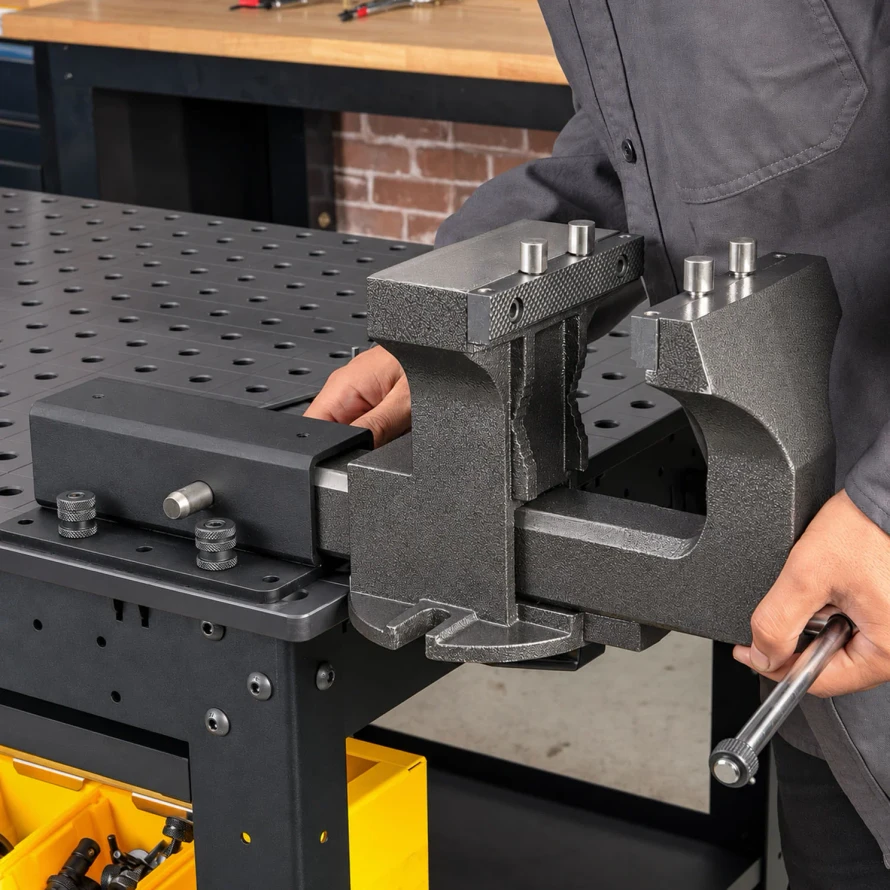

Install the mount on a compatible welding table or bench, then slide the THV618 vise into the enclosed receiver and secure it with the appropriate hitch pin.

When you need the vise for a mobile repair or field fabrication job, remove the vise from the mount and reinstall it in a compatible vehicle receiver.

This setup allows you to use one vise in multiple work locations without permanently dedicating it to a truck or workbench.

Fully Enclosed Four-Sided Receiver

The THV618-XV features a fully enclosed 2" (51mm) square receiver tube welded directly to its mounting plate.

Unlike open-bottom receiver mounts, the enclosed design supports the inserted vise shank on all four sides.

This prevents the shank from resting directly against the welding table or workbench surface beneath the mount.

The enclosed construction provides a dedicated steel receiver for securing compatible hitch-style accessories.

Four Knurled Thumb Screws for a Secure Fit

The mount includes four 1/4"-20 knurled thumb screws positioned around the receiver.

Two screws are located on top of the receiver, while the remaining two are positioned along the side.

After inserting the vise shank, tightening these screws helps take up clearance between the shank and receiver.

This reduces unwanted movement and rattling during suitable wrenching, clamping, and fabrication tasks.

Note: The thumb screws are used to stabilize the inserted accessory. The compatible hitch pin provides the primary mechanical retention and must be properly installed before use.

Compatible with BuildPro Welding Tables

The THV618-XV is designed for installation on compatible Strong Hand Tools BuildPro modular welding tables.

The mounting plate features four 0.69" (17.5mm) diameter through holes positioned on 4" (101.6mm) centers.

This hole pattern accommodates compatible fixturing tables with:

• 5/8" Holes on 2" Centers: Common Strong Hand Tools BuildPro fixturing pattern.
• 16mm Holes on 50mm Centers: Compatible metric fixturing table pattern.

The mount can be secured using appropriate table mounting bolts or compatible ball lock bolts.

Important: Welding table mounting hardware is sold separately.

Mount to Wooden or Steel Workbenches

In addition to modular welding tables, the THV618-XV can be installed on suitable conventional workbenches.

The mounting plate includes six smaller 0.35" (9mm) through holes that allow installation using appropriate lag screws or through-bolts.

This provides a practical mounting option for workshops that do not use perforated welding tables.

Always use mounting hardware appropriate for the workbench material and confirm the supporting structure is suitable for the intended workholding loads.

Designed for the THV618 Trailer Hitch Vise

The THV618-XV is specifically designed to work with the Strong Hand Tools THV618 Trailer Hitch Vise.

The THV618 vise features heavy-duty ductile iron construction, serrated pipe jaws, a built-in anvil, and a 2" receiver shank.

With the enclosed external mount, the vise can be used for many of the same workholding tasks normally performed with a fixed bench vise.

Common tasks include:

• Holding metal components during fabrication
• Securing parts for grinding or cutting preparation
• Pipe and tubing workholding
• Metalworking and assembly
• Equipment maintenance and repair
• General workshop clamping applications

Please Note: The THV618 Trailer Hitch Vise is not included with this mount and must be purchased separately.

Quick Vise Installation and Removal

The THV618-XV allows the compatible vise to be installed and removed without permanently fastening the vise itself to the table.

Basic Installation:

1. Secure the Mount: Bolt the THV618-XV to a compatible welding table, fixture, or workbench.
2. Insert the Vise: Slide the THV618 vise shank into the enclosed 2" receiver.
3. Align the Pin Holes: Position the vise until the hitch pin holes line up.
4. Install the Hitch Pin: Insert the compatible 5/8" hitch pin and secure it with the retaining clip.
5. Tighten the Thumb Screws: Adjust the four knurled screws to minimize unwanted movement between the receiver and vise shank.
6. Check the Installation: Confirm all mounting hardware and the hitch pin are secure before using the vise.

To remove the vise, loosen the thumb screws, remove the retaining clip and hitch pin, and slide the vise out of the receiver.

What's Included?

• 1 THV618-XV Enclosed External Hitch Mount: Welded steel mounting plate with integrated 2" enclosed receiver.
• 4 Knurled Thumb Screws: 1/4"-20 screws for securing the fit between the receiver and inserted vise shank.

Not Included: THV618 Trailer Hitch Vise, 5/8" hitch pin, R-clip, workbench mounting bolts, lag screws, or ball lock bolts.

Hitch Pin Note: The appropriate hitch pin and R-clip are supplied with the separately sold THV618 Trailer Hitch Vise.

Common Applications

• THV618 Trailer Hitch Vise workstation mounting
• BuildPro welding table accessories
• Portable-to-stationary vise conversion
• Welding and fabrication workshops
• Metalworking and assembly
• Industrial maintenance and repair
• Pipe and tubing workholding
• General fabrication workstations
• Workbench-mounted workholding
• Modular welding table setups
• Equipment repair and maintenance

Frequently Asked Questions

What is the Strong Hand Tools THV618-XV?
The THV618-XV is an enclosed external hitch mount designed to hold a compatible THV618 Trailer Hitch Vise on a welding table, fixture, or workbench.

Does the THV618-XV include the trailer hitch vise?
No. This listing is for the external hitch mount only. The THV618 Trailer Hitch Vise is sold separately.

What size receiver does the mount use?
The THV618-XV features a 2" (51mm) square receiver.

What does enclosed mean?
The receiver tube is closed on all four sides, including the bottom. This keeps the inserted vise shank supported inside the receiver rather than resting directly on the table surface.

What is the advantage of an enclosed receiver?
The enclosed design provides a dedicated steel support surface around the vise shank and prevents contact between the shank and the table beneath the mount.

What are the four thumb screws used for?
The included 1/4"-20 knurled screws help reduce clearance and unwanted movement between the inserted vise shank and receiver.

Does the THV618-XV include a hitch pin?
No. The compatible hitch pin and R-clip are included with the separately sold THV618 Trailer Hitch Vise.

Can the THV618-XV mount to a BuildPro welding table?
Yes. The mounting plate is designed for compatible tables with 5/8" holes on 2" centers or 16mm holes on 50mm centers.

Can I install this mount on a wooden workbench?
Yes. The mounting plate includes smaller holes for suitable lag screws or through-bolts. Ensure the workbench is capable of supporting the vise and intended workholding loads.

Are table mounting bolts included?
No. Table bolts, bench screws, and ball lock bolts are not included.

What is the mounting plate size?
The plate measures 8" x 5.6" (203 x 143mm).

How tall is the mount?
The overall height is 3.7" (95mm), including the installed thumb screws.

What material is the mount made from?
The THV618-XV is constructed from steel with a black oxide finish.

Can the same THV618 vise be used in my truck and on my workbench?
Yes. The THV618 vise can be removed from a compatible vehicle receiver and installed into the THV618-XV external mount on a suitable workbench.

Can I use other 2" hitch-style accessories?
The mount is designed around a standard 2" square receiver configuration. Verify fitment, retention, and load requirements before using accessories other than the specified THV618 Trailer Hitch Vise.

What is the Arc-Zone SKU?
The Arc-Zone part number is SHT-THV618-XV.
