Heavy-Duty Electric Hydraulic Scissor Lifts – 110V (Select Model Above)

Heavy-duty electric hydraulic scissor lift platforms for positioning, raising, and supporting large industrial workpieces.
Heavy-Duty Electric Hydraulic Scissor Lifts are designed for welding, fabrication, assembly, maintenance, and industrial material positioning. Their rugged scissor mechanisms provide wide lifting platforms, while the electric hydraulic systems deliver controlled vertical movement without the need for manual pumping.

Available in four models—HSLT200, HSLT300, HSLT600, and HSLT800—these platforms offer different deck sizes, height adjustment ranges, and lifting capacities to accommodate a variety of fabrication and manufacturing requirements.

Each model operates on 110 VAC electrical power and is designed to help operators position heavy workpieces at suitable working heights. The lifting decks also provide mounting provisions for compatible welding tabletops and fixture assemblies.

Important: This listing is for the electric hydraulic scissor lift only. Welding tabletops, adapter plates, fixturing clamps, and other accessories are sold separately.

Select your required lift model from the options above.

Key Features

• Heavy-Duty Electric Hydraulic Lifting: Powered vertical adjustment for large workpieces, equipment, and compatible fabrication fixtures.
• Four Available Models: Choose from HSLT200, HSLT300, HSLT600, and HSLT800.
• 110V Power Supply: Designed for compatible 110 VAC shop electrical service.
• Rugged Scissor Mechanism: Heavy-duty lifting structure provides a broad support platform for industrial applications.
• Adjustable Deck Height: Raise or lower the platform to accommodate different workpiece heights and operating requirements.
• Wired Electric Controls: Allows the operator to control platform movement using the electric hydraulic system.
• High Load Capacities: Model-specific ratings support demanding industrial material positioning applications.
• Defined Static and Dynamic Ratings: HSLT200, HSLT300, and HSLT800 have separately published stationary and powered-lifting capacities.
• Tabletop Mounting Provisions: Lifting decks include mounting locations for compatible tabletop installations.
• Heavy-Duty Support: Designed for use with appropriate leveling and stabilization equipment.
• Industrial Fabrication Applications: Suitable for compatible welding, assembly, maintenance, and production workstations.
• Lift-Only Configurations: Choose the appropriate lifting platform and add a compatible tabletop separately when needed.

Choose Your Electric Hydraulic Scissor Lift

SHT-HSLT200 – Compact Heavy-Duty Lift

The HSLT200 features a 46" x 46" lifting deck and adjusts from approximately 21" to 44" in height.

With a 5,060 lb static capacity and 4,400 lb dynamic capacity, this model provides a compact lifting solution for heavy workpieces, fabrication fixtures, and industrial assembly applications.

The manufacturer lists approximately 30 seconds to raise the platform and 30 seconds to lower it through its full travel.

SHT-HSLT300 – Mid-Size Heavy-Duty Lift

The HSLT300 features a larger 69" x 46" lifting deck and an adjustable height range of 23" to 62".

It provides a 7,700 lb static capacity and 6,600 lb dynamic capacity, making it suitable for larger industrial workpieces and fabrication assemblies.

The manufacturer lists an upward travel time of approximately 54 seconds and a lowering time of approximately 1 minute 28 seconds through its full lifting range.

SHT-HSLT600 – Large Heavy-Duty Lift

The HSLT600 features a 92" x 45" lifting deck and adjusts from 21.6" to 65".

Strong Hand Tools publishes an 8,800 lb load capacity for this model. The available product specifications do not separately identify the static and dynamic ratings, so the appropriate powered-lifting capacity should be confirmed before lifting heavy loads.

The HSLT600 provides approximately 43.3" of lifting travel, with a manufacturer-listed upward travel time of 1 minute 10 seconds and a lowering time of 1 minute 26 seconds.

SHT-HSLT800 – Extra-Large Heavy-Duty Lift

The HSLT800 is the largest configuration offered in this listing, featuring a substantial 118" x 59" lifting deck.

With a height adjustment range of 14" to 65", the HSLT800 provides a broad lifting surface and extended vertical travel for large fabrication assemblies and industrial workpieces.

The manufacturer rates this model for 16,500 lbs. static and 14,500 lbs. dynamic.

The HSLT800 provides approximately 51" of lifting travel, with a manufacturer-listed upward travel time of 3 minutes 42 seconds and a lowering time of 3 minutes 7 seconds.

Model Selection Note: Deck size, height range, weight capacity, and lifting speed vary by model. Review the specifications for your selected lift before ordering.

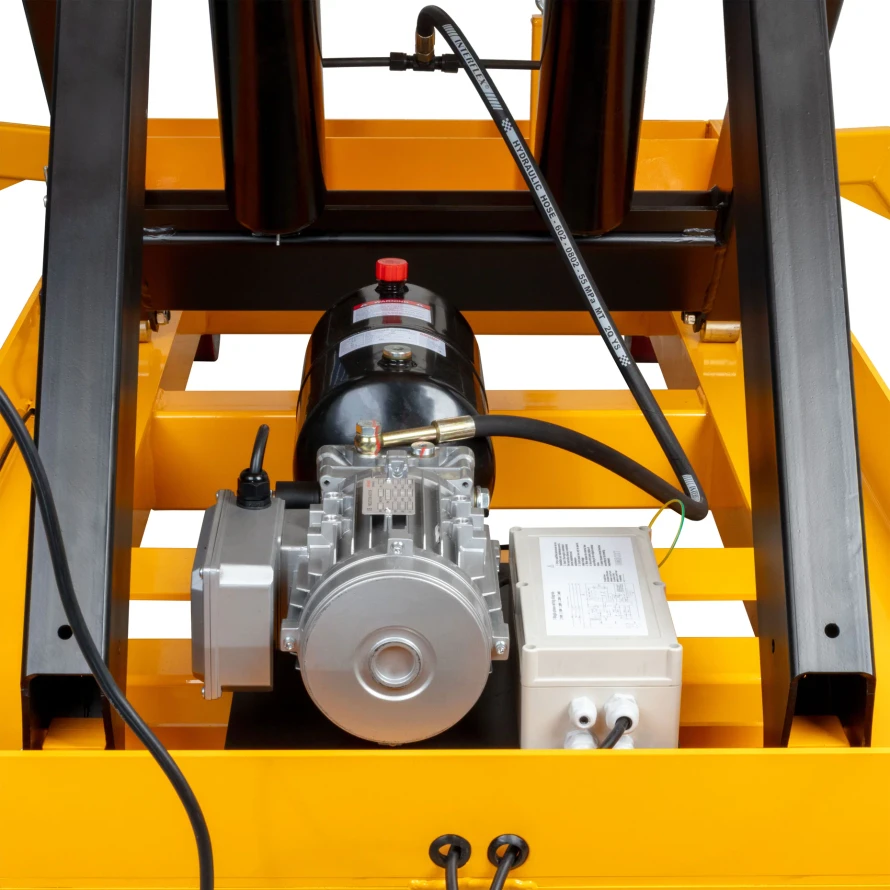

Electric Hydraulic Height Adjustment

These Strong Hand Tools scissor lifts use electric hydraulic power to raise and lower the lifting deck.

The operator can adjust platform elevation to help position workpieces for welding, fitting, inspection, assembly, and other industrial operations.

This eliminates the need to repeatedly lift large assemblies by hand when changing working height.

Powered height adjustment can also help reduce unnecessary material handling and improve workflow when workpieces must be positioned at several heights during a project.

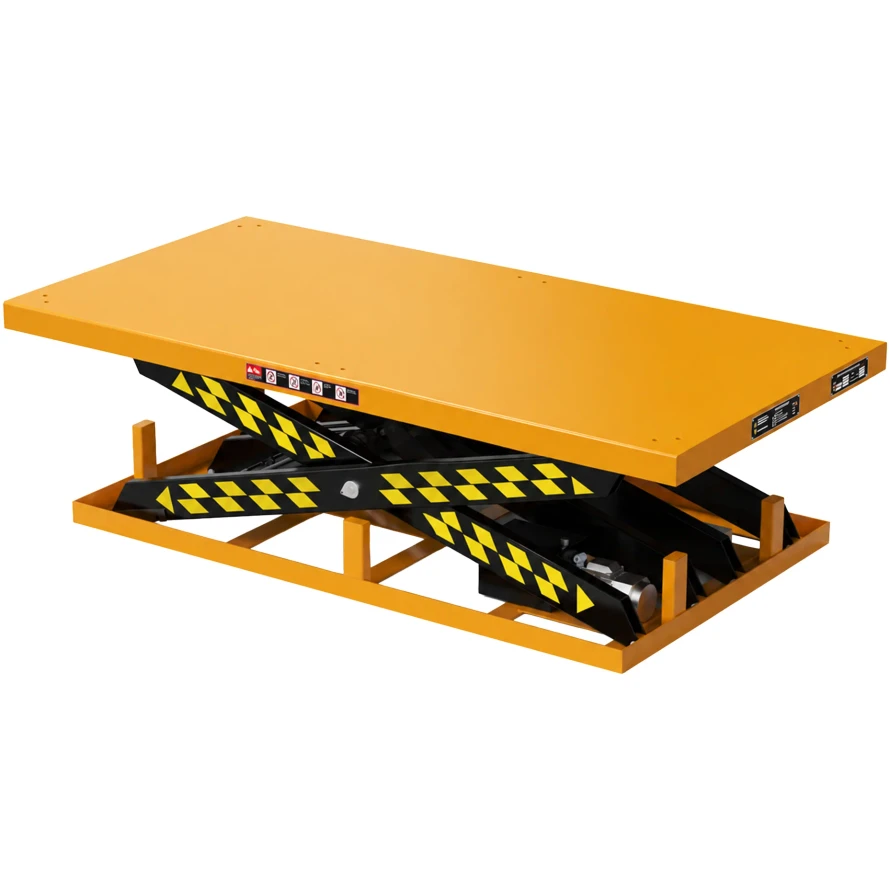

Heavy-Duty Scissor Lift Construction

The rugged scissor mechanism creates a broad lifting platform designed to support heavy workpieces during elevation.

As the electric hydraulic system operates, the scissor structure raises or lowers the deck while supporting the load.

This design provides a practical solution for industrial material positioning and fabrication workstations requiring vertical adjustment.

Important: Loads must remain properly centered and supported. Never exceed the manufacturer's applicable load ratings or use the equipment outside its intended operating conditions.

Understanding Static and Dynamic Load Capacity

Heavy-duty hydraulic lifting equipment may have different capacities for stationary support and powered lifting.

Static Load Capacity
The maximum load the platform is rated to support while stationary and properly positioned.

Dynamic Load Capacity
The maximum load the platform is rated to raise or lower using the powered hydraulic lifting mechanism.

These ratings are not interchangeable.

For example, the HSLT200 supports up to 5,060 lbs. while stationary, but its powered lifting capacity is limited to 4,400 lbs.

The HSLT800 supports up to 16,500 lbs. while stationary, while its powered lifting capacity is 14,500 lbs.

Important: Always plan lifting operations using the rated dynamic capacity for the selected model. For HSLT600, confirm the applicable dynamic capacity with Strong Hand Tools before planning a powered lift.

110V Electric Power

The HSLT series operates on 110 VAC electrical power, allowing the electric hydraulic system to raise and lower the lifting deck.

Strong Hand Tools specifies standard 110 VAC shop power within the manufacturer's permitted voltage tolerance.

Before operating the lift, verify the electrical supply, inspect the power cord, and follow the manufacturer's operating instructions.

Lift Speed and Travel

Each model has a different lifting range and travel speed.

The compact HSLT200 provides relatively short lift travel, while the larger HSLT800 provides substantially more vertical adjustment for larger industrial applications.

Manufacturer-listed full-stroke lifting and lowering times vary depending on the model.

Actual operating performance may also depend on load, operating conditions, and proper equipment maintenance.

Wired Lift Controls

The electric hydraulic system uses wired controls to operate the lifting and lowering functions.

The HSLT600 manufacturer documentation describes a remote control with a long cable and safety locking switch.

Before operating any model, inspect the controls and power connections, make sure the work area is clear, and confirm that the supported load is positioned correctly.

Follow the specific model's operating manual for control operation and emergency procedures.

Mount Compatible Welding Tabletops

The lifting decks are designed with mounting provisions for compatible welding tabletops and fabrication fixtures.

For customers building a height-adjustable welding workstation, the lift can serve as the powered base for an approved tabletop assembly.

Strong Hand Tools offers compatible BuildPro and Alpha fixturing tabletop systems, subject to the mounting requirements of the selected lift.

When selecting a welding tabletop, consider:

• The lifting deck dimensions
• The manufacturer's tabletop mounting hole pattern
• The required mounting or adapter plates
• The weight of the tabletop and fixturing accessories
• The total workpiece weight
• The applicable dynamic lifting capacity

Important: Welding tabletops, adapter plates, and mounting accessories are not included with these lift-only configurations. Verify the approved tabletop and mounting arrangement before installation.

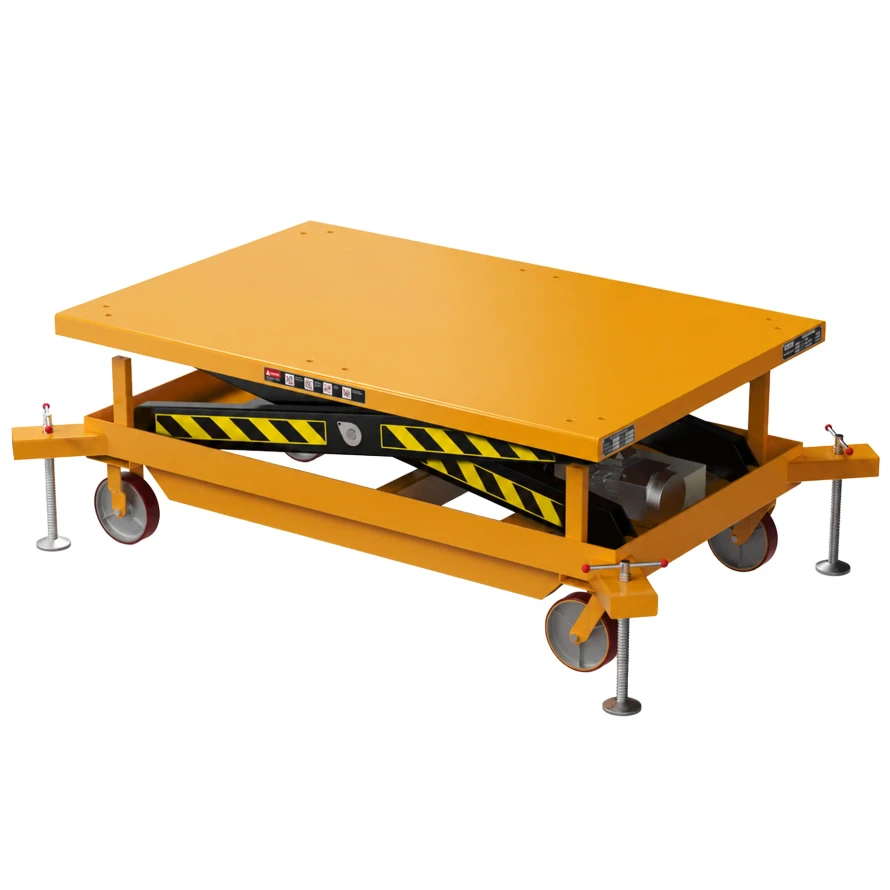

Mobile Positioning and Leveling Support

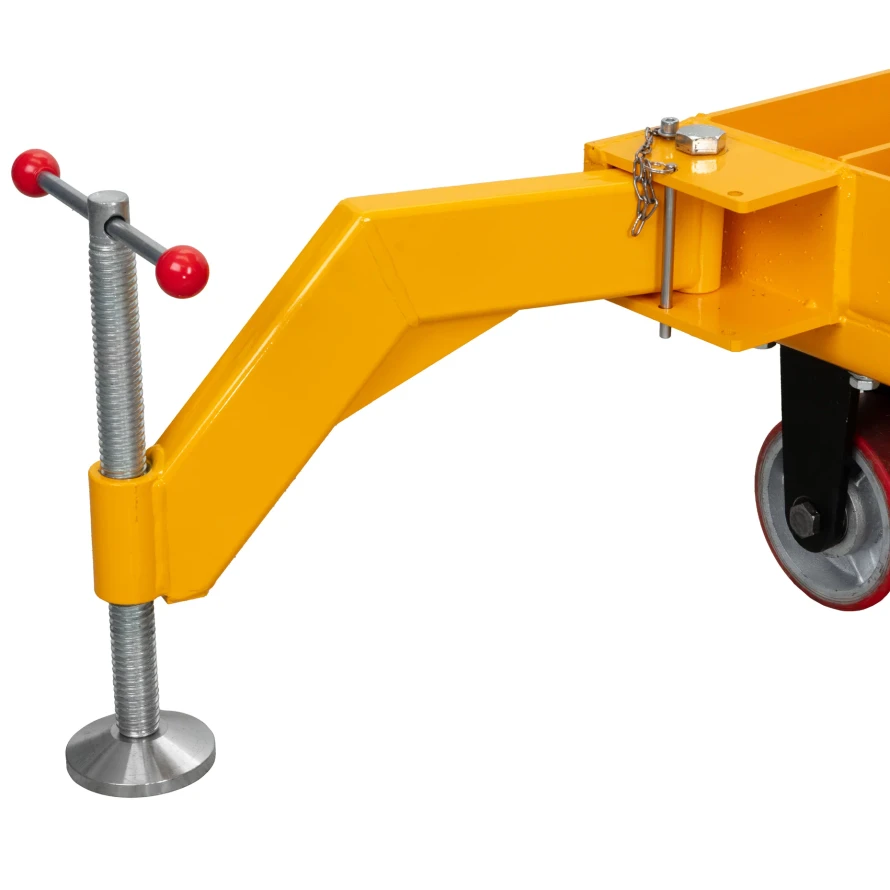

The HSLT600 manufacturer specifications describe heavy-duty locking casters and adjustable leveling feet for mobile or stationary use.

Always position the selected lift on a suitable, level surface and use the required support and leveling arrangements before operating the platform.

When moving or positioning heavy equipment, follow the manufacturer's instructions and use appropriate material handling procedures.

Safety Note: These lifts are designed for raising and positioning material. Do not use them to transport raised workpieces or lift personnel.

What's Included?

Each selected option includes:

• 1 Strong Hand Tools Heavy-Duty Electric Hydraulic Scissor Lift in the selected model.
• Integrated hydraulic lifting mechanism and scissor structure.
• Electric hydraulic power system.
• Manufacturer-supplied lift controls.
• Steel lifting deck with mounting provisions.
• Model-specific integrated supporting components.

Not Included: Welding tabletop, tabletop adapter plates, clamps, fixturing accessories, welding machines, or workpieces.

Important: This listing is for the lift-only configuration. Complete welding table packages shown in manufacturer application images are not included.

Common Applications

• Heavy-duty welding and fabrication
• Large steel assembly positioning
• Height-adjustable fabrication workstations
• Industrial equipment assembly
• Manufacturing and production workstations
• Structural component fabrication
• Workpiece height adjustment
• Heavy fixture positioning
• Industrial maintenance and repair
• Large fabrication assemblies
• Compatible modular welding table installations
• General industrial material handling

Safe Operation

• Never exceed the selected model's rated static or dynamic load capacity.
• Keep loads centered and properly supported on the lifting deck.
• Verify that the workpiece and any mounted tabletop remain within the applicable load limits.
• Operate the lift on a suitable, stable, level surface.
• Follow the manufacturer's instructions for leveling and securing the equipment.
• Keep hands, feet, and other body parts away from moving scissor components.
• Never allow personnel to stand or ride on the lifting platform.
• Never work beneath an elevated platform without approved mechanical support.
• Inspect the controls, electrical connections, and hydraulic components before use.
• Follow the manufacturer's duty-cycle and cooling requirements.

Frequently Asked Questions

What are Strong Hand Tools Heavy-Duty Electric Hydraulic Scissor Lifts?
They are electric-powered hydraulic lifting platforms designed for raising and positioning industrial workpieces, fixtures, and compatible welding tabletops.

What models does Arc-Zone offer?
Arc-Zone offers HSLT200, HSLT300, HSLT600, and HSLT800 in this listing.

What is the difference between the models?
The models differ in deck size, height range, lift travel, weight capacity, lifting speed, and overall equipment weight.

What is the HSLT200 load capacity?
The HSLT200 is rated for 5,060 lbs. static and 4,400 lbs. dynamic.

What is the HSLT300 load capacity?
The HSLT300 is rated for 7,700 lbs. static and 6,600 lbs. dynamic.

What is the HSLT600 load capacity?
Strong Hand Tools publishes an 8,800 lb load capacity for the HSLT600. The available product information does not clearly distinguish static from dynamic capacity. Confirm the permitted powered lifting load before use.

What is the HSLT800 load capacity?
The HSLT800 is rated for 16,500 lbs. static and 14,500 lbs. dynamic.

What is the height range of the HSLT200?
The HSLT200 adjusts from approximately 21" to 44".

What is the height range of the HSLT300?
The HSLT300 adjusts from approximately 23" to 62".

What is the height range of the HSLT600?
The HSLT600 adjusts from approximately 21.6" to 65".

What is the height range of the HSLT800?
The HSLT800 adjusts from approximately 14" to 65".

Do the lifts require manual pumping?
No. These models use electric hydraulic power for height adjustment.

What electrical power is required?
The lift family uses 110 VAC electrical power. Follow the electrical requirements for the selected model.

Can I install a welding tabletop?
Yes. Compatible welding tabletops may be installed using the appropriate mounting arrangement and approved adapter hardware.

Is a welding tabletop included?
No. These are lift-only configurations. Welding tabletops are sold separately.

What is the difference between static and dynamic capacity?
Static capacity refers to supporting a stationary load. Dynamic capacity refers to the load that can be raised or lowered using the powered lift.

Can the lifts be used for industrial fabrication?
Yes. They are designed for compatible welding, fabrication, assembly, maintenance, and industrial workpiece positioning applications.

Can I use these lifts to raise personnel?
No. These lifting platforms are designed for materials and equipment only. They must not be used to lift people.

What are the Arc-Zone SKUs?
The four available SKUs are SHT-HSLT200, SHT-HSLT300, SHT-HSLT600, and SHT-HSLT800.
