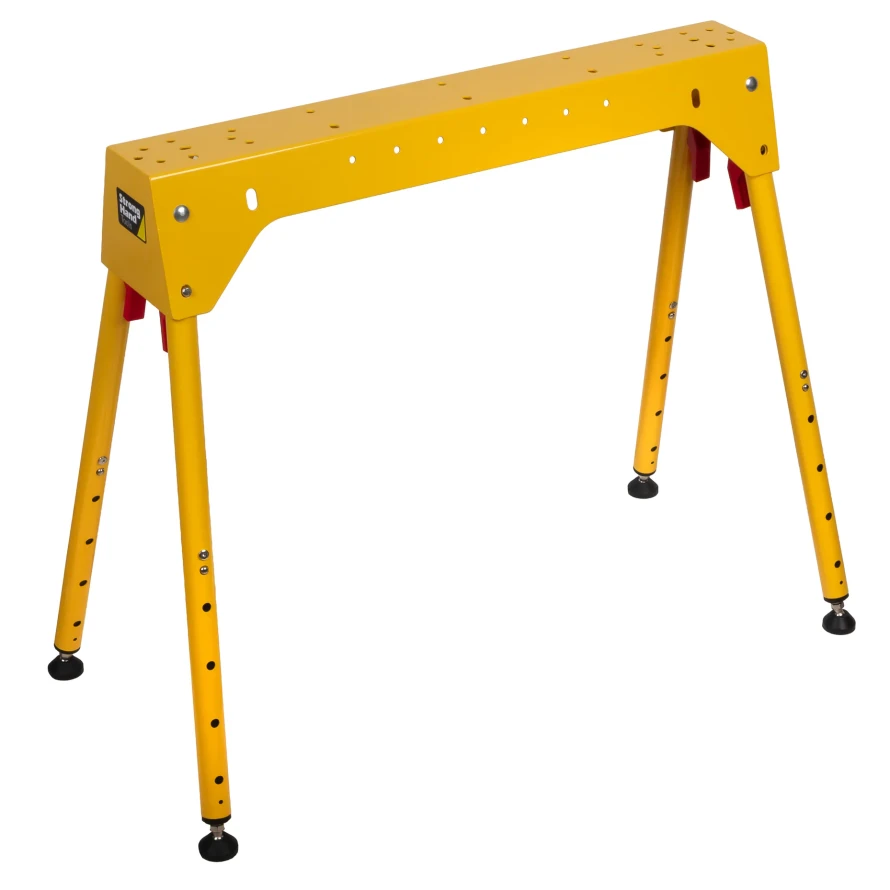

Integrated Adjustable Sawhorse Leg – 1,600 lb. Capacity

Heavy-duty, height-adjustable sawhorse base with four integrated folding legs and a 1,600 lb. load capacity.
The Integrated Adjustable Sawhorse Leg is designed to provide a stable, adjustable foundation for welding, fabrication, assembly, and material handling applications.

Unlike traditional sawhorse leg kits that require a separate support beam, the TFSH50 features a one-piece integrated body with four built-in adjustable legs. Simply unfold the legs, set your working height, and position the leveling feet.

With an adjustable height range of 26" to 35" (660–889mm) and a maximum load capacity of 1,600 lbs. (726kg) per sawhorse, the TFSH50 provides heavy-duty workpiece support while remaining compact enough to fold away when not in use.

The TFSH50 is part of the Strong Hand Tools Scout Series and can be combined with compatible Scout tabletop plates, clamps, and fixturing accessories to create a customized fabrication workstation.

Important: This listing includes one complete integrated sawhorse base with four adjustable legs and leveling feet. Worktops, clamps, and fixturing accessories are sold separately.

Key Features

• 1,600 lb. Load Capacity: Heavy-duty support for welding, fabrication, assembly, and industrial workpieces.
• One-Piece Integrated Design: Four adjustable legs are built directly into the 29" sawhorse body.
• Adjustable Working Height: Individually adjustable legs provide a working height range of 26" to 35".
• 9" Height Adjustment Range: Allows the sawhorse to accommodate different working positions and project requirements.
• Four Folding Legs: Legs fold into the body for convenient storage and transportation.
• Adjustable Leveling Feet: Four integrated foot pads help accommodate slightly uneven workshop floors.
• Pre-Drilled Top: Mounting hole clusters at both ends and along the centerline accommodate compatible tabletop configurations.
• Rhino Cart Accessory Compatibility: 1/4" side holes follow the Rhino Cart accessory mounting pattern.
• Scout Series Compatibility: Designed to support compatible Scout Series worktops and accessories.
• Compact Storage: Folding legs allow the sawhorse to be stored without disassembling the base.
• No Base Assembly Required: The body and legs are already integrated.
• Lightweight for Its Capacity: Weighs approximately 20 lbs. (9.1kg) while supporting up to 1,600 lbs.

One-Piece Integrated Sawhorse Design

The TFSH50 eliminates the need to assemble a separate pair of legs onto a support beam.

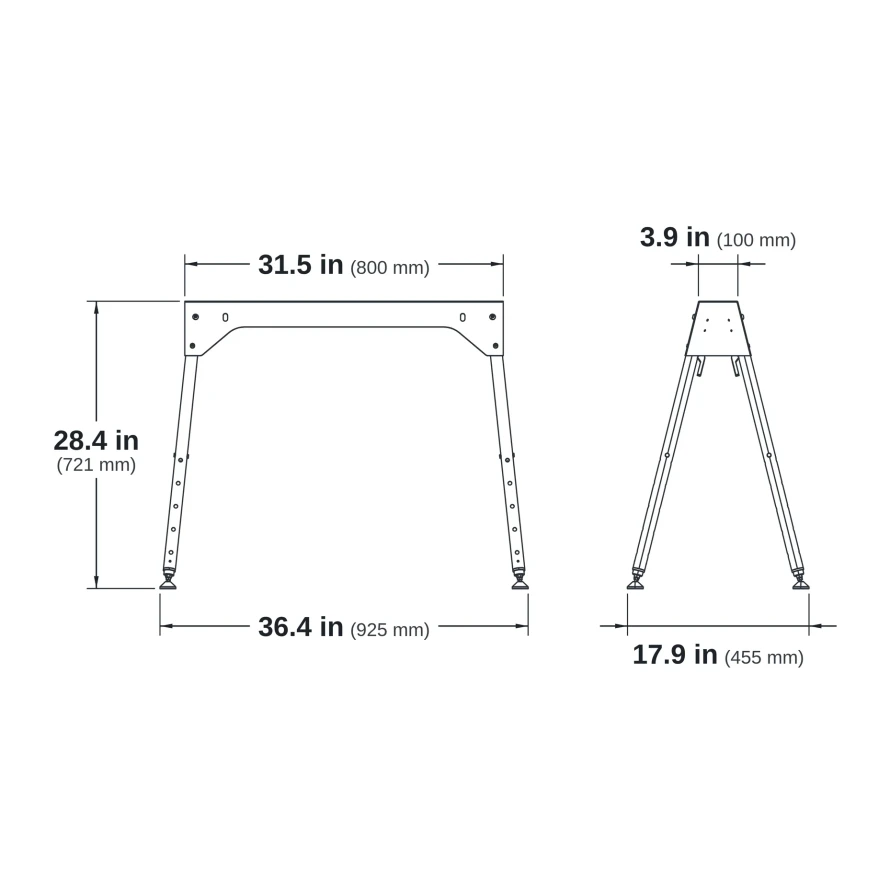

Its 29" (737mm) integrated body incorporates four heavy-duty adjustable legs, creating a complete sawhorse base that can be configured for different fabrication and assembly tasks.

The integrated design simplifies setup while providing a substantial load capacity for demanding workshop applications.

Unlike the Strong Hand Tools TFSH48 adjustable leg kit, which requires a separate beam, the TFSH50 is supplied as a complete integrated base.

Adjustable Height from 26" to 35"

Each of the four legs can be adjusted individually, allowing the working height to be set between 26" (660mm) and 35" (889mm).

This flexibility is useful when positioning workpieces at different heights or setting up a fabrication workstation to suit a particular project.

The individually adjustable legs, combined with the leveling foot pads, also help accommodate minor variations in suitable workshop floor surfaces.

Note: The stated height range refers to the sawhorse base. Adding a tabletop or other mounted component may increase the final working surface height.

Heavy-Duty 1,600 lb. Load Capacity

Despite weighing approximately 20 lbs. (9.1kg), the TFSH50 is rated to support up to 1,600 lbs. (726kg) per sawhorse.

This capacity makes the integrated sawhorse a practical choice for supporting heavy fabrication materials, assemblies, and workshop equipment when properly configured.

For applications requiring multiple support points, additional TFSH50 bases can be used with compatible worktops to create larger fabrication arrangements.

Important: The rated capacity applies to the sawhorse. The safe working capacity of a completed workstation also depends on the installed top, mounting hardware, workpiece placement, and overall configuration.

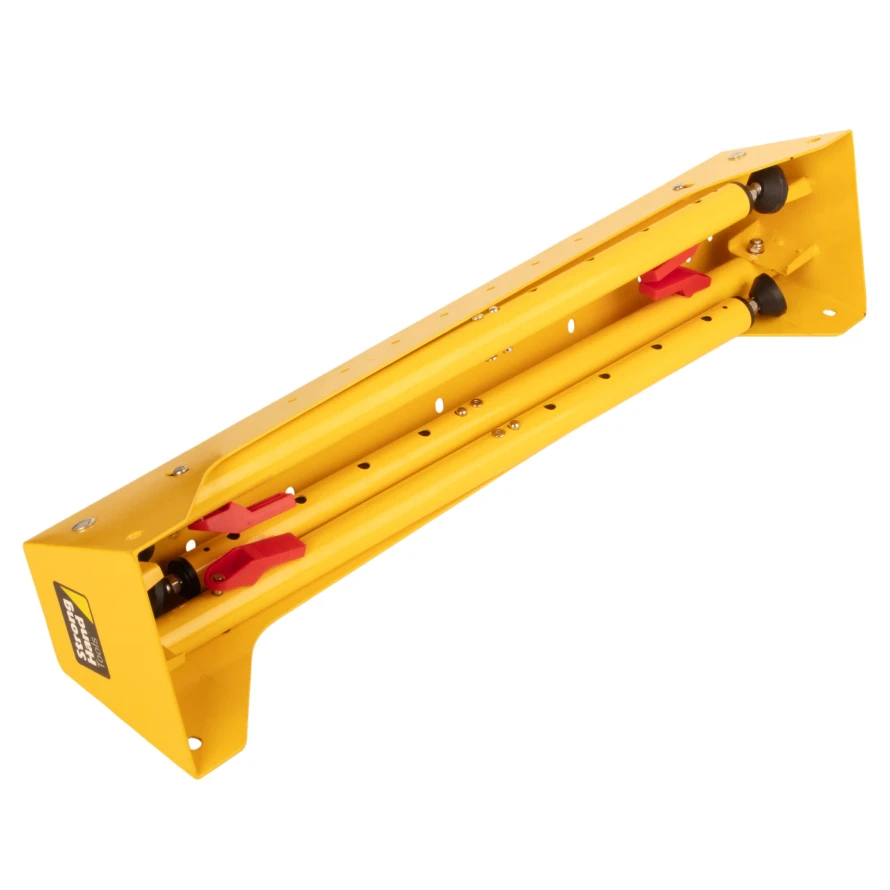

Four Folding Legs for Compact Storage

The TFSH50 includes four heavy-duty legs that fold into the integrated body when the sawhorse is not in use.

This folding design helps reduce the space needed for storage and makes the unit easier to move between workshop areas or job sites.

Basic Setup:

1. Unfold the Legs: Swing all four legs out from the integrated body.
2. Adjust the Height: Set each leg to the required working height.
3. Position the Feet: Ensure all four leveling foot pads contact a suitable, stable surface.
4. Install the Worktop: Attach a compatible tabletop or support component when required.

When finished, remove any supported loads and fold the legs back into the body for storage.

Pre-Drilled Mounting Surface

The integrated body features a 3.9" (100mm) wide top face with pre-drilled mounting hole clusters at both ends and along the centerline.

These mounting locations allow the sawhorse to be combined with compatible tabletop assemblies and workholding configurations.

The TFSH50 is designed to accept the Strong Hand Tools TSB366 Scout 36 Top Plate and Beam, allowing users to build a modular welding or fabrication workstation.

Rhino Cart Accessory Mounting Holes

A row of 1/4" (6mm) through holes runs along each side of the sawhorse body.

These holes follow the Strong Hand Tools Rhino Cart accessory mounting pattern, allowing compatible accessories to be mounted to the sides of the base.

This provides additional flexibility for organizing tools and configuring the workstation around specific fabrication tasks.

Compatible with the Strong Hand Tools Scout Series

The TFSH50 is part of the Strong Hand Tools Scout Series, a modular system designed for adjustable workpiece support and welding fixturing.

Compatible accessories and configurations include:

• TSB366 Scout 36 Top Plate and Beam: 36" x 6" fixturing tabletop with 5/8" holes on a 2" grid.
• TSJ280 Sawhorse Joining Kit: For compatible joined workstation configurations.
• TSB-A 12-Piece Clamping Kit: Compatible clamping and positioning accessories for the Scout tabletop system.
• SBV604 Side Vise: Compatible sawhorse-mounted workholding accessory.
• TD53020-12 Tool Tray: Compatible accessory for additional tool organization.

Please Note: All tabletop plates, joining kits, clamps, vises, and additional accessories are sold separately.

Build a Wider Fabrication Workstation

One of the advantages of the TFSH50 is its modular configuration capability.

According to Strong Hand Tools, two TFSH50 integrated sawhorse bases can support three TSB366 Scout 36 tabletop assemblies arranged side by side.

This configuration creates a wider fixturing work surface using only two sawhorse bases.

The Scout Series also supports other compatible arrangements, including end-to-end, side-by-side, T-shaped, and L-shaped workstation layouts.

Users can select the number of bases, tabletop sections, and fixturing accessories needed for their specific workspace.

What's Included?

• 1 Integrated Adjustable Sawhorse Base: One-piece 29" body with four built-in folding legs.
• 4 Adjustable Legs: Each leg adjusts to the required working height.
• 4 Leveling Foot Pads: Installed on the ends of the adjustable legs.

Not Included: Worktop, TSB366 tabletop assembly, clamps, joining kits, vises, and other Scout Series accessories.

Common Applications

• Welding and fabrication shops
• Heavy-duty workpiece support
• Adjustable-height welding workstations
• Structural steel fabrication
• Metalworking and assembly
• Tube and pipe fabrication
• Custom workbench construction
• Industrial maintenance and repair
• Modular fixturing workstations
• Job site fabrication
• Temporary work support
• Compact workshop setups

Frequently Asked Questions

What is the Strong Hand Tools TFSH50?
The TFSH50 is a heavy-duty integrated adjustable sawhorse base featuring a one-piece body and four folding, height-adjustable legs.

What is the weight capacity?
The TFSH50 supports up to 1,600 lbs. (726kg) per sawhorse when properly configured and used within its rated capacity.

How high does the TFSH50 adjust?
The legs adjust between 26" (660mm) and 35" (889mm).

Can each leg be adjusted separately?
Yes. All four legs are individually adjustable, allowing the sawhorse to be set to the required working height.

Does the TFSH50 include a tabletop?
No. The TFSH50 includes the complete sawhorse base only. Worktops and fixturing accessories are sold separately.

Does the TFSH50 require assembly?
No base assembly is required. The legs are integrated into the body. Simply unfold the legs, set the height, and position the leveling feet.

Can the legs fold for storage?
Yes. All four legs fold into the integrated body when the sawhorse is not in use.

What is the difference between the TFSH50 and TFSH48?
The TFSH50 is a complete one-piece sawhorse base with four integrated legs. The TFSH48 is an adjustable leg kit that requires a separate support beam.

Can I install a Strong Hand Tools Scout tabletop?
Yes. The TFSH50 is compatible with the TSB366 Scout 36 Top Plate and Beam, which is sold separately.

Can multiple TFSH50 bases be used together?
Yes. Multiple bases can support compatible Scout Series tabletop arrangements, including wider and joined workstation layouts.

Can I mount Rhino Cart accessories to the sawhorse?
The sawhorse body includes 1/4" (6mm) side holes matching the Rhino Cart accessory mounting pattern. Confirm individual accessory compatibility before installation.

Does it have adjustable leveling feet?
Yes. Each of the four legs includes a leveling foot pad to help accommodate slightly uneven floor surfaces.

How much does the sawhorse weigh?
The TFSH50 weighs approximately 20 lbs. (9.1kg).

Is this suitable for welding and fabrication?
Yes. The TFSH50 is designed for welding, fabrication, assembly, and industrial workpiece support applications when properly configured.

What is included with my purchase?
One complete TFSH50 integrated sawhorse base with four adjustable folding legs and four fitted leveling foot pads. Worktops and accessories are sold separately.

What is the Arc-Zone SKU?
The Arc-Zone part number is SHT-TFSH50.
