Magnetic Pipe Centering Head (Digital Precision Model)

Find pipe center points and measure angles with one precision layout tool.
SHT-MPDC300 Magnetic Pipe Centering Head combines a magnetic pipe centering tool with a digital angle display for faster, more repeatable pipe layout. Designed for pipe diameters from 2" to 12", it helps locate center points while providing real-time angle measurements with ±0.2° accuracy.

The precision marking pin can be used to identify center points on pipe surfaces, while integrated magnets help hold the tool securely against compatible steel pipe during layout and measurement. Digital functions including Absolute and Relative measurement modes, Data Hold, one-touch zeroing, and angle-to-slope conversion help simplify fabrication and fit-up work.

Why Choose the SHT-MPDC300?

• Digital Angle Display: Provides real-time angle measurements with ±0.2° accuracy.
• Pipe Center Finding: Precision marking pin helps quickly locate pipe center points for layout and fit-up.
• 2" to 12" Pipe Range: Designed for a broad range of common pipe diameters.
• Magnetic Hold: Integrated magnets provide up to 5.5 lb of holding force on compatible steel surfaces.
• Absolute & Relative Modes: Switch between measurement modes to establish different reference points.
• Angle-to-Slope Conversion: Helps simplify pipe layout and slope calculations.
• Data Hold: Freezes the measurement on the display for easier viewing and marking.
• One-Touch Zeroing: Quickly establishes a new zero reference for the job.
• Automatic Power-Off: Powers down after 3 minutes to help conserve battery life.
• Anodized Aluminum Construction: Precision-machined body designed for demanding shop and field use.
• Hard Carrying Case Included: Protects and organizes the tool during storage and transportation.

Digital Pipe Layout Made Easier

Traditional pipe centering tools require the operator to read a manual protractor or bubble vial. The SHT-MPDC300 adds an integrated digital display so the pipe angle can be viewed directly while the tool is positioned on the workpiece.

With an accuracy of ±0.2°, the digital display helps reduce manual reading errors and makes it easier to repeat the same measurement during fabrication, fitting, and alignment work.

Find Pipe Center Points

The SHT-MPDC300 is designed to help locate and mark center points on pipe surfaces. Its precision marking pin provides a clear center reference for layout work before cutting, fitting, drilling, or welding.

The tool is especially useful for locating TDC (Top Dead Center) and BDC (Bottom Dead Center) when setting up pipe fabrication and alignment work.

Flexible Digital Measurement Functions

The SHT-MPDC300 provides several digital functions that help make pipe layout faster and easier:

• Absolute Mode: Displays the angle relative to the tool's established reference.
• Relative Mode: Allows you to establish a custom reference point for comparative measurements.
• Data Hold: Locks the current measurement on the display so it can be read after repositioning.
• One-Touch Zero: Quickly creates a new zero reference for the current setup.
• Angle-to-Slope Conversion: Converts angle measurements for easier slope-related layout work.

Magnetic Hands-Free Positioning

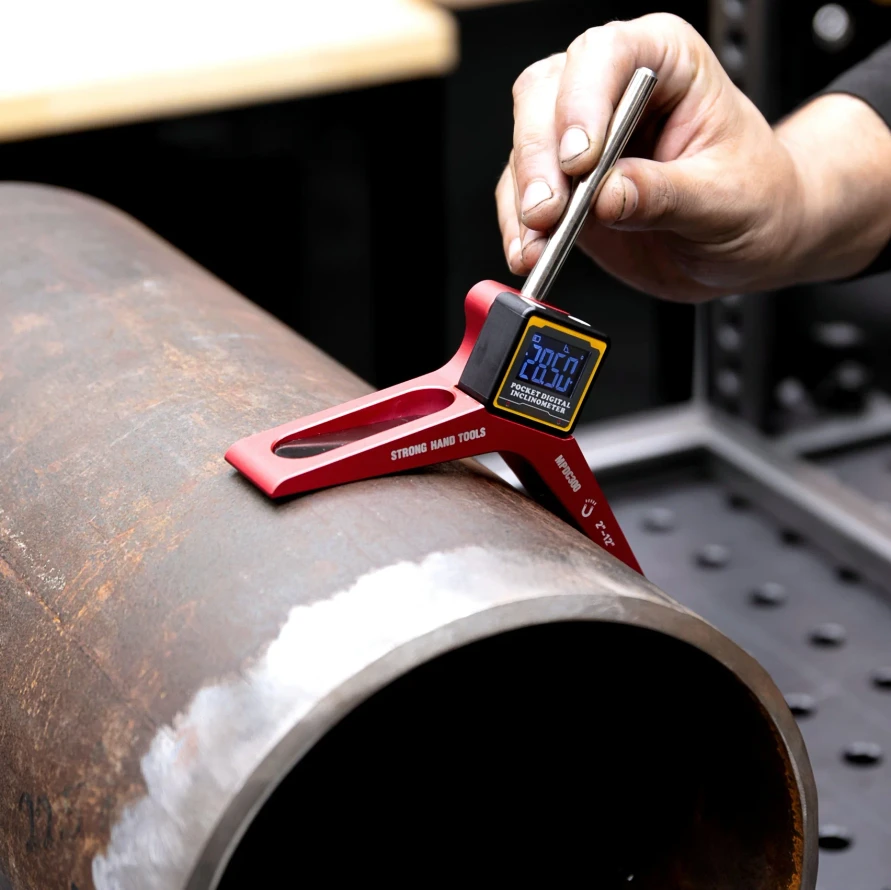

Integrated high-strength magnets help secure the SHT-MPDC300 to compatible steel pipe surfaces during measurement and marking. The magnetic hold keeps the tool stable while allowing the operator to focus on reading the display and marking the workpiece.

Maximum Magnetic Hold: Up to 5.5 lb.

Common Applications

• Pipe layout
• Pipe center finding
• TDC (Top Dead Center) location
• BDC (Bottom Dead Center) location
• Pipe angle measurement
• Pipe fitting and fit-up
• Weld preparation
• Pipe alignment
• Cutting layout
• Fabrication and assembly
• Comparative angle measurements
• Slope layout

Product Dimensions

What's Included?

• Strong Hand Tools SHT-MPDC300 Digital Magnetic Pipe Centering Head
• Integrated digital angle display
• Precision center marking pin

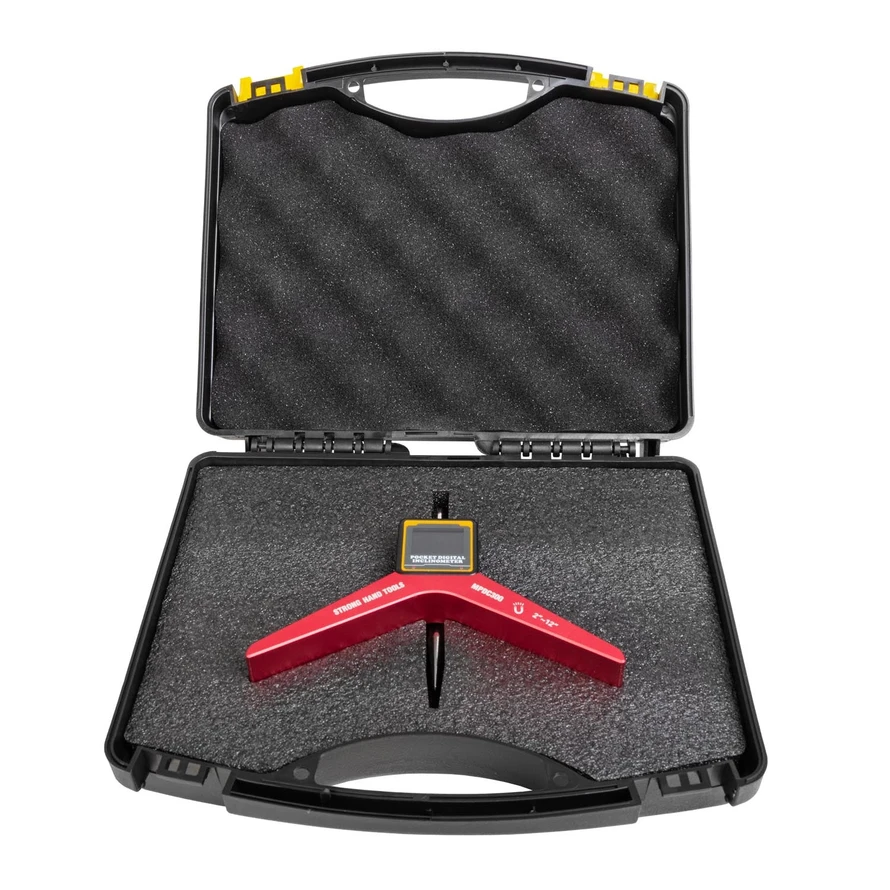

• Heavy-duty protective hard carrying case

Frequently Asked Questions

What is the SHT-MPDC300 used for?
The SHT-MPDC300 is designed for pipe layout, center finding, angle measurement, alignment, fit-up, and weld preparation. It combines a pipe centering tool and digital angle gauge into one tool.

What pipe sizes does it fit?
Strong Hand Tools specifies the SHT-MPDC300 for pipe diameters from 2" to 12".

How accurate is the digital angle display?
The digital display provides angle measurements with an accuracy of ±0.2°.

Can it find Top Dead Center?
Yes. The SHT-MPDC300 is designed to help locate TDC (Top Dead Center) and BDC (Bottom Dead Center) during pipe layout.

What is the difference between Absolute and Relative mode?
Absolute mode provides an angle measurement based on the established tool reference. Relative mode allows you to create a custom zero point and compare subsequent measurements against that reference.

Does it have a Data Hold function?
Yes. Data Hold freezes the current measurement on the display so it can be viewed or recorded more easily.

Does the SHT-MPDC300 turn itself off?
Yes. The tool automatically powers off after approximately 3 minutes to help conserve battery life.

Will it stick to the pipe?
The SHT-MPDC300 uses integrated magnets to attach to compatible steel pipe surfaces and provides up to 5.5 lb of magnetic holding force.

Is a carrying case included?
Yes. A heavy-duty protective hard carrying case is included for storage and transportation.

What is the tool made from?
The SHT-MPDC300 is manufactured from precision-machined anodized aluminum for durability in fabrication and jobsite environments.
