Magnetic Pipe Centering Head

Mark center lines and pipe angles with precision—fast, accurate, and repeatable.

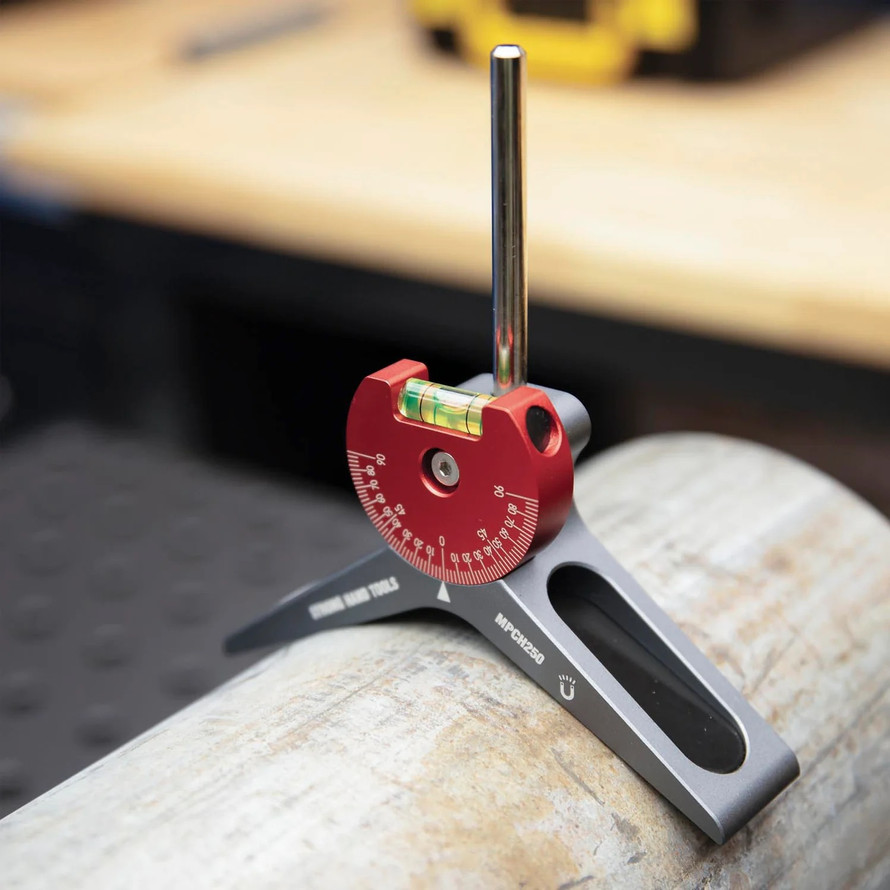

The Magnetic Pipe Centering Head is designed to simplify pipe layout and alignment for welders, fitters, and fabricators. Built for pipes from 2" to 10" in diameter, this tool helps accurately mark center points on both the interior and exterior of pipe.

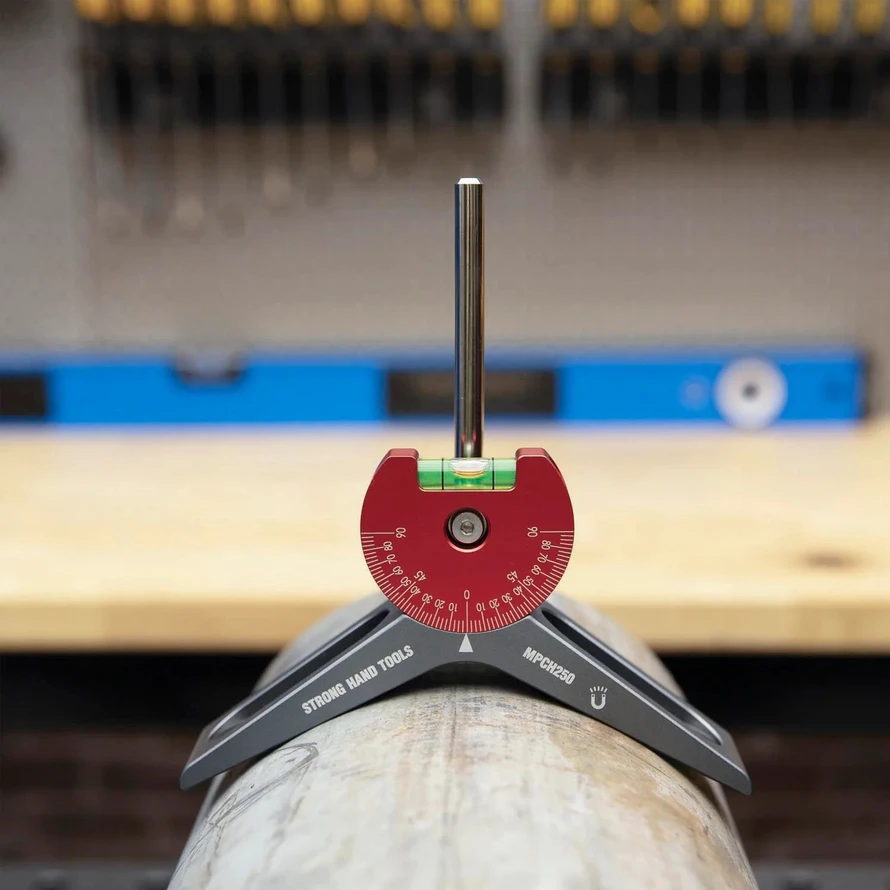

With a rotatable degree dial, integrated vial, and magnetic mounting system, it provides a fast and reliable way to identify critical angles such as top dead center and bottom dead center.

Why Fabricators Use the Pipe Centering Head

• Accurate Pipe Layout: Quickly mark center lines and reference points
• Precise Angle Measurement: Graduated in 2.5° increments
• Magnetic Positioning: Holds securely to steel pipe surfaces
• Portable & Durable: Includes protective hard case for transport

Key Features

• Designed for 2" – 10" diameter pipe
• Marks center points on interior and exterior pipe surfaces
• Adjustable dial bubble protractor for accurate angle readings
• Graduated in 2.5° increments
• 360° rotating degree dial with integrated vial
• Integrated magnets for hands-free positioning
• Machined aluminum construction with anodized finish

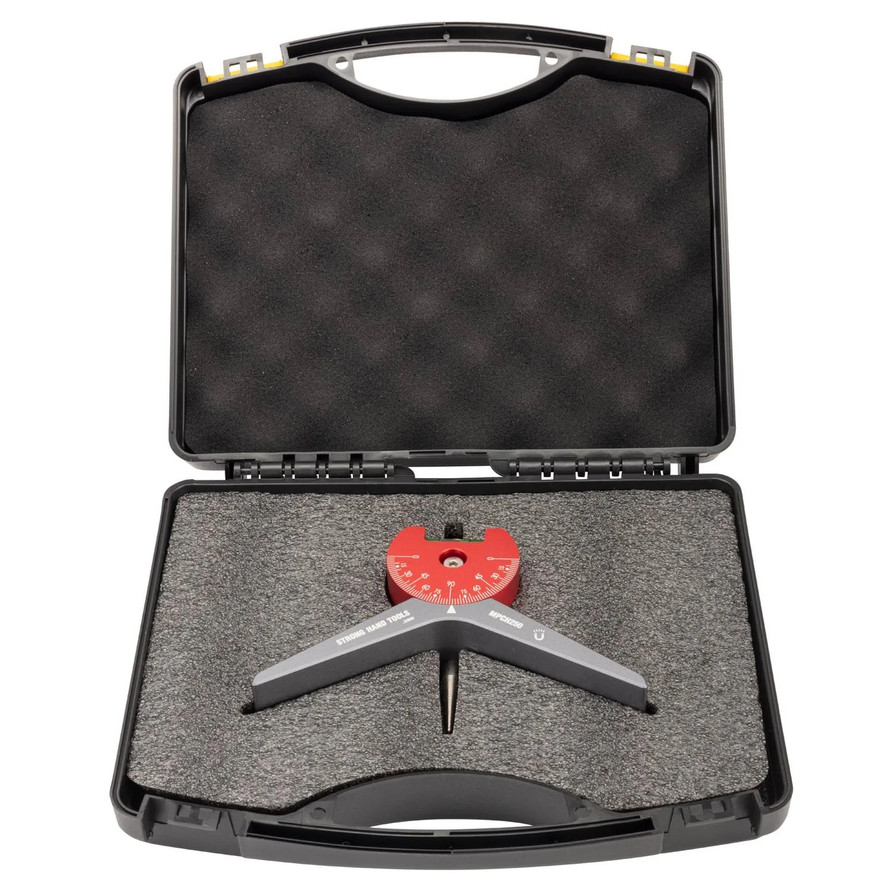

What’s Included

• Magnetic Pipe Centering Head
• Protective hard case

Ideal For

• Pipe welding and fabrication
• Pipe layout and fit-up
• Identifying top dead center and bottom dead center
• Field or shop pipe work

Frequently Asked Questions

What size pipe does this work with?
It is designed for pipe diameters from 2" to 10".

What is a pipe centering head used for?
It is used to mark center lines and identify precise pipe angles for layout and fit-up.

How accurate is the angle measurement?
The dial is graduated in 2.5° increments for precise positioning.

Does it stay attached to the pipe?
Yes. Integrated magnets allow the tool to hold securely to steel pipe surfaces.

Is it portable?
Yes. A protective hard case is included for storage and transport.
