Arc-Zone Pro

Monster10 Gas Lens Kit: 17, 18, 26 & 3 Series

(No reviews yet) Write a Review
MPN:
A-MN10-3-116X2
Minimum Purchase:
1 unit
  • Arc-Zone Pro Monster10 Gas Lens Kit: 17, 18, 26 & 3 Series
  • Arc-Zone Pro Monster10 Gas Lens Kit: 17, 18, 26 & 3 Series
  • Arc-Zone Pro Monster10 Gas Lens Kit: 17, 18, 26 & 3 Series
$62.00

Description

Monster10™ Cup Kit - for 17/3 Series Torches

Monster10™ Nozzle & Gas Lens Kit. #10 = 5/8" (15.9mm) Gas Orifice x 1" (25.4mm) Long.

Monster™ TIG welding cups are engineered to deliver a coherent stream of shielding gas allowing a longer tungsten stick-out for improved visibility, weld-quality and consistency.  Monster™ nozzles are used by top metal fabricators worldwide!

Kit Includes:

Part # A-MN10-3-116X2 A-MN10-3-332X2
Monster10™ Cup
w/ Varying Mesh Diffuser
2 2
Gas Lens 1/16" (1.6mm) 3/32" (2.4mm)
Wedge Collet 1/16" (1.6mm) 3/32" (2.4mm)
Teflon Insulator 1 1
Short Back Cap 1 1
Medium Back Cap 1 1

Note: To ensure optimal performance all Monster™ nozzle kits are built with Arc-Zone's Performance Proven™ TIG torch parts.

  • Monster10™ nozzles are made of durable, non-reactive ZTA (Zirconia Toughened Alumina) ceramic with 316L stainless steel gas diffuser installed
  • Thread-on design securely seals to Teflon heat shield, No o-rings, No gas leaks, No high-freq arc-outs, No drama
  • Flow-tested Gas Lens Collet Body
  • Leak-tested Medium Back Cap
  • Leak-tested Short Back Cap
  • Heavy-Duty Wedge Collet
  • High Heat Glass Filled Teflon Insulator
    ***TIG Torch shown is Not Included and Sold Separately***

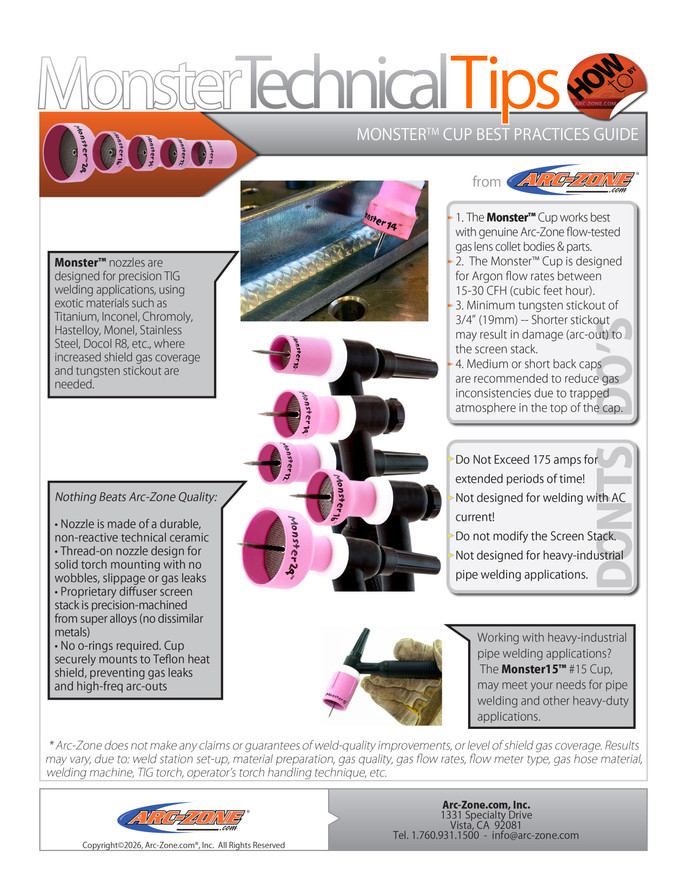

Monster™ Cup Best Practices, Set-Up Tips, Do's & Don'ts!

  • The Monster™ Cup works best with Arc-Zone's high-quality gas lens collet bodies
  • The Monster™ Cup is designed for Argon flow rates between 15-30 CFH (cubic feet hour)
  • Do Not Exceed 175 amps for extended periods of time!
  • The Monster™ Cup is Not designed for welding with AC current!
  • Minimum tungsten stickout of 3/4" (19mm) -- Shorter stickout may result in damage to the screen stack
  • Use a medium or short back cap ONLY.  (Long back caps are known to trap atmosphere in the top of the cap)
  • Do not adjust the positioning, or modify the screen stack in any way

Monster™ nozzles are designed for precision TIG welding applications where increased shield gas coverage and tungsten stickout are needed. They are not designed for heavy-industrial pipe welding applications.

Arc-Zone does not make any claims or guarantees of weld-quality improvements, or level of shield gas coverage. Results may vary, due to: weld station set-up, material preparation, gas quality, gas flow rates, flow meter type, gas hose material, welding machine, TIG torch, operator’s torch handling technique, etc.

Compatible with popular TIG torch models including: A150 (WP-17), W350 (WP-18), A200 (WP-26), W400 (CS410) and CK 3 Series TIG torches.
