Arc-Zone Pro

Monster16 Gas Lens Kit: 17, 18, 26 & 3 Series, Buy 2 Cups & SAVE

(7 reviews) Write a Review
MPN:
A-MN16-3-116
Minimum Purchase:
1 unit
  • Arc-Zone Pro Monster16 Gas Lens Kit: 17, 18, 26 & 3 Series, Buy 2 Cups & SAVE
  • Arc-Zone Pro Monster16 Gas Lens Kit: 17, 18, 26 & 3 Series, Buy 2 Cups & SAVE
  • Arc-Zone Pro Monster16 Gas Lens Kit: 17, 18, 26 & 3 Series, Buy 2 Cups & SAVE
  • Arc-Zone Pro Monster16 Gas Lens Kit: 17, 18, 26 & 3 Series, Buy 2 Cups & SAVE
  • Arc-Zone Pro Monster16 Gas Lens Kit: 17, 18, 26 & 3 Series, Buy 2 Cups & SAVE
  • Arc-Zone Pro Monster16 Gas Lens Kit: 17, 18, 26 & 3 Series, Buy 2 Cups & SAVE
  • Arc-Zone Pro Monster16 Gas Lens Kit: 17, 18, 26 & 3 Series, Buy 2 Cups & SAVE
  • Arc-Zone Pro Monster16 Gas Lens Kit: 17, 18, 26 & 3 Series, Buy 2 Cups & SAVE
$52.95 - $80.95

Description

Monster16™ Cup Kit (17/3 Series Torches) SAVE Over $20 When You Purchase 2 Cups With Your Gas Lens Kit
(Select Electrode Size & Quantity From Options Above)

Monster16™ Nozzle & Gas Lens Kit. #16 = 1" (25.4mm) Gas Orifice x 1-1/8" (28.5mm) Long. Engineered to deliver a coherent stream of shielding gas for improved weld-quality and consistency.

If you're welding exotic materials such as Titanium, Inconel, Hastelloy, Monel, Stainless Steel, Chromoly, Docol R8, etc., then these cups may be exactly what you need to improve gas coverage, arc stability, tungsten stick-out, and visibility. Monster™ Nozzles are used by top metal fabricators worldwide!

Kit Includes:

Part # A-MN16-3-116 A-MN16-3-116X2 A-MN16-3-332 A-MN16-3-332X2
Monster16™ Cup
w/ Varying Mesh Diffuser
1 2
(20% Savings)
1 2
(20% Savings)
Gas Lens 1/16" (1.6mm) 1/16" (1.6mm) 3/32" (2.4mm) 3/32" (2.4mm)
Wedge Collet 1/16" (1.6mm) 1/16" (1.6mm) 3/32" (2.4mm) 3/32" (2.4mm)
Teflon Insulator 1 1 1 1
Short Back Cap 1 1 1 1
Medium Back Cap 1 1 1 1














Note: To ensure optimal performance all Monster™ nozzle kits are built with Arc-Zone's Performance Proven™ TIG torch parts.

  • Monster16™ nozzles are made of durable, non-reactive ZTA (Zirconia Toughened Alumina) ceramic with 316L stainless steel gas diffuser installed
  • Thread-on design securely seals to Teflon heat shield, No o-rings, No gas leaks, No high-freq arc-outs, No drama
  • Flow-tested Gas Lens Collet Body
  • Leak-tested Medium Back Cap
  • Leak-tested Short Back Cap
  • Heavy-Duty Wedge Collet
  • High Heat Glass Filled Teflon Insulator

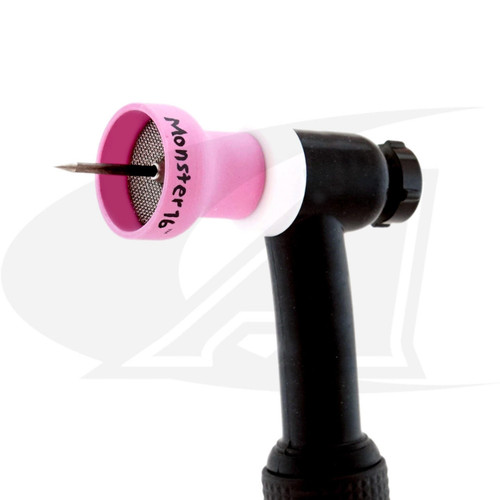

    ***TIG Torch shown is Not Included and Sold Separately***

Monster™ Cup Best Practices, Set-Up Tips, Do's & Don'ts!

  • The Monster™ Cup works best with Arc-Zone's high-quality gas lens collet bodies
  • The Monster™ Cup is designed for Argon flow rates between 15-30 CFH (cubic feet hour)
  • Do Not Exceed 175 amps for extended periods of time!
  • The Monster™ Cup is Not designed for welding with AC current!
  • Minimum tungsten stickout of 3/4" (19mm) -- Shorter stickout may result in damage to the screen stack
  • Use a medium or short back cap ONLY. (Long back caps are known to trap atmosphere in the top of the cap)
  • Do not adjust the positioning, or modify the Screen Stack in any way

Monster™ nozzles are designed for precision TIG welding applications where increased shield gas coverage and tungsten stickout are needed. They are not designed for heavy-industrial pipe welding applications.

Arc-Zone does not make any claims or guarantees of weld-quality improvements, or level of shield gas coverage. Results may vary, due to: weld station set-up, material preparation, gas quality, gas flow rates, flow meter type, gas hose material, welding machine, TIG torch, operator’s torch handling technique, etc.

Compatible with popular TIG torch models including: A150 (WP-17), W350 (WP-18), A200 (WP-26), W400 (CS410) and CK 3 Series TIG torches.

View AllClose

Additional Information

Parts & Accessories:
Single Size Parts Kits
Parts Style:
Monster
Torch Model:
17 Style
Torch Model:
18 Style
Torch Model:
26 Style
Torch Model:
CS410
Torch Model:
CK-150
Torch Model:
CK-210 / TL210
Torch Model:
CK-300 / TL300
Torch Model:
CK-510
Torch Model:
23 Style Machine Torch
Weld Type:
TIG
Category:
Replacement Parts
View AllClose

7 Reviews

  • 5

    Awesome coverage my stainless tubes that i had to…

    Posted by Daniel G. on Mar 1st 2021

    Awesome coverage my stainless tubes that i had to do came out flawless excellent cups. The stubby gas lens allows me to get in to small spaces with the large stick out i needed for the inside corner joints.

  • 1

    The gas coverage with this Monster cup is great.…

    Posted by Bryan H. on Aug 23rd 2020

    The gas coverage with this Monster cup is great. Being able to have a longer stick out is a big help in some applications.

  • 5

    This lens made a huge improvement on my aluminum…

    Posted by Zachary S. on Apr 14th 2020

    This lens made a huge improvement on my aluminum welds. Highly recommended!!

  • 5

    Awesome pices here really well built and thought…

    Posted by austyn m. on Jan 7th 2019

    Awesome pices here really well built and thought up no complaints

  • 5

    Love it never catches on my weld. Blah blah blah…

    Posted by Jeremiah H. on Jul 25th 2018

    Love it never catches on my weld. Blah blah blah blah blah

  • 5

    Best rig cups I own. Check our Instagram for pics…

    Posted by Laela H. on Jul 31st 2017

    Best rig cups I own. Check our Instagram for pics and videos of use! DUGZweldingcaps

  • 5

    Amazing gas coverage especially on outside…

    Posted by James F. on Jan 26th 2017

    Amazing gas coverage especially on outside corners! Even with an 1" or more of tungsten stick out the arc starts super crisp. These nozzles are bullet proof, Ive dropped mine a couple times and it bounces back with no damage!
