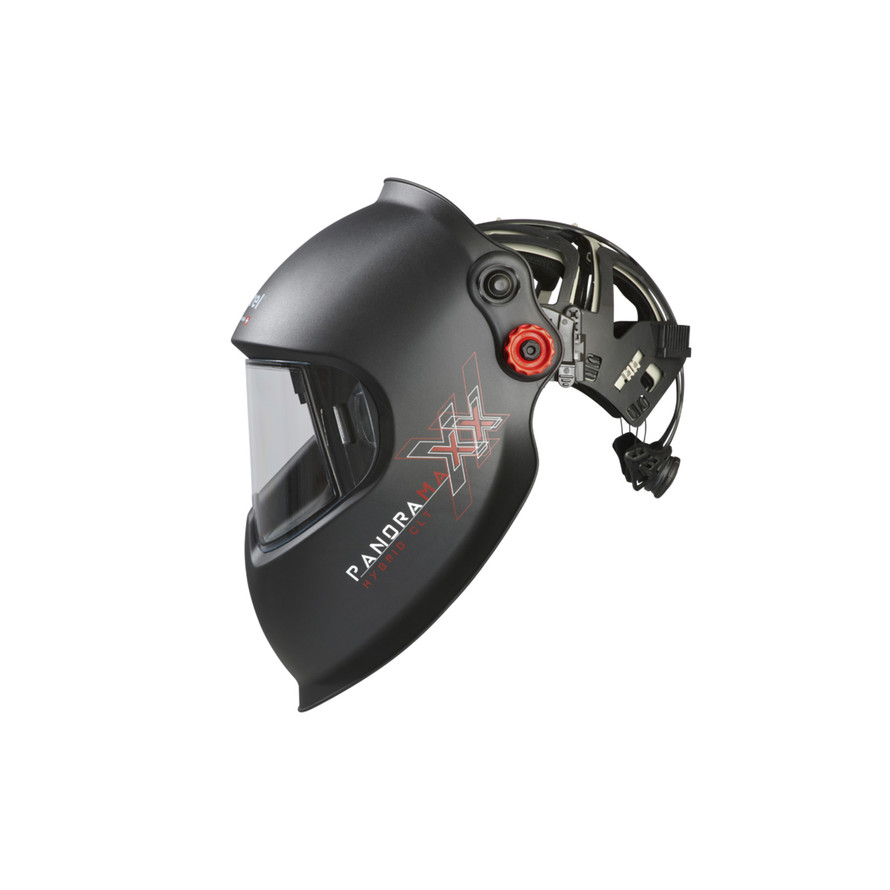

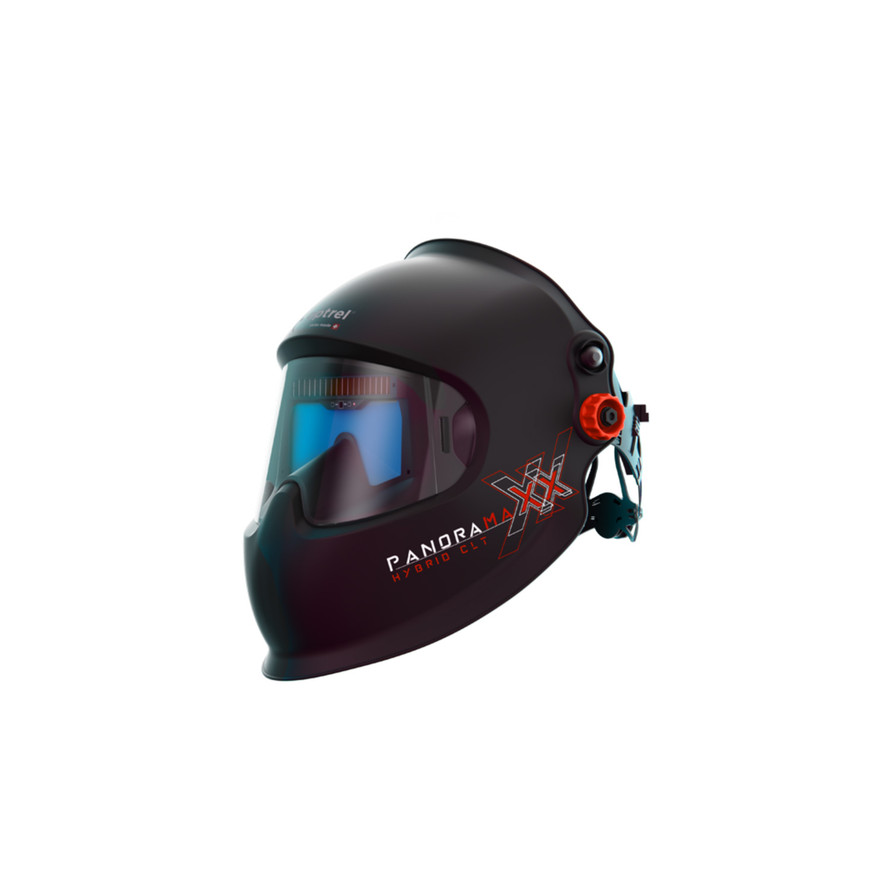

Optrel® Panoramaxx Hybrid CLT Laser Welding Helmet

The ultimate combination of laser protection, Crystal Lens Technology, and panoramic visibility.
The Optrel® Panoramaxx Hybrid CLT Laser Welding Helmet combines certified laser protection with Optrel's premium Crystal Lens Technology (CLT), ShadeTronic® auto-darkening, and panoramic XXL field of view. Designed for laser welding and conventional welding applications, it delivers exceptional optical clarity, true color recognition, and all-day comfort.

Built for professionals who demand the highest level of visibility and protection, the Panoramaxx Hybrid CLT provides an unmatched welding experience while maintaining certified laser safety.

Why Professionals Choose the Panoramaxx Hybrid CLT

• Crystal Lens Technology 2.0: Industry-leading optical clarity and color accuracy
• Laser & Welding Protection: One helmet for laser and conventional welding processes
• Panoramic XXL View: Up to 6x larger field of vision than traditional helmets
• Automatic Shade Control: ShadeTronic® automatically adjusts shade levels

Key Features

• Crystal Lens Technology (CLT) 2.0
• Laser protection for 1030–1100 nm applications
• Panoramic XXL field of view
• True Color viewing technology
• ShadeTronic® automatic shade adjustment
• FadeTronic® fade control technology
• Five arc sensors with Super High sensitivity
• Grinding mode
• Sensitivity regulation
• Delay function control
• Anti-glare technology
• Rechargeable battery with Micro-USB charging
• IsoFit® headgear system
• Hard hat adapter compatible
• Position Locker system
• Patented Excenter adjustment mechanism
• Lightweight ergonomic design

Shade & Lens Performance

• Inactive State: Shade 2.5
• Manual Welding Shades: Shade 3–8
• ShadeTronic® Range: Shade 4–12
• Optical Classification: EN379 1/1/1/1

Laser Protection

• Laser wavelength range: 1030–1100 nm
• Maximum UV/IR protection at all shade levels
• Certified to CE, ANSI Z87.1, CSA Z94.3, AS/NZS 1337.1, and AS/NZS 1338.1 standards

Applications

• Laser welding
• Laser-assisted manufacturing
• MIG/MAG (GMAW)
• TIG Welding (GTAW)
• Stick Welding (SMAW)
• Flux-Cored Welding
• Plasma Arc Welding
• Plasma Cutting
• Gas Welding
• Grinding Operations

What’s Included

• Panoramaxx Hybrid CLT Black Laser Welding Helmet
• Optrel® IsoFit® Headgear
• Micro-USB Charging Cable
• Storage Bag
• Front Cover Lens
• Operating Instructions
• Warranty Documentation

Warranty

• 2-Year Manufacturer Warranty
• Additional 1-Year Warranty Extension Available Upon Registration

Frequently Asked Questions

What is Crystal Lens Technology (CLT) 2.0?
CLT 2.0 delivers exceptional optical clarity and true color recognition, providing one of the clearest views available in a welding helmet.

What is the difference between the Hybrid and Hybrid CLT?
The Hybrid CLT includes Optrel's Crystal Lens Technology 2.0 for improved visual clarity and an upgraded EN379 1/1/1/1 optical rating.

What laser wavelength range is supported?
The helmet is certified for laser applications in the 1030–1100 nm range.

Does the helmet automatically adjust shade levels?
Yes. ShadeTronic® technology automatically adjusts the shade level based on welding conditions.

Can it be used for grinding?
Yes. The Panoramaxx Hybrid CLT includes a dedicated grinding mode.

Is it rechargeable?
Yes. It features a rechargeable Li-Polymer battery with Micro-USB charging capability.
